| Kód: | E9-AXXXG |
|---|---|
| Výrobce: | Southco |
| Ceny: | jsou uvedeny dole na stránce v tabulce variant produktu, nebo na poptávku přes formulář níže. |
| Termín dodání: | běžně cca 7 až 10 dnů od objednání, v závislosti na množství a aktuálních zásobách. Konkrétní termíny dodání ověřujeme a potvrzujeme emailem, individuálně dle zakázky. V případě nedostupnosti zboží lze objednávku zrušit. Více informací. |
Publikováno:

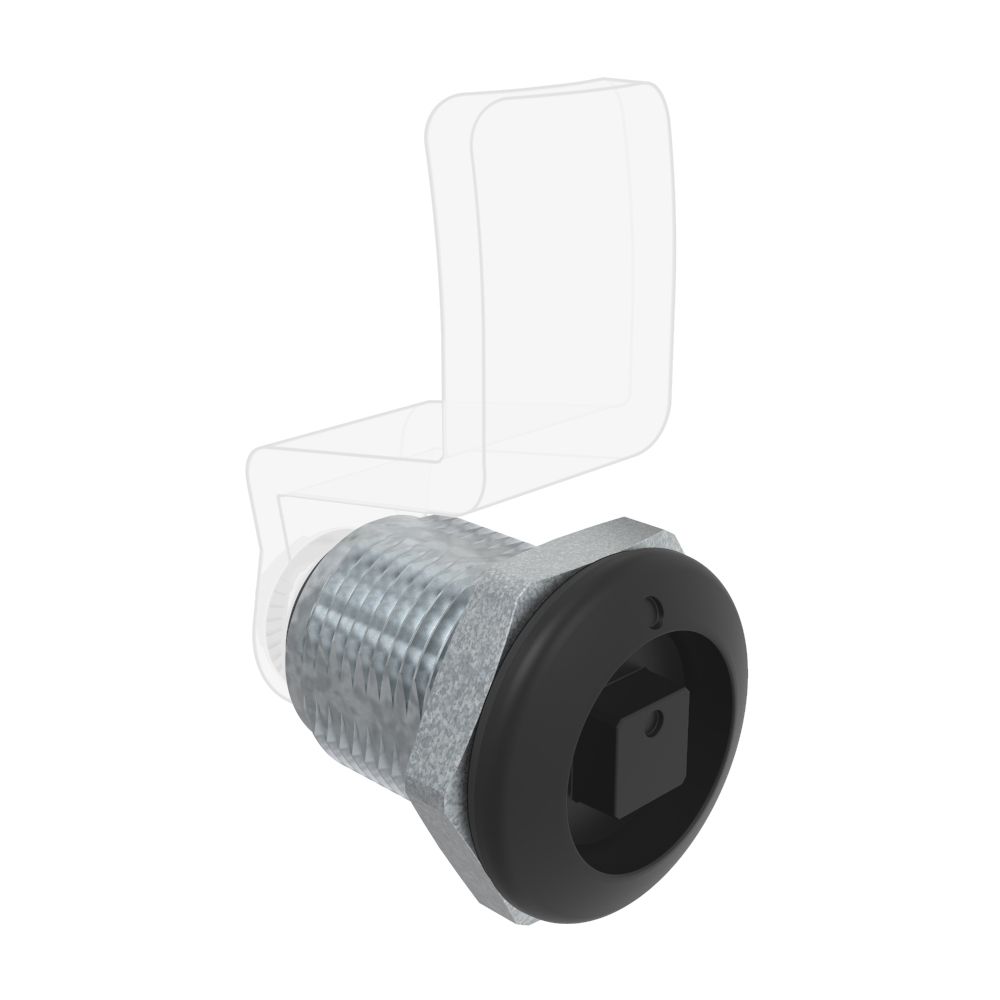

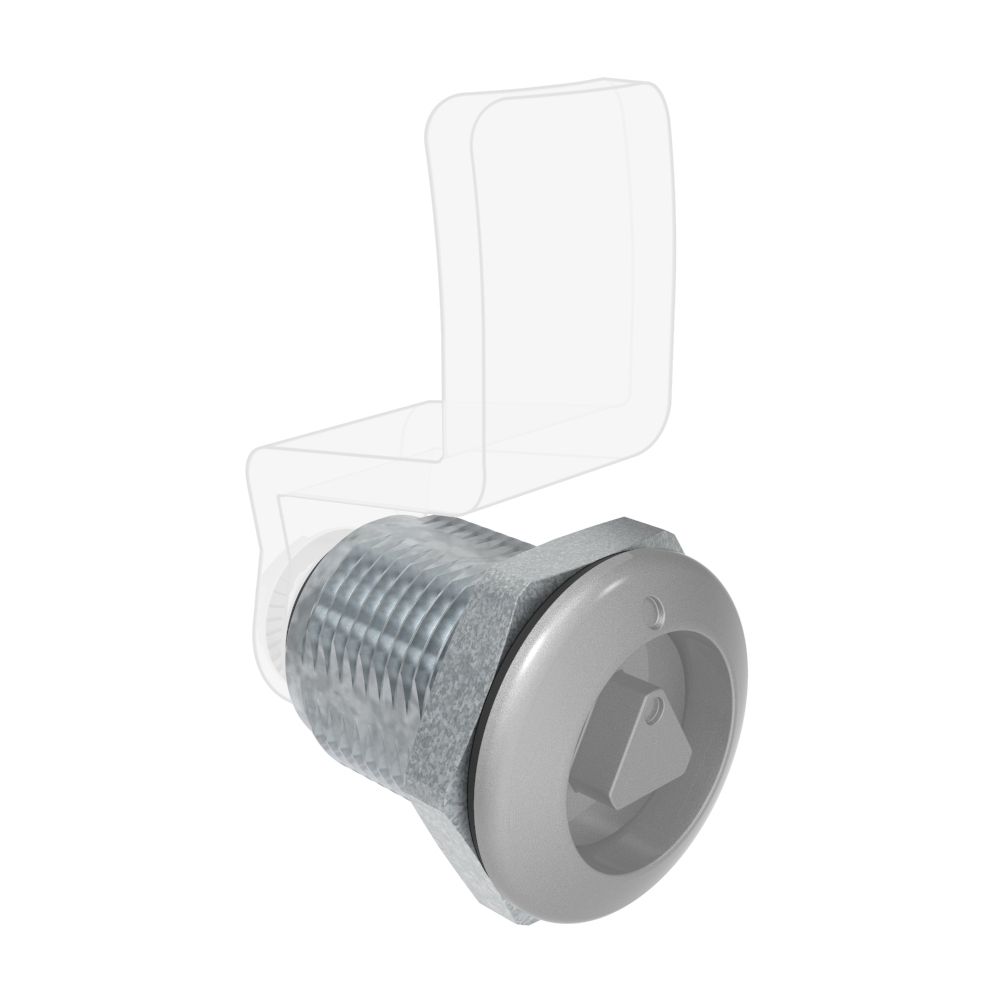

Společnost Southco představila novou řadu kompresních zámků, které byly optimalizovány tak, aby poskytovaly jednoduché a cenově dostupné řešení pro aplikace na uzávěry, které vyžadují základní kompresi. Kompresní zámek E9 Quarter-Turn kombinuje osvědčené ovládání o 90 stupňů z řady E5 Cam Latch s lehkou kompresí, což jej činí vhodným pro širokou škálu průmyslových aplikací, včetně autobusů, kolejových vozidel a průmyslových strojů.
| Objednací kód | Základní cena bez DPH | Objednat | Material | Size | Mounting | Finish | Color/Appearance | Head Style | Grip Type | Max Outer Panel Thickness | Min. Outer Panel Thickness | Cam Attached | Rotation | Series | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E9-A000G-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | Slotted Recess | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A000G-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | Slotted Recess | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A001G-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 8 mm Hex Recess | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A001G-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 8 mm Hex Recess | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A002G-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 7 mm Triangle | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A002G-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 7 mm Triangle | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A003G-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 8 mm Triangle | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A003G-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 8 mm Triangle | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A004G-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 7 mm Square | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A004G-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 7 mm Square | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A005G-01 | na dotaz | Zinc Alloy | 20.1 mm | Powder Coat | Black | 8 mm Square | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | |||
| E9-A005G-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 8 mm Square | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A006G-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 3 mm Double Bitted Recess | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A006G-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 3 mm Double Bitted Recess | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A007G-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 5 mm Double Bitted Recess | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| Objednací kód | Základní cena bez DPH | Objednat | Material | Size | Mounting | Finish | Color/Appearance | Head Style | Grip Type | Max Outer Panel Thickness | Min. Outer Panel Thickness | Cam Attached | Rotation | Series | CAD |
| E9-A007G-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 5 mm Double Bitted Recess | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A008G-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 8 mm Square Recess | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A008G-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 8 mm Square Recess | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A010G-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | Bellcore 216 | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A010G-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | Bellcore 216 | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A011G-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | Bellcore Electronics | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A011G-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | Bellcore Electronics | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A012G-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | Railway Standard | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| E9-A012G-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | Railway Standard | Fixed | 18mm | 0mm | No | Type B – Turn Counter-Clockwise to Latch | Standard | ||
| Uvedené ceny jsou základní při odběru od 1 ks. V případě většího množství Vám vypracujeme individuální cenovou nabídku. | |||||||||||||||
