Aretační čepy ovládané páčkou bez nákružku, hladké
Popis produktu
| Kód: | 03099-11 |
|---|---|
| Výrobca: | norelem |
| Ceny: | sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásielok dĺžky nad 1,7m zohľadňujeme podľa skutočných hodnôt a dodatočne, pokiaľ je to nutné upravujeme. |
zavřít
zavřít
Na stiahnutie
Datový list 03099–11 Aretační čepy ovládané páčkou bez nákružku, hladké
Detail zavřít
| Objednávací kód | Základná cena bez DPH | Objednať | Provedení | Barva komponenty | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW | F x 30° | Síla pružiny začátek F1 cca N | Síla pružiny konec F2 cca N | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 03099-11-040410 | 12,20 € | A | – | 4 | M10 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | – | 1 | 8 | 14 | ||
| 03099-11-0404101 | 12,20 € | A | – | 4 | M10×1 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | – | 1 | 8 | 14 | ||
| 03099-11-040510 | 12,20 € | A | – | 5 | M10 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | – | 1.3 | 8 | 14 | ||
| 03099-11-0405101 | 12,20 € | A | – | 5 | M10×1 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | – | 1.3 | 8 | 14 | ||
| 03099-11-040610 | 12,20 € | A | – | 6 | M10 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | – | 1.8 | 8 | 14 | ||
| 03099-11-0406101 | 12,20 € | A | – | 6 | M10×1 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | – | 1.8 | 8 | 14 | ||
| 03099-11-040512 | 12,38 € | A | – | 5 | M12 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | – | 1.3 | 8 | 15 | ||
| 03099-11-0405121 | 12,38 € | A | – | 5 | M12×1,5 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | – | 1.3 | 8 | 15 | ||
| 03099-11-040612 | 12,38 € | A | – | 6 | M12 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | – | 1.8 | 8 | 15 | ||
| 03099-11-0406121 | 12,38 € | A | – | 6 | M12×1,5 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | – | 1.8 | 8 | 15 | ||
| 03099-11-040812 | 12,38 € | A | – | 8 | M12 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | – | 2.3 | 8 | 15 | ||
| 03099-11-0408121 | 12,38 € | A | – | 8 | M12×1,5 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | – | 2.3 | 8 | 15 | ||
| 03099-11-040616 | 14,86 € | A | – | 6 | M16 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | – | 1.8 | 15 | 35 | ||
| 03099-11-0406161 | 14,86 € | A | – | 6 | M16×1,5 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | – | 1.8 | 15 | 35 | ||
| 03099-11-040816 | 14,86 € | A | – | 8 | M16 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | – | 2.3 | 15 | 35 | ||
| Objednávací kód | Základná cena bez DPH | Objednať | Provedení | Barva komponenty | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW | F x 30° | Síla pružiny začátek F1 cca N | Síla pružiny konec F2 cca N | CAD |
| 03099-11-0408161 | 14,86 € | A | – | 8 | M16×1,5 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | – | 2.3 | 15 | 35 | ||
| 03099-11-041016 | 14,86 € | A | – | 10 | M16 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | – | 2.8 | 15 | 35 | ||
| 03099-11-0410161 | 14,86 € | A | – | 10 | M16×1,5 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | – | 2.8 | 15 | 35 | ||
| 03099-11-040820 | 16,52 € | A | – | 8 | M20 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | – | 2.3 | 20 | 60 | ||
| 03099-11-0408201 | 16,52 € | A | – | 8 | M20×1,5 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | – | 2.3 | 20 | 60 | ||
| 03099-11-041020 | 16,52 € | A | – | 10 | M20 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | – | 2.8 | 20 | 60 | ||
| 03099-11-0410201 | 16,52 € | A | – | 10 | M20×1,5 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | – | 2.8 | 20 | 60 | ||
| 03099-11-041220 | 16,52 € | A | – | 12 | M20 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | – | 3 | 20 | 60 | ||
| 03099-11-0412201 | 16,52 € | A | – | 12 | M20×1,5 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | – | 3 | 20 | 60 | ||
| 03099-11-050410 | 12,32 € | B | – | 4 | M10 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | 17 | 1 | 8 | 14 | ||
| 03099-11-0504101 | 12,32 € | B | – | 4 | M10×1 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | 17 | 1 | 8 | 14 | ||
| 03099-11-050510 | 12,32 € | B | – | 5 | M10 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | 17 | 1.3 | 8 | 14 | ||
| 03099-11-0505101 | 12,32 € | B | – | 5 | M10×1 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | 17 | 1.3 | 8 | 14 | ||
| 03099-11-050610 | 12,32 € | B | – | 6 | M10 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | 17 | 1.8 | 8 | 14 | ||
| 03099-11-0506101 | 12,32 € | B | – | 6 | M10×1 | 10 | 38.5 | 25 | 20 | 9 | 3 | 6 | 17 | 1.8 | 8 | 14 | ||
| Objednávací kód | Základná cena bez DPH | Objednať | Provedení | Barva komponenty | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW | F x 30° | Síla pružiny začátek F1 cca N | Síla pružiny konec F2 cca N | CAD |
| 03099-11-050512 | 12,47 € | B | – | 5 | M12 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | 19 | 1.3 | 8 | 15 | ||
| 03099-11-0505121 | 12,47 € | B | – | 5 | M12×1,5 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | 19 | 1.3 | 8 | 15 | ||
| 03099-11-050612 | 12,47 € | B | – | 6 | M12 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | 19 | 1.8 | 8 | 15 | ||
| 03099-11-0506121 | 12,47 € | B | – | 6 | M12×1,5 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | 19 | 1.8 | 8 | 15 | ||
| 03099-11-050812 | 12,47 € | B | – | 8 | M12 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | 19 | 2.3 | 8 | 15 | ||
| 03099-11-0508121 | 12,47 € | B | – | 8 | M12×1,5 | 12 | 47.4 | 30 | 25 | 10.8 | 3.6 | 8 | 19 | 2.3 | 8 | 15 | ||
| 03099-11-050616 | 15,01 € | B | – | 6 | M16 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | 24 | 1.8 | 15 | 35 | ||
| 03099-11-0506161 | 15,01 € | B | – | 6 | M16×1,5 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | 24 | 1.8 | 15 | 35 | ||
| 03099-11-050816 | 15,01 € | B | – | 8 | M16 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | 24 | 2.3 | 15 | 35 | ||
| 03099-11-0508161 | 15,01 € | B | – | 8 | M16×1,5 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | 24 | 2.3 | 15 | 35 | ||
| 03099-11-051016 | 15,01 € | B | – | 10 | M16 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | 24 | 2.8 | 15 | 35 | ||
| 03099-11-0510161 | 15,01 € | B | – | 10 | M16×1,5 | 16 | 61.2 | 40 | 32 | 14.4 | 4.8 | 10 | 24 | 2.8 | 15 | 35 | ||
| 03099-11-050820 | 17,28 € | B | – | 8 | M20 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | 30 | 2.3 | 20 | 60 | ||
| 03099-11-0508201 | 17,28 € | B | – | 8 | M20×1,5 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | 30 | 2.3 | 20 | 60 | ||
| 03099-11-051020 | 17,28 € | B | – | 10 | M20 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | 30 | 2.8 | 20 | 60 | ||
| Objednávací kód | Základná cena bez DPH | Objednať | Provedení | Barva komponenty | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW | F x 30° | Síla pružiny začátek F1 cca N | Síla pružiny konec F2 cca N | CAD |
| 03099-11-0510201 | 17,28 € | B | – | 10 | M20×1,5 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | 30 | 2.8 | 20 | 60 | ||
| 03099-11-051220 | 17,28 € | B | – | 12 | M20 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | 30 | 3 | 20 | 60 | ||
| 03099-11-0512201 | 17,28 € | B | – | 12 | M20×1,5 | 20 | 71 | 50 | 35 | 18 | 6 | 12 | 30 | 3 | 20 | 60 | ||

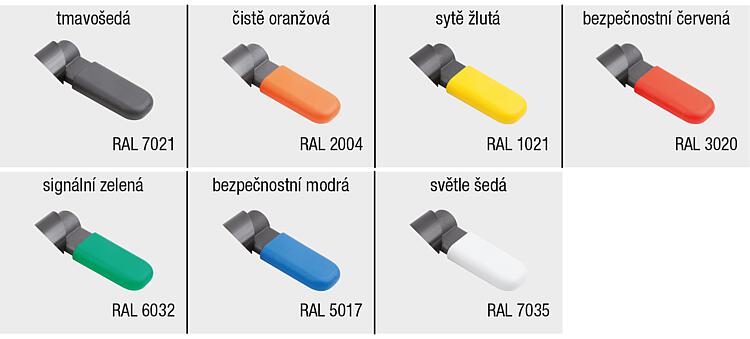

| 03099-11-060410 | 12,68 € | C | tmavošedá RAL 7021 | 4 | M10 | 10 | 39.5 | 26.3 | 20 | 10.9 | 4.9 | 6 | – | 1 | 8 | 14 | ||
| 03099-11-0604101 | 12,68 € | C | tmavošedá RAL 7021 | 4 | M10×1 | 10 | 39.5 | 26.3 | 20 | 10.9 | 4.9 | 6 | – | 1 | 8 | 14 | ||
| 03099-11-060510 | 12,68 € | C | tmavošedá RAL 7021 | 5 | M10 | 10 | 39.5 | 26.3 | 20 | 10.9 | 4.9 | 6 | – | 1.3 | 8 | 14 | ||
| 03099-11-0605101 | 12,68 € | C | tmavošedá RAL 7021 | 5 | M10×1 | 10 | 39.5 | 26.3 | 20 | 10.9 | 4.9 | 6 | – | 1.3 | 8 | 14 | ||
| 03099-11-060610 | 12,68 € | C | tmavošedá RAL 7021 | 6 | M10 | 10 | 39.5 | 26.3 | 20 | 10.9 | 4.9 | 6 | – | 1.8 | 8 | 14 | ||
| 03099-11-0606101 | 12,68 € | C | tmavošedá RAL 7021 | 6 | M10×1 | 10 | 39.5 | 26.3 | 20 | 10.9 | 4.9 | 6 | – | 1.8 | 8 | 14 | ||
| 03099-11-060512 | 12,94 € | C | tmavošedá RAL 7021 | 5 | M12 | 12 | 48.4 | 31.1 | 25 | 12.9 | 5.7 | 8 | – | 1.3 | 8 | 15 | ||
| 03099-11-0605121 | 12,94 € | C | tmavošedá RAL 7021 | 5 | M12×1,5 | 12 | 48.4 | 31.1 | 25 | 12.9 | 5.7 | 8 | – | 1.3 | 8 | 15 | ||
| 03099-11-060612 | 12,94 € | C | tmavošedá RAL 7021 | 6 | M12 | 12 | 48.4 | 31.1 | 25 | 12.9 | 5.7 | 8 | – | 1.8 | 8 | 15 | ||
| 03099-11-0606121 | 12,94 € | C | tmavošedá RAL 7021 | 6 | M12×1,5 | 12 | 48.4 | 31.1 | 25 | 12.9 | 5.7 | 8 | – | 1.8 | 8 | 15 | ||
| 03099-11-060812 | 12,94 € | C | tmavošedá RAL 7021 | 8 | M12 | 12 | 48.4 | 31.1 | 25 | 12.9 | 5.7 | 8 | – | 2.3 | 8 | 15 | ||
| 03099-11-0608121 | 12,94 € | C | tmavošedá RAL 7021 | 8 | M12×1,5 | 12 | 48.4 | 31.1 | 25 | 12.9 | 5.7 | 8 | – | 2.3 | 8 | 15 | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | ||||||||||||||||||
