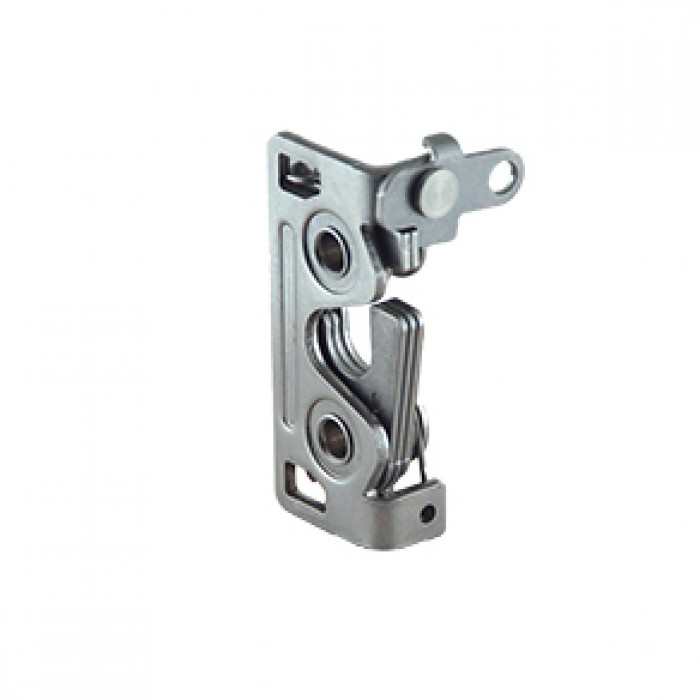

R4–30 – Rotačný uzávery

Popis tovaru

Kód:	R4-30
Výrobca:	Southco
Ceny:	sú uvedené dole na stránke v tabuľke variánt produktu alebo na dopyt cez formulár nižšie.
Termín dodania:	bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií.

zavřít

3D modely

JMÉNO:
E-MAIL:
WWW:
TEXT:

Díl – objednací číslo: R4-30 – Rotačný uzávery | R4-30
Formát 3D:

Specifikujte prosím do pole níže konkrétní objednací kód, ke kterému žádáte zaslat 3D model nebo si jej stáhněte z tabulky dostupných variant v dolní části stránky produktu a to tlačítkem 3D nebo Stáhnout.

Objednací kód: Firma: Jméno: Příjmení: E-mail: Telefon: Text:

Vážení zákazníci, informujeme vás v súlade s nariadením EÚ, že poskytnuté informácie nie sú nami ďalej nijako používané ani uschované a slúžia len na vybavenie tejto žiadosti. Viac informácií TU.

zavřít

Na stiahnutie

katalogový list

technický list

Priemyselné západky a uzávery, kde a ako ich použiť?

Publikované: 16. 2. 2021

V rámci konštrukčných návrhov skrine, nadstavby, krytu a ich prístupových riešení, je nutné vziať do úvahy aký vhodný typ zatvárania zvoliť a ktorý typ zámku alebo západky vybrať. Často sa tak stretávajú požiadavky na funkčnosť s požiadavkami na estetiku. Nájsť ideálne riešenie, ktoré splní oba parametre, potom vyžaduje dobrú znalosť ponúkaných komponentov a dostupných variantov.

Chcem sa dozvedieť viac o západkách a uzáveroch!

Detail zavřít

Zruš filter
Objednací kód	Základná cena bez DPH	Objednat	Mounting Hole	Operation	Material	Finish	Color/Appearance	Stage	Actuation	Application	Installation	Style	Size Series	CAD
R4-30-10-101-20	28,05 €		6.7 mm Thru	Perpendicular	Stainless Steel	Passivated	Natural	Single Stage						3D
R4-30-10-301-20	28,05 €		6.7 mm Thru	2-Point	Stainless Steel	Passivated	Natural	Single Stage						3D
R4-30-10-501-20	28,05 €		6.7 mm Thru	Bottom	Stainless Steel	Passivated	Natural	Single Stage						3D
R4-30-10-701-20	29,16 €		6.7 mm Thru	Dual Trigger, Perpendicular/Bottom	Stainless Steel	Passivated	Natural	Single Stage						3D
R4-30-11-101-20	28,05 €		1/4–20 Thread	Perpendicular	Stainless Steel	Passivated	Natural	Single Stage						3D
R4-30-11-301-20	28,05 €		1/4–20 Thread	2-Point	Stainless Steel	Passivated	Natural	Single Stage						3D
R4-30-11-501-20	28,05 €		1/4–20 Thread	Bottom	Stainless Steel	Passivated	Natural	Single Stage						3D
R4-30-11-701-20	29,16 €		1/4–20 Thread	Dual Trigger, Perpendicular/Bottom	Stainless Steel	Passivated	Natural	Single Stage						3D
R4-30-12-101-20	28,05 €		M6 Thread	Perpendicular	Stainless Steel	Passivated	Natural	Single Stage						3D
R4-30-12-301-20	28,05 €		M6 Thread	2-Point	Stainless Steel	Passivated	Natural	Single Stage						3D
R4-30-12-501-20	28,05 €		M6 Thread	Bottom	Stainless Steel	Passivated	Natural		Right Hand					3D
R4-30-12-701-20	29,16 €		M6 Thread	Dual Trigger, Perpendicular/Bottom	Stainless Steel	Passivated	Natural		Right Hand					3D
R4-30-20-101-20	28,05 €		6.7 mm Thru	Perpendicular	Stainless Steel	Passivated	Natural		Left Hand					3D
R4-30-20-301-20	28,05 €		6.7 mm Thru	2-Point	Stainless Steel	Passivated	Natural		Left Hand					3D
R4-30-20-501-20	28,05 €		6.7 mm Thru	Bottom	Stainless Steel	Passivated	Natural		Left Hand					3D
Objednací kód	Základná cena bez DPH	Objednat	Mounting Hole	Operation	Material	Finish	Color/Appearance	Stage	Actuation	Application	Installation	Style	Size Series	CAD
R4-30-20-701-20	29,16 €		6.7 mm Thru	Dual Trigger, Perpendicular/Bottom	Stainless Steel	Passivated	Natural		Left Hand					3D
R4-30-21-101-20	28,05 €		1/4–20 Thread	Perpendicular	Stainless Steel	Passivated	Natural		Left Hand					3D
R4-30-21-301-20	28,05 €		1/4–20 Thread	2-Point	Stainless Steel	Passivated	Natural		Left Hand					3D
R4-30-21-501-20	28,05 €		1/4–20 Thread	Bottom	Stainless Steel	Passivated	Natural		Left Hand					3D
R4-30-21-701-20	29,16 €		1/4–20 Thread	Dual Trigger, Perpendicular/Bottom	Stainless Steel	Passivated	Natural		Left Hand					3D
R4-30-22-101-20	28,05 €		M6 Thread	Perpendicular	Stainless Steel		Natural	Single Stage	Left Hand					3D
R4-30-22-301-20	28,05 €		M6 Thread	2-Point	Stainless Steel		Natural	Single Stage	Left Hand					3D
R4-30-22-501-20	28,05 €		M6 Thread	Bottom	Stainless Steel		Natural	Single Stage	Left Hand					3D
R4-30-22-701-20	29,16 €		6.7 mm Thru	Perpendicular	Stainless Steel		Natural	Two Stage	–		Marine			3D
R4-30-30-101-20	29,22 €		6.7 mm Thru	2-Point	Stainless Steel		Natural	Two Stage	–	Marine				3D
R4-30-30-301-20	29,22 €		6.7 mm Thru	Bottom	Stainless Steel		Natural	Two Stage	–	Marine				3D
R4-30-30-501-20	29,22 €		6.7 mm Thru	Dual Trigger, Perpendicular/Bottom	Stainless Steel		Natural	Two Stage	Right Hand	–				3D
R4-30-30-701-20	30,27 €		1/4–20 Thread	Perpendicular	Stainless Steel		Natural	Two Stage	–	Marine				3D
R4-30-31-101-20	29,22 €		1/4–20 Thread	2-Point	Stainless Steel		Natural	Two Stage	–	Marine				3D
R4-30-31-301-20	29,22 €		1/4–20 Thread	Bottom	Stainless Steel		Natural	Two Stage	–	Marine				3D
Objednací kód	Základná cena bez DPH	Objednat	Mounting Hole	Operation	Material	Finish	Color/Appearance	Stage	Actuation	Application	Installation	Style	Size Series	CAD
R4-30-31-501-20	29,22 €		1/4–20 Thread	Bottom	Stainless Steel		Natural		–	Marine				3D
R4-30-31-701-20	30,27 €		1/4–20 Thread	Dual Trigger, Perpendicular/Bottom	Stainless Steel		Bright	Two Stage	Right Hand	–				3D
R4-30-32-101-20	29,22 €		M6 Thread	Perpendicular	Stainless Steel		Natural		–	Marine				3D
R4-30-32-301-20	29,22 €		M6 Thread	2-Point	Stainless Steel		Natural		–	Marine				3D
R4-30-32-501-20	29,22 €		M6 Thread	Bottom	Stainless Steel		Natural		–	Marine				3D
R4-30-32-701-20	30,27 €		M6 Thread	Dual Trigger, Perpendicular/Bottom	Stainless Steel		Bright		Right Hand	–				3D
R4-30-40-101-20	29,22 €		6.7 mm Thru	Perpendicular	Stainless Steel		Natural		–	Marine				.step
R4-30-40-301-20	29,22 €		6.7 mm Thru	2-Point	Stainless Steel		Natural		–	Marine				.step
R4-30-40-501-20	29,22 €		6.7 mm Thru	Bottom	Stainless Steel		Natural		–	Marine				.step
R4-30-40-701-20	30,27 €		6.7 mm Thru	Dual Trigger, Perpendicular/Bottom	Stainless Steel		Bright		Left Hand	–				3D
R4-30-41-101-20	29,22 €		1/4–20 Thread	Perpendicular	Stainless Steel		Natural	Two Stage	–		Rivet/Screw			3D
R4-30-41-301-20	29,22 €		1/4–20 Thread	2-Point	Stainless Steel		Natural	Two Stage	–		Rivet/Screw			3D
R4-30-41-501-20	29,22 €		1/4–20 Thread	Bottom	Stainless Steel		Natural	Two Stage	–		Rivet/Screw			3D
R4-30-41-701-20	30,27 €		1/4–20 Thread	Dual Trigger, Perpendicular/Bottom	Stainless Steel		Bright	Two Stage	Left Hand		Rivet/Screw			3D
R4-30-42-101-20	29,22 €		M6 Thread	Perpendicular	Stainless Steel		Natural	Two Stage	–		Rivet/Screw			3D
Objednací kód	Základná cena bez DPH	Objednat	Mounting Hole	Operation	Material	Finish	Color/Appearance	Stage	Actuation	Application	Installation	Style	Size Series	CAD
R4-30-42-301-20	29,22 €		M6 Thread	2-Point	Stainless Steel		Natural	Two Stage	–		Rivet/Screw			3D
R4-30-42-501-20	29,22 €		M6 Thread	Bottom	Stainless Steel		Natural	Two Stage	–		Rivet/Screw			3D
R4-30-42-701-20	30,27 €		M6 Thread	Dual Trigger, Perpendicular/Bottom	Stainless Steel		Bright	Two Stage	Left Hand		Rivet/Screw			3D
R4-90-321-20	8,58 €		M10 Thread	–			Natural	–	–		–			.step
R4-30-10-101-15	15,33 €		6.7 mm Thru	Perpendicular	Steel	Zinc Nickel	Black	Single Stage						3D
R4-30-10-301-15	15,33 €		6.7 mm Thru	2-Point	Steel	Zinc Nickel	Black	Single Stage						3D
R4-30-10-501-15	15,33 €		6.7 mm Thru	Bottom	Steel	Zinc Nickel	Black	Single Stage						3D
R4-30-10-701-15	15,95 €		6.7 mm Thru	Dual Trigger, Perpendicular/Bottom	Steel	Zinc Nickel	Black	Single Stage						3D
R4-30-11-101-15	15,33 €		1/4–20 Thread	2-Point	Steel	Zinc Nickel	Black	Single Stage						3D
R4-30-11-301-15	15,78 €		1/4–20 Thread	2-Point	Steel	Zinc Nickel	Black	Single Stage						3D
R4-30-11-501-15	15,33 €		1/4–20 Thread	Bottom	Steel	Zinc Nickel	Black	Single Stage						3D
R4-30-11-701-15	15,95 €		1/4–20 Thread	Dual Trigger, Perpendicular/Bottom	Steel	Zinc Nickel	Black	Single Stage						3D
R4-30-12-101-15	15,33 €		M6 Thread	Perpendicular	Steel	Zinc Nickel	Black	Single Stage						3D
R4-30-12-301-15	15,33 €		M6 Thread	2-Point	Steel	Zinc Nickel	Black	Single Stage						3D
R4-30-12-501-15	15,33 €		M6 Thread	Bottom	Steel	Zinc Nickel	Black		Right Hand					3D
Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku.
