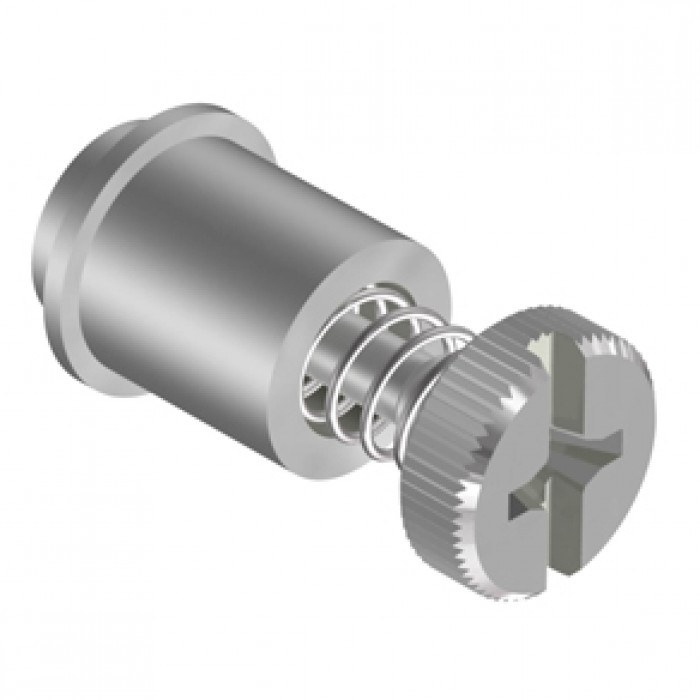

52-SM – miniatúrne nestratné skrutky
Popis produktu
| Kód: | 52-SM |
|---|---|
| Výrobca: | Southco |
| Ceny: | sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
zavřít
zavřít
Na stiahnutie
katalogový list technický list Detail zavřít
| Objednávací kód | Základná cena bez DPH | Objednať | Material | Installation | Color/Appearance | Thread or Hole Type | Head Style | Knob Style | Thread or Hole Type | Knob Material | Min. Outer Panel Thickness | Recess Size | Fastened Screw Projection | Unfastened Screw Projection | Series | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52-SM-1311-K-R | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Knurled | 4–40 | 1,6mm | Phillips #2/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-1311-K-T | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Knurled | 4–40 | 1,6mm | Phillips #2/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-1311-N-R | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Smooth | 4–40 | 1,6mm | Phillips #2/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-1311-N-T | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Smooth | 4–40 | 1,6mm | Phillips #2/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-1321-K-R | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Knurled | 4–40 | 1,6mm | Phillips #2/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| 52-SM-1321-K-T | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Knurled | 4–40 | 1,6mm | Phillips #2/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| 52-SM-1321-N-R | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Smooth | 4–40 | 1,6mm | Phillips #2/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| 52-SM-1321-N-T | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Smooth | 4–40 | 1,6mm | Phillips #2/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| 52-SM-1411-K-R | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Knurled | 4–40 | 1,6mm | T15 Torx®/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-1411-K-T | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Knurled | 4–40 | 1,6mm | T15 Torx®/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-1411-N-R | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Smooth | 4–40 | 1,6mm | T15 Torx®/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-1411-N-T | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Smooth | 4–40 | 1,6mm | T15 Torx®/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-1421-K-R | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Knurled | 4–40 | 1,6mm | T15 Torx®/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| 52-SM-1421-K-T | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Knurled | 4–40 | 1,6mm | T15 Torx®/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| 52-SM-1421-N-R | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Smooth | 4–40 | 1,6mm | T15 Torx®/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| Objednávací kód | Základná cena bez DPH | Objednať | Material | Installation | Color/Appearance | Thread or Hole Type | Head Style | Knob Style | Thread or Hole Type | Knob Material | Min. Outer Panel Thickness | Recess Size | Fastened Screw Projection | Unfastened Screw Projection | Series | CAD |
| 52-SM-1421-N-T | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Smooth | 4–40 | 1,6mm | T15 Torx®/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| 52-SM-2311-K-R | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Knurled | 6–32 | 1,6mm | Phillips #2/Slot Combination | 5,8mm | 0,7mm | Miniature | ||||
| 52-SM-2311-K-T | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Knurled | 6–32 | 1,6mm | Phillips #2/Slot Combination | 5,8mm | 0,7mm | Miniature | ||||
| 52-SM-2311-N-R | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Smooth | 6–32 | 1,6mm | Phillips #2/Slot Combination | 5,8mm | 0,7mm | Miniature | ||||
| 52-SM-2311-N-T | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Smooth | 6–32 | 1,6mm | Phillips #2/Slot Combination | 5,8mm | 0,7mm | Miniature | ||||
| 52-SM-2321-K-R | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Knurled | 6–32 | 1,6mm | Phillips #2/Slot Combination | 7,4mm | 2,2mm | Miniature | ||||
| 52-SM-2321-K-T | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Knurled | 6–32 | 1,6mm | Phillips #2/Slot Combination | 7,4mm | 2,2mm | Miniature | ||||
| 52-SM-2321-N-R | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Smooth | 6–32 | 1,6mm | Phillips #2/Slot Combination | 7,4mm | 2,2mm | Miniature | ||||
| 52-SM-2321-N-T | 1,87 € | Steel | Surface Mount Technology | Bright | Phillips/Slot Combination | Smooth | 6–32 | 1,6mm | Phillips #2/Slot Combination | 7,4mm | 2,2mm | Miniature | ||||
| 52-SM-2411-K-R | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Knurled | 6–32 | 1,6mm | T15 Torx®/Slot Combination | 5,8mm | 0,7mm | Miniature | ||||
| 52-SM-2411-K-T | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Knurled | 6–32 | 1,6mm | T15 Torx®/Slot Combination | 5,8mm | 0,7mm | Miniature | ||||
| 52-SM-2411-N-R | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Smooth | 6–32 | 1,6mm | T15 Torx®/Slot Combination | 5,8mm | 0,7mm | Miniature | ||||
| 52-SM-2411-N-T | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Smooth | 6–32 | 1,6mm | T15 Torx®/Slot Combination | 5,8mm | 0,7mm | Miniature | ||||
| 52-SM-2421-K-R | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Knurled | 6–32 | 1,6mm | T15 Torx®/Slot Combination | 7,4mm | 2,2mm | Miniature | ||||
| 52-SM-2421-K-T | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Knurled | 6–32 | 1,6mm | T15 Torx®/Slot Combination | 7,4mm | 2,2mm | Miniature | ||||
| Objednávací kód | Základná cena bez DPH | Objednať | Material | Installation | Color/Appearance | Thread or Hole Type | Head Style | Knob Style | Thread or Hole Type | Knob Material | Min. Outer Panel Thickness | Recess Size | Fastened Screw Projection | Unfastened Screw Projection | Series | CAD |
| 52-SM-2421-N-R | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Smooth | 6–32 | 1,6mm | T15 Torx®/Slot Combination | 7,4mm | 2,2mm | Miniature | ||||
| 52-SM-2421-N-T | 1,87 € | Steel | Surface Mount Technology | Bright | Torx®/Slot Combination | Smooth | 6–32 | 1,6mm | T15 Torx®/Slot Combination | 7,4mm | 2,2mm | Miniature | ||||
| 52-SM-3311-K-R | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Phillips/Slot Combination | Knurled | 1,6mm | Phillips #2/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-3311-K-T | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Phillips/Slot Combination | Knurled | 1,6mm | Phillips #2/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-3311-N-R | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Phillips/Slot Combination | Smooth | 1,6mm | Phillips #2/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-3311-N-T | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Phillips/Slot Combination | Smooth | 1,6mm | Phillips #2/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-3321-K-R | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Phillips/Slot Combination | Knurled | 1,6mm | Phillips #2/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| 52-SM-3321-K-T | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Phillips/Slot Combination | Knurled | 1,6mm | Phillips #2/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| 52-SM-3321-N-R | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Phillips/Slot Combination | Smooth | 1,6mm | Phillips #2/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| 52-SM-3321-N-T | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Phillips/Slot Combination | Smooth | 1,6mm | Phillips #2/Slot Combination | 6,8mm | Miniature | |||||
| 52-SM-3411-K-R | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Torx®/Slot Combination | Knurled | 1,6mm | T15 Torx®/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-3411-K-T | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Torx®/Slot Combination | Knurled | 1,6mm | T15 Torx®/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-3411-N-R | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Torx®/Slot Combination | Smooth | 1,6mm | T15 Torx®/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-3411-N-T | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Torx®/Slot Combination | Smooth | 1,6mm | T15 Torx®/Slot Combination | 5,3mm | 0,8mm | Miniature | ||||
| 52-SM-3421-K-R | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Torx®/Slot Combination | Knurled | 1,6mm | T15 Torx®/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| Objednávací kód | Základná cena bez DPH | Objednať | Material | Installation | Color/Appearance | Thread or Hole Type | Head Style | Knob Style | Thread or Hole Type | Knob Material | Min. Outer Panel Thickness | Recess Size | Fastened Screw Projection | Unfastened Screw Projection | Series | CAD |
| 52-SM-3421-K-T | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Torx®/Slot Combination | Knurled | 1,6mm | T15 Torx®/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| 52-SM-3421-N-R | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Torx®/Slot Combination | Smooth | 1,6mm | T15 Torx®/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| 52-SM-3421-N-T | 1,87 € | Steel | Surface Mount Technology | Bright | M3 X 0.5 | Torx®/Slot Combination | Smooth | 1,6mm | T15 Torx®/Slot Combination | 6,8mm | 2,3mm | Miniature | ||||
| 52-SM-A1111-K000-R | na otázku | Steel | Surface Mount Technology | Black | Phillips Recess | Knurled | 4–40 | Plastic | 1,6mm | Phillips Recess #2 | 4,8mm | 1,5mm | Miniature, Low Profile | |||
| 52-SM-A1111-K000-T | na otázku | Steel | Surface Mount Technology | Black | Phillips Recess | Knurled | 4–40 | Plastic | 1,6mm | Phillips Recess #2 | 4,8mm | 1,5mm | Miniature, Low Profile | |||
| 52-SM-A1111-K008-R | na otázku | Steel | Surface Mount Technology | Blue | Phillips Recess | Knurled | 4–40 | Plastic | 1,6mm | Phillips Recess #2 | 4,8mm | 1,5mm | Miniature, Low Profile | |||
| 52-SM-A1111-K008-T | na otázku | Steel | Surface Mount Technology | Blue | Phillips Recess | Knurled | 4–40 | Plastic | 1,6mm | Phillips Recess #2 | 4,8mm | 1,5mm | Miniature, Low Profile | |||
| 52-SM-A1111-K013-R | na otázku | Steel | Surface Mount Technology | Red | Phillips Recess | Knurled | 4–40 | Plastic | 1,6mm | Phillips Recess #2 | 4,8mm | 1,5mm | Miniature, Low Profile | |||
| 52-SM-A1111-K013-T | na otázku | Steel | Surface Mount Technology | Red | Phillips Recess | Knurled | 4–40 | Plastic | 1,6mm | Phillips Recess #2 | 4,8mm | 1,5mm | Miniature, Low Profile | |||
| 52-SM-A1111-K014-R | na otázku | Steel | Surface Mount Technology | Green | Phillips Recess | Knurled | 4–40 | Plastic | 1,6mm | Phillips Recess #2 | 4,8mm | 1,5mm | Miniature, Low Profile | |||
| 52-SM-A1111-K014-T | na otázku | Steel | Surface Mount Technology | Green | Phillips Recess | Knurled | 4–40 | Plastic | 1,6mm | Phillips Recess #2 | 4,8mm | 1,5mm | Miniature, Low Profile | |||
| 52-SM-A1111-N000-R | na otázku | Steel | Surface Mount Technology | Black | Phillips Recess | Smooth | 4–40 | Plastic | 1,6mm | Phillips Recess #2 | 4,8mm | 1,5mm | Miniature, Low Profile | |||
| 52-SM-A1111-N000-T | na otázku | Steel | Surface Mount Technology | Black | Phillips Recess | Smooth | 4–40 | Plastic | 1,6mm | Phillips Recess #2 | 4,8mm | 1,5mm | Miniature, Low Profile | |||
| 52-SM-A1111-N008-R | na otázku | Steel | Surface Mount Technology | Blue | Phillips Recess | Smooth | 4–40 | Plastic | 1,6mm | Phillips Recess #2 | 4,8mm | 1,5mm | Miniature, Low Profile | |||
| 52-SM-A1111-N008-T | na otázku | Steel | Surface Mount Technology | Blue | Phillips Recess | Smooth | 4–40 | Plastic | 1,6mm | Phillips Recess #2 | 4,8mm | 1,5mm | Miniature, Low Profile | |||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | ||||||||||||||||
