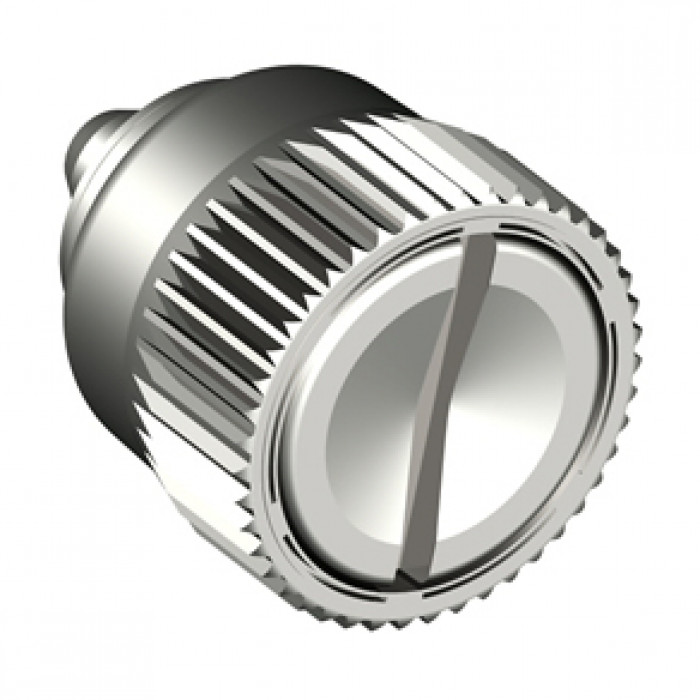

47–91 – nestratné skrutky
Popis tovaru
| Kód: | 47-91 |
|---|---|
| Výrobca: | Southco |
| Ceny: | sú uvedené dole na stránke v tabuľke variánt produktu alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
zavřít
zavřít
Detail zavřít
| Objednací kód | Základná cena bez DPH | Objednat | Material | Installation | Finish | Color/Appearance | Thread or Hole Type | Head Style | Knob Style | Max Outer Panel Thickness | Knob Material | Min. Outer Panel Thickness | Recess Size | Fastened Screw Projection | Unfastened Screw Projection | Series | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47-91-101-20 | 1,67 € | Stainless Steel | Press-in | Bright | M3 X 0.5 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 5,7mm | 2,5mm | Styled Knob | |||||
| 47-91-101-21 | 1,67 € | Stainless Steel | Press-in | Bright | M3 X 0.5 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 5,7mm | 2,5mm | Styled Knob | |||||
| 47-91-101-24 | 1,67 € | Steel | Press-in | Bright | M3 X 0.5 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 5,7mm | 2,5mm | Styled Knob | |||||
| 47-91-101-25 | 1,67 € | Steel | Press-in | Bright | M3 X 0.5 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 5,7mm | 2,5mm | Styled Knob | |||||
| 47-91-101-40-005 | na dotaz | Steel | Press-in | Terra Cotta | Slotted Recess | Knurled | 0,9mm | 5,7mm | 2,5mm | ||||||||
| 47-91-101-40-006 | na dotaz | Steel | Press-in | Blurple | M3 X 0.5 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 5,7mm | 2,5mm | ||||||
| 47-91-101-60 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-101-61 | na dotaz | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-101-64 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-101-65 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-121-20 | 1,67 € | Stainless Steel | Press-in | Bright | M3 X 0.5 | Phillips Recess | Knurled | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-121-21 | 1,67 € | Stainless Steel | Press-in | Bright | M3 X 0.5 | Phillips Recess | Smooth | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-121-24 | 1,67 € | Steel | Press-in | Bright | M3 X 0.5 | Phillips Recess | Knurled | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-121-25 | 1,67 € | Steel | Press-in | Bright | M3 X 0.5 | Phillips Recess | Smooth | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-121-60 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips Recess | Knurled | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 5,7mm | 2,5mm | Styled Knob | |||
| Objednací kód | Základná cena bez DPH | Objednat | Material | Installation | Finish | Color/Appearance | Thread or Hole Type | Head Style | Knob Style | Max Outer Panel Thickness | Knob Material | Min. Outer Panel Thickness | Recess Size | Fastened Screw Projection | Unfastened Screw Projection | Series | CAD |
| 47-91-121-61 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips Recess | Smooth | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 5,7mm | 2,5mm | Styled Knob | |||
| 47-91-121-64 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips Recess | Knurled | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 5,7mm | 2,5mm | Styled Knob | |||
| 47-91-121-65 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips Recess | Smooth | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 5,7mm | 2,5mm | Styled Knob | |||
| 47-91-141-20 | 1,67 € | Stainless Steel | Press-in | Bright | M3 X 0.5 | Torx® | Knurled | Aluminum Alloy | 0,9mm | T10 Torx® | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-141-21 | 1,67 € | Stainless Steel | Press-in | Bright | M3 X 0.5 | Torx® | Smooth | Aluminum Alloy | 0,9mm | T10 Torx® | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-141-24 | 1,67 € | Steel | Press-in | Bright | M3 X 0.5 | Torx® | Knurled | Aluminum Alloy | 0,9mm | T10 Torx® | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-141-25 | 1,67 € | Steel | Press-in | Bright | M3 X 0.5 | Torx® | Smooth | Aluminum Alloy | 0,9mm | T10 Torx® | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-141-60 | na dotaz | Stainless Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Torx® | Knurled | Aluminum Alloy | 0,9mm | T10 Torx® | 5,7mm | 2,5mm | Styled Knob | |||
| 47-91-141-61 | na dotaz | Stainless Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Torx® | Smooth | Aluminum Alloy | 0,9mm | T10 Torx® | 5,7mm | 2,5mm | Styled Knob | |||
| 47-91-141-64 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Torx® | Knurled | Aluminum Alloy | 0,9mm | T10 Torx® | 5,7mm | 2,5mm | Styled Knob | |||
| 47-91-141-65 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Torx® | Smooth | Aluminum Alloy | 0,9mm | T10 Torx® | 5,7mm | 2,5mm | Styled Knob | |||
| 47-91-161-60 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Torx®/Slot Combination | Knurled | Aluminum Alloy | 0,9mm | T10 Torx®/Slot Combination | 5,7mm | 2,5mm | Styled Knob | |||
| 47-91-161-61 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Torx®/Slot Combination | Smooth | Aluminum Alloy | 0,9mm | T10 Torx®/Slot Combination | 5,7mm | 2,5mm | Styled Knob | |||
| 47-91-181-20 | 1,67 € | Stainless Steel | Press-in | Bright | M3 X 0.5 | Phillips/Slot Combination | Knurled | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-181-21 | 1,67 € | Stainless Steel | Press-in | Bright | M3 X 0.5 | Phillips/Slot Combination | Smooth | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 5,7mm | 2,5mm | Styled Knob | ||||
| Objednací kód | Základná cena bez DPH | Objednat | Material | Installation | Finish | Color/Appearance | Thread or Hole Type | Head Style | Knob Style | Max Outer Panel Thickness | Knob Material | Min. Outer Panel Thickness | Recess Size | Fastened Screw Projection | Unfastened Screw Projection | Series | CAD |
| 47-91-181-24 | 1,67 € | Steel | Press-in | Bright | M3 X 0.5 | Phillips/Slot Combination | Knurled | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-181-25 | 1,67 € | Steel | Press-in | Bright | M3 X 0.5 | Phillips/Slot Combination | Smooth | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 5,7mm | 2,5mm | Styled Knob | ||||
| 47-91-181-60 | 1,67 € | Stainless Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips/Slot Combination | Knurled | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 5,7mm | 2,5mm | Styled Knob | |||
| 47-91-181-61 | na dotaz | Stainless Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips/Slot Combination | Smooth | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 5,7mm | 2,5mm | Styled Knob | |||
| 47-91-181-64 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips/Slot Combination | Knurled | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 5,7mm | 2,5mm | Styled Knob | |||
| 47-91-181-65 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips/Slot Combination | Smooth | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 5,7mm | 2,5mm | Styled Knob | |||
| 47-91-201-20 | 1,67 € | Stainless Steel | Press-in | Bright | M3.5 X 0.6 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 6,9mm | 2,1mm | Styled Knob | |||||
| 47-91-201-21 | na dotaz | Stainless Steel | Press-in | Bright | M3.5 X 0.6 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 6,9mm | 2,1mm | Styled Knob | |||||
| 47-91-201-24 | 1,67 € | Steel | Press-in | Bright | M3.5 X 0.6 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 6,9mm | 2,1mm | Styled Knob | |||||
| 47-91-201-25 | 1,67 € | Steel | Press-in | Bright | M3.5 X 0.6 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 6,9mm | 2,1mm | Styled Knob | |||||
| 47-91-201-60 | na dotaz | Steel | Press-in | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 6,9mm | 2,1mm | Styled Knob | ||||
| 47-91-201-61 | na dotaz | Steel | Press-in | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 6,9mm | 2,1mm | Styled Knob | ||||
| 47-91-201-64 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 6,9mm | 2,1mm | Styled Knob | ||||
| 47-91-201-65 | 1,67 € | Steel | Press-in | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 6,9mm | 2,1mm | Styled Knob | ||||
| 47-91-210-10 | na dotaz | Stainless Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Knurled | 1mm | Aluminum Alloy | 0,5mm | 7,2mm | 2,4mm | Styled Knob | ||||
| Objednací kód | Základná cena bez DPH | Objednat | Material | Installation | Finish | Color/Appearance | Thread or Hole Type | Head Style | Knob Style | Max Outer Panel Thickness | Knob Material | Min. Outer Panel Thickness | Recess Size | Fastened Screw Projection | Unfastened Screw Projection | Series | CAD |
| 47-91-210-11 | na dotaz | Stainless Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Smooth | 1mm | Aluminum Alloy | 0,5mm | 7,2mm | 2,4mm | Styled Knob | ||||
| 47-91-210-14 | 1,75 € | Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Knurled | 1mm | Aluminum Alloy | 0,5mm | 7,2mm | 2,4mm | Styled Knob | ||||
| 47-91-210-15 | 1,75 € | Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Smooth | 1mm | Aluminum Alloy | 0,5mm | 7,2mm | 2,4mm | Styled Knob | ||||
| 47-91-210-50 | na dotaz | Stainless Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Knurled | 1mm | Aluminum Alloy | 0,5mm | 7,2mm | 2,4mm | Styled Knob | |||
| 47-91-210-51 | na dotaz | Stainless Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Smooth | 1mm | Aluminum Alloy | 0,5mm | 7,2mm | 2,4mm | Styled Knob | |||
| 47-91-210-54 | 1,75 € | Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Knurled | 1mm | Aluminum Alloy | 0,5mm | 7,2mm | 2,4mm | Styled Knob | |||
| 47-91-210-55 | 1,75 € | Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Smooth | 1mm | Aluminum Alloy | 0,5mm | 7,2mm | 2,4mm | Styled Knob | |||
| 47-91-212-10 | na dotaz | Stainless Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Knurled | 1,6mm | Aluminum Alloy | 1mm | 8,8mm | 4mm | Styled Knob | ||||
| 47-91-212-11 | na dotaz | Stainless Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Smooth | 1,6mm | Aluminum Alloy | 1mm | 8,8mm | 4mm | Styled Knob | ||||
| 47-91-212-14 | 1,75 € | Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Knurled | 1,6mm | Aluminum Alloy | 1mm | 8,8mm | 4mm | Styled Knob | ||||
| 47-91-212-15 | 1,75 € | Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Smooth | 1,6mm | Aluminum Alloy | 1mm | 8,8mm | 4mm | Styled Knob | ||||
| 47-91-212-50 | na dotaz | Stainless Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Knurled | 1,6mm | Aluminum Alloy | 1mm | 8,8mm | 4mm | Styled Knob | |||
| 47-91-212-51 | na dotaz | Stainless Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Smooth | 1,6mm | Aluminum Alloy | 1mm | 8,8mm | 4mm | Styled Knob | |||
| 47-91-212-54 | 1,75 € | Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Knurled | 1,6mm | Aluminum Alloy | 1mm | 8,8mm | 4mm | Styled Knob | |||
| 47-91-212-55 | 1,75 € | Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Smooth | 1,6mm | Aluminum Alloy | 1mm | 8,8mm | 4mm | Styled Knob | |||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||||||||
