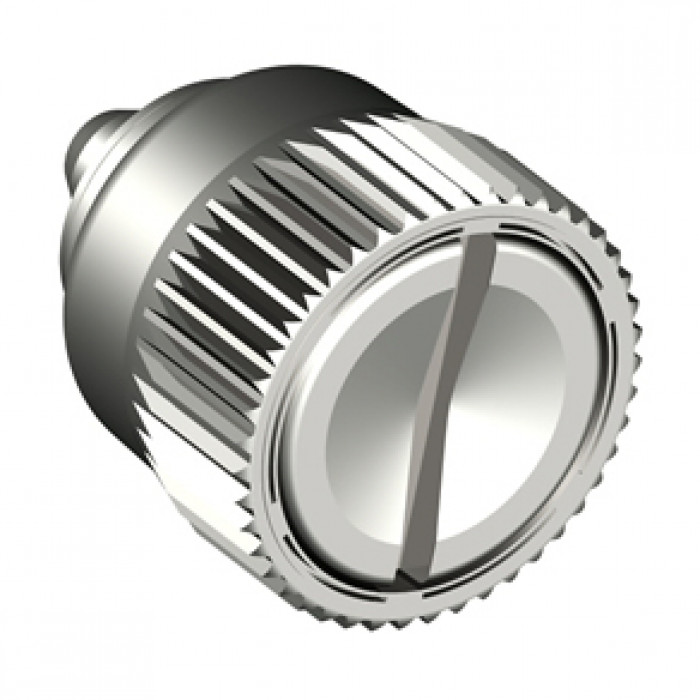

47–92 – nestratné skrutky
Popis produktu
| Kód: | 47-92 |
|---|---|
| Výrobca: | Southco |
| Ceny: | sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
zavřít
zavřít
Na stiahnutie
katalogový list technický list Detail zavřít
| Objednávací kód | Základná cena bez DPH | Objednať | Material | Installation | Finish | Color/Appearance | Thread or Hole Type | Head Style | Knob Style | Max Outer Panel Thickness | Knob Material | Min. Outer Panel Thickness | Recess Size | Fastened Screw Projection | Unfastened Screw Projection | Series | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47-92-101-20 | 1,80 € | Stainless Steel | Press-in | Bright | M3 X 0.5 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 7,2mm | 4mm | Styled Knob | |||||
| 47-92-101-21 | na otázku | Stainless Steel | Press-in | Bright | M3 X 0.5 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 7,2mm | 4mm | Styled Knob | |||||
| 47-92-101-24 | 1,80 € | Steel | Press-in | Bright | M3 X 0.5 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 7,2mm | 4mm | Styled Knob | |||||
| 47-92-101-25 | 1,80 € | Steel | Press-in | Bright | M3 X 0.5 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 7,2mm | 4mm | Styled Knob | |||||
| 47-92-101-60 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-101-61 | na otázku | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-101-64 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-101-65 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-121-20 | 1,80 € | Stainless Steel | Press-in | Bright | M3 X 0.5 | Phillips Recess | Knurled | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-121-21 | na otázku | Stainless Steel | Press-in | Bright | M3 X 0.5 | Phillips Recess | Smooth | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-121-24 | 1,80 € | Steel | Press-in | Bright | M3 X 0.5 | Phillips Recess | Knurled | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-121-25 | 1,80 € | Steel | Press-in | Bright | M3 X 0.5 | Phillips Recess | Smooth | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-121-60 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips Recess | Knurled | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 7,2mm | 4mm | Styled Knob | |||
| 47-92-121-61 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips Recess | Smooth | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 7,2mm | 4mm | Styled Knob | |||
| 47-92-121-64 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips Recess | Knurled | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 7,2mm | 4mm | Styled Knob | |||
| Objednávací kód | Základná cena bez DPH | Objednať | Material | Installation | Finish | Color/Appearance | Thread or Hole Type | Head Style | Knob Style | Max Outer Panel Thickness | Knob Material | Min. Outer Panel Thickness | Recess Size | Fastened Screw Projection | Unfastened Screw Projection | Series | CAD |
| 47-92-121-65 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips Recess | Smooth | Aluminum Alloy | 0,9mm | Phillips Recess #1 | 7,2mm | 4mm | Styled Knob | |||
| 47-92-141-20 | 1,80 € | Stainless Steel | Press-in | Bright | M3 X 0.5 | Torx® | Knurled | Aluminum Alloy | 0,9mm | T10 Torx® | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-141-21 | na otázku | Stainless Steel | Press-in | Bright | M3 X 0.5 | Torx® | Smooth | Aluminum Alloy | 0,9mm | T10 Torx® | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-141-24 | 1,80 € | Steel | Press-in | Bright | M3 X 0.5 | Torx® | Knurled | Aluminum Alloy | 0,9mm | T10 Torx® | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-141-25 | 1,80 € | Steel | Press-in | Bright | M3 X 0.5 | Torx® | Smooth | Aluminum Alloy | 0,9mm | T10 Torx® | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-141-60 | na otázku | Stainless Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Torx® | Knurled | Aluminum Alloy | 0,9mm | T10 Torx® | 7,2mm | 4mm | Styled Knob | |||
| 47-92-141-61 | na otázku | Stainless Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Torx® | Smooth | Aluminum Alloy | 0,9mm | T10 Torx® | 7,2mm | 4mm | Styled Knob | |||
| 47-92-141-64 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Torx® | Knurled | Aluminum Alloy | 0,9mm | T10 Torx® | 7,2mm | 4mm | Styled Knob | |||
| 47-92-141-65 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Torx® | Smooth | Aluminum Alloy | 0,9mm | T10 Torx® | 7,2mm | 4mm | Styled Knob | |||
| 47-92-161-60 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Torx®/Slot Combination | Knurled | Aluminum Alloy | 0,9mm | T10 Torx®/Slot Combination | 7,2mm | 4mm | Styled Knob | |||
| 47-92-161-61 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Torx®/Slot Combination | Smooth | Aluminum Alloy | 0,9mm | T10 Torx®/Slot Combination | 7,2mm | 4mm | Styled Knob | |||
| 47-92-181-20 | 1,80 € | Stainless Steel | Press-in | Bright | M3 X 0.5 | Phillips/Slot Combination | Knurled | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-181-21 | 1,80 € | Stainless Steel | Press-in | Bright | M3 X 0.5 | Phillips/Slot Combination | Smooth | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-181-24 | 1,80 € | Steel | Press-in | Bright | M3 X 0.5 | Phillips/Slot Combination | Knurled | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 7,2mm | 4mm | Styled Knob | ||||
| 47-92-181-25 | 1,80 € | Steel | Press-in | Bright | M3 X 0.5 | Phillips/Slot Combination | Smooth | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 7,2mm | 4mm | Styled Knob | ||||
| Objednávací kód | Základná cena bez DPH | Objednať | Material | Installation | Finish | Color/Appearance | Thread or Hole Type | Head Style | Knob Style | Max Outer Panel Thickness | Knob Material | Min. Outer Panel Thickness | Recess Size | Fastened Screw Projection | Unfastened Screw Projection | Series | CAD |
| 47-92-181-60 | 1,80 € | Stainless Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips/Slot Combination | Knurled | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 7,2mm | 4mm | Styled Knob | |||
| 47-92-181-61 | na otázku | Stainless Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips/Slot Combination | Smooth | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 7,2mm | 4mm | Styled Knob | |||
| 47-92-181-64 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips/Slot Combination | Knurled | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 7,2mm | 4mm | Styled Knob | |||
| 47-92-181-65 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3 X 0.5 | Phillips/Slot Combination | Smooth | Aluminum Alloy | 0,9mm | Phillips #1/Slot Combination | 7,2mm | 4mm | Styled Knob | |||
| 47-92-201-20 | 1,80 € | Stainless Steel | Press-in | Bright | M3.5 X 0.6 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 8,5mm | 3,7mm | Styled Knob | |||||
| 47-92-201-21 | na otázku | Stainless Steel | Press-in | Bright | M3.5 X 0.6 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 8,5mm | 3,7mm | Styled Knob | |||||
| 47-92-201-24 | 1,80 € | Steel | Press-in | Bright | M3.5 X 0.6 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 8,5mm | 3,7mm | Styled Knob | |||||
| 47-92-201-25 | 1,80 € | Steel | Press-in | Bright | M3.5 X 0.6 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 8,5mm | 3,7mm | Styled Knob | |||||
| 47-92-201-60 | na otázku | Steel | Press-in | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 8,5mm | 3,7mm | Styled Knob | ||||
| 47-92-201-61 | na otázku | Steel | Press-in | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 8,5mm | 3,7mm | Styled Knob | ||||
| 47-92-201-64 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Knurled | Aluminum Alloy | 0,9mm | 8,5mm | 3,7mm | Styled Knob | ||||
| 47-92-201-65 | 1,80 € | Steel | Press-in | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Smooth | Aluminum Alloy | 0,9mm | 8,5mm | 3,7mm | Styled Knob | ||||
| 47-92-210-10 | na otázku | Stainless Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Knurled | 1mm | Aluminum Alloy | 0,5mm | 8,8mm | 4mm | Styled Knob | ||||
| 47-92-210-11 | na otázku | Stainless Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Smooth | 1mm | Aluminum Alloy | 0,5mm | 8,8mm | 4mm | Styled Knob | ||||
| 47-92-210-14 | 1,89 € | Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Knurled | 1mm | Aluminum Alloy | 0,5mm | 8,8mm | 4mm | Styled Knob | ||||
| Objednávací kód | Základná cena bez DPH | Objednať | Material | Installation | Finish | Color/Appearance | Thread or Hole Type | Head Style | Knob Style | Max Outer Panel Thickness | Knob Material | Min. Outer Panel Thickness | Recess Size | Fastened Screw Projection | Unfastened Screw Projection | Series | CAD |
| 47-92-210-15 | 1,89 € | Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Smooth | 1mm | Aluminum Alloy | 0,5mm | 8,8mm | 4mm | Styled Knob | ||||
| 47-92-210-50 | na otázku | Stainless Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Knurled | 1mm | Aluminum Alloy | 0,5mm | 8,8mm | 4mm | Styled Knob | |||
| 47-92-210-51 | na otázku | Stainless Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Smooth | 1mm | Aluminum Alloy | 0,5mm | 8,8mm | 4mm | Styled Knob | |||
| 47-92-210-54 | 1,89 € | Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Knurled | 1mm | Aluminum Alloy | 0,5mm | 8,8mm | 4mm | Styled Knob | |||
| 47-92-210-55 | 1,89 € | Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Smooth | 1mm | Aluminum Alloy | 0,5mm | 8,8mm | 4mm | Styled Knob | |||
| 47-92-212-10 | na otázku | Stainless Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Knurled | 1,6mm | Aluminum Alloy | 1mm | 10,4mm | 5,6mm | Styled Knob | ||||
| 47-92-212-11 | na otázku | Stainless Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Smooth | 1,6mm | Aluminum Alloy | 1mm | 10,4mm | 5,6mm | Styled Knob | ||||
| 47-92-212-14 | 1,89 € | Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Knurled | 1,6mm | Aluminum Alloy | 1mm | 10,4mm | 5,6mm | Styled Knob | ||||
| 47-92-212-15 | 1,89 € | Steel | Snap-In | Bright | M3.5 X 0.6 | Slotted Recess | Smooth | 1,6mm | Aluminum Alloy | 1mm | 10,4mm | 5,6mm | Styled Knob | ||||
| 47-92-212-50 | na otázku | Stainless Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Knurled | 1,6mm | Aluminum Alloy | 1mm | 10,4mm | 5,6mm | Styled Knob | |||
| 47-92-212-51 | na otázku | Stainless Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Smooth | 1,6mm | Aluminum Alloy | 1mm | 10,4mm | 5,6mm | Styled Knob | |||
| 47-92-212-54 | 1,89 € | Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Knurled | 1,6mm | Aluminum Alloy | 1mm | 10,4mm | 5,6mm | Styled Knob | |||
| 47-92-212-55 | 1,89 € | Steel | Snap-In | Powder Coat | Black | M3.5 X 0.6 | Slotted Recess | Smooth | 1,6mm | Aluminum Alloy | 1mm | 10,4mm | 5,6mm | Styled Knob | |||
| 47-92-221-20 | 1,80 € | Stainless Steel | Press-in | Bright | M3.5 X 0.6 | Phillips Recess | Knurled | Aluminum Alloy | 0,9mm | Phillips Recess #2 | 8,5mm | 3,7mm | Styled Knob | ||||
| 47-92-221-21 | na otázku | Stainless Steel | Press-in | Bright | M3.5 X 0.6 | Phillips Recess | Smooth | Aluminum Alloy | 0,9mm | Phillips Recess #2 | 8,5mm | 3,7mm | Styled Knob | ||||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||||||||
