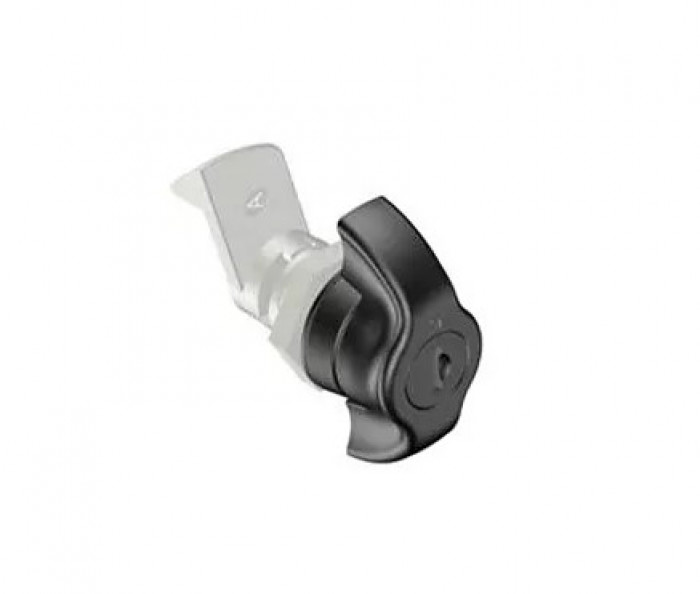

E5–9 – Západkové uzávery

Popis produktu

Kód:	E5-9
Výrobca:	Southco
Ceny:	sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie.
Termín dodania:	bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií.

zavřít

3D modely

JMÉNO:
E-MAIL:
WWW:
TEXT:

Díl – objednací číslo: E5-9 – Západkové uzávery | E5-9
Formát 3D:

Specifikujte prosím do pole níže konkrétní objednací kód, ke kterému žádáte zaslat 3D model nebo si jej stáhněte z tabulky dostupných variant v dolní části stránky produktu a to tlačítkem 3D nebo Stáhnout.

Objednací kód: Firma: Jméno: Příjmení: E-mail: Telefon: Text:

Vážení zákazníci, informujeme vás v súlade s nariadením EÚ, že poskytnuté informácie nie sú nami ďalej nijako používané ani uschované a slúžia len na vybavenie tejto žiadosti. Viac informácií TU

zavřít

Na stiahnutie

katalogový list

technický list

Priemyselné západky a uzávery, kde a ako ich použiť?

Publikované: 16. 2. 2021

V rámci konštrukčných návrhov skrine, nadstavby, krytu a ich prístupových riešení, je nutné vziať do úvahy aký vhodný typ zatvárania zvoliť a ktorý typ zámku alebo západky vybrať. Často sa tak stretávajú požiadavky na funkčnosť s požiadavkami na estetiku. Nájsť ideálne riešenie, ktoré splní oba parametre, potom vyžaduje dobrú znalosť ponúkaných komponentov a dostupných variantov.

Chcem sa dozvedieť viac o západkách a uzáveroch!

Detail zavřít

Zruš filter
Objednávací kód	Základná cena bez DPH	Objednať	Material	Operation	Actuator Type	Finish	Access Restriction	Color/Appearance	Door Thickness Range	Style	Sealed	Grip Range	Type	Rotation	CAD
E5-9-305-510	11,89 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	No Restriction	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	.step
E5-9-305-520	11,89 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	No Restriction	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type B – Turn Counter-Clockwise to Latch	3D
E5-9-305-TL0	11,89 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	No Restriction	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type B – Turn Counter-Clockwise to Latch	3D
E5-9-305-TR0	11,89 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	No Restriction	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type A – Turn Clockwise to Latch	3D
E5-9-305-UU1	8,45 €		Zinc Alloy		Wing	Powder Coat	No Restriction	Black		Latch			Housing		.step
E5-9-315-510-10	14,91 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	3D
E5-9-315-510-13	16,45 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	3D
E5-9-315-520-10	14,91 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type B – Turn Counter-Clockwise to Latch	3D
E5-9-315-520-13	16,45 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type B – Turn Counter-Clockwise to Latch	3D
E5-9-315-TL0-10	14,91 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type B – Turn Counter-Clockwise to Latch	3D
E5-9-315-TL0-13	16,45 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type B – Turn Counter-Clockwise to Latch	3D
E5-9-315-TR0-10	14,91 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type A – Turn Clockwise to Latch	3D
E5-9-315-TR0-13	16,45 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type A – Turn Clockwise to Latch	3D
E5-9-315-UU1-13	12,11 €		Zinc Alloy		Wing	Powder Coat	Key Locking	Black		Latch			Housing		3D
E5-9-325-510-10	15,47 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	3D
Objednávací kód	Základná cena bez DPH	Objednať	Material	Operation	Actuator Type	Finish	Access Restriction	Color/Appearance	Door Thickness Range	Style	Sealed	Grip Range	Type	Rotation	CAD
E5-9-325-510-13	17,13 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	3D
E5-9-325-520-10	15,47 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type B – Turn Counter-Clockwise to Latch	3D
E5-9-325-520-13	17,13 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type B – Turn Counter-Clockwise to Latch	3D
E5-9-325-TL0-10	15,47 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type B – Turn Counter-Clockwise to Latch	3D
E5-9-325-TL0-13	17,13 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type B – Turn Counter-Clockwise to Latch	3D
E5-9-325-TR0-10	15,47 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type A – Turn Clockwise to Latch	3D
E5-9-325-TR0-13	17,13 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type A – Turn Clockwise to Latch	3D
E5-9-325-UU1-13	12,51 €		Zinc Alloy		Wing	Powder Coat	Key Locking	Black		Latch			Housing		.step
E5-9-335-510	11,89 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	3D
E5-9-335-520	11,89 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type B – Turn Counter-Clockwise to Latch	3D
E5-9-335-TL0	11,89 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type B – Turn Counter-Clockwise to Latch	3D
E5-9-335-TR0	11,89 €		Zinc Alloy	Hand / Key Operated	Wing	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type A – Turn Clockwise to Latch	3D
E5-9-335-UU1	8,49 €		Zinc Alloy		Wing	Powder Coat	Key Locking	Black		Latch			Housing		3D
E5-9-602-510	17,60 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	No Restriction		1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	3D
E5-9-602-520	17,60 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	No Restriction		1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type B – Turn Counter-Clockwise to Latch	3D
Objednávací kód	Základná cena bez DPH	Objednať	Material	Operation	Actuator Type	Finish	Access Restriction	Color/Appearance	Door Thickness Range	Style	Sealed	Grip Range	Type	Rotation	CAD
E5-9-602-TL0	17,60 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	No Restriction		1–6mm	Push-to-Close Latch – Two-Point	No			Type B – Turn Counter-Clockwise to Latch	3D
E5-9-602-TR0	17,60 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	No Restriction		1–6mm	Push-to-Close Latch – Two-Point	No			Type A – Turn Clockwise to Latch	3D
E5-9-602-UU1	13,11 €		Zinc Alloy		T-Handle	Chrome Plated	No Restriction	Bright							3D
E5-9-605-510	16,21 €		Zinc Alloy	Hand / Key Operated	T-Handle	Powder Coat	No Restriction	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	3D
E5-9-605-520	16,21 €		Zinc Alloy	Hand / Key Operated	T-Handle	Powder Coat	No Restriction	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type B – Turn Counter-Clockwise to Latch	3D
E5-9-605-TL0	16,21 €		Zinc Alloy	Hand / Key Operated	T-Handle	Powder Coat	No Restriction	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type B – Turn Counter-Clockwise to Latch	3D
E5-9-605-TR0	16,21 €		Zinc Alloy	Hand / Key Operated	T-Handle	Powder Coat	No Restriction	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type A – Turn Clockwise to Latch	3D
E5-9-605-UU1	11,89 €		Zinc Alloy		T-Handle	Powder Coat	No Restriction	Black		Latch					3D
E5-9-612-510-10	21,11 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	Key Locking		1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	3D
E5-9-612-510-13	24,70 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	Key Locking		1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	3D
E5-9-612-520-10	21,11 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	Key Locking		1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type B – Turn Counter-Clockwise to Latch	3D
E5-9-612-520-13	24,70 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	Key Locking		1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type B – Turn Counter-Clockwise to Latch	3D
E5-9-612-TL0-10	21,11 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	Key Locking		1–6mm	Push-to-Close Latch – Two-Point	No			Type B – Turn Counter-Clockwise to Latch	3D
E5-9-612-TL0-13	24,70 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	Key Locking		1–6mm	Push-to-Close Latch – Two-Point	No			Type B – Turn Counter-Clockwise to Latch	3D
E5-9-612-TR0-10	21,11 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	Key Locking		1–6mm	Push-to-Close Latch – Two-Point	No			Type A – Turn Clockwise to Latch	3D
Objednávací kód	Základná cena bez DPH	Objednať	Material	Operation	Actuator Type	Finish	Access Restriction	Color/Appearance	Door Thickness Range	Style	Sealed	Grip Range	Type	Rotation	CAD
E5-9-612-TR0-13	24,70 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	Key Locking		1–6mm	Push-to-Close Latch – Two-Point	No			Type A – Turn Clockwise to Latch	3D
E5-9-612-UU1-10	15,85 €		Zinc Alloy		T-Handle	Chrome Plated	Key Locking	Bright		Latch					3D
E5-9-612-UU1-13	18,66 €		Zinc Alloy		T-Handle	Chrome Plated	Key Locking	Bright		Latch					3D
E5-9-615-510-10	19,42 €		Zinc Alloy	Hand / Key Operated	T-Handle	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	3D
E5-9-615-510-13	22,51 €		Zinc Alloy	Hand / Key Operated	T-Handle	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	3D
E5-9-615-520-10	19,42 €		Zinc Alloy	Hand / Key Operated	T-Handle	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type B – Turn Counter-Clockwise to Latch	3D
E5-9-615-520-13	22,51 €		Zinc Alloy	Hand / Key Operated	T-Handle	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type B – Turn Counter-Clockwise to Latch	3D
E5-9-615-TL0-10	19,42 €		Zinc Alloy	Hand / Key Operated	T-Handle	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type B – Turn Counter-Clockwise to Latch	3D
E5-9-615-TL0-13	22,51 €		Zinc Alloy	Hand / Key Operated	T-Handle	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type B – Turn Counter-Clockwise to Latch	3D
E5-9-615-TR0-10	19,42 €		Zinc Alloy	Hand / Key Operated	T-Handle	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type A – Turn Clockwise to Latch	3D
E5-9-615-TR0-13	22,51 €		Zinc Alloy	Hand / Key Operated	T-Handle	Powder Coat	Key Locking	Black	1–6mm	Push-to-Close Latch – Two-Point	No			Type A – Turn Clockwise to Latch	3D
E5-9-615-UU1-10	14,45 €		Zinc Alloy		T-Handle	Powder Coat	Key Locking	Black		Latch					3D
E5-9-615-UU1-13	17,06 €		Zinc Alloy		T-Handle	Powder Coat	Key Locking	Black		Latch					3D
E5-9-622-510-10	21,60 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	Key Locking		1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	3D
E5-9-622-510-13	25,51 €		Zinc Alloy	Hand / Key Operated	T-Handle	Chrome Plated	Key Locking		1–6mm	Push-to-Close Latch – Single-Point	No	23mm		Type A – Turn Clockwise to Latch	3D
Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku.
