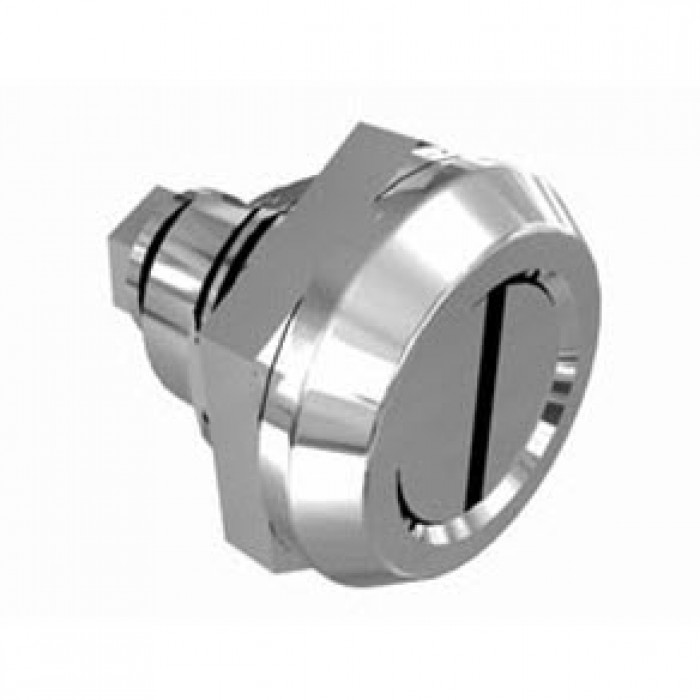

E5–6 – Západkové uzávery

Popis produktu

Kód:	E5-6
Výrobca:	Southco
Ceny:	sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie.
Termín dodania:	bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií.

zavřít

3D modely

JMÉNO:
E-MAIL:
WWW:
TEXT:

Díl – objednací číslo: E5-6 – Západkové uzávery | E5-6
Formát 3D:

Specifikujte prosím do pole níže konkrétní objednací kód, ke kterému žádáte zaslat 3D model nebo si jej stáhněte z tabulky dostupných variant v dolní části stránky produktu a to tlačítkem 3D nebo Stáhnout.

Objednací kód: Firma: Jméno: Příjmení: E-mail: Telefon: Text:

Vážení zákazníci, informujeme vás v súlade s nariadením EÚ, že poskytnuté informácie nie sú nami ďalej nijako používané ani uschované a slúžia len na vybavenie tejto žiadosti. Viac informácií TU

zavřít

Na stiahnutie

katalogový list

technický list

Priemyselné západky a uzávery, kde a ako ich použiť?

Publikované: 16. 2. 2021

V rámci konštrukčných návrhov skrine, nadstavby, krytu a ich prístupových riešení, je nutné vziať do úvahy aký vhodný typ zatvárania zvoliť a ktorý typ zámku alebo západky vybrať. Často sa tak stretávajú požiadavky na funkčnosť s požiadavkami na estetiku. Nájsť ideálne riešenie, ktoré splní oba parametre, potom vyžaduje dobrú znalosť ponúkaných komponentov a dostupných variantov.

Chcem sa dozvedieť viac o západkách a uzáveroch!

Detail zavřít

Zruš filter
Objednávací kód	Základná cena bez DPH	Objednať	Material	Operation	Material	Finish	Access Restriction	Head Style	Door Thickness Range	Color/Appearance	Head Style	Style	Sealed	Type	Grip Range	Rotation	CAD
E5-6-002-510	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	Slotted Recess	1–6mm			Push-to-Close Latch – Single-Point			23mm	Type A – Turn Clockwise to Latch	.step
E5-6-002-520	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	Slotted Recess	1–6mm			Push-to-Close Latch – Single-Point			23mm	Type B – Turn Counter-Clockwise to Latch	.step
E5-6-002-TL0	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	Slotted Recess	1–6mm			Push-to-Close Latch – Two-Point			23mm	Type B – Turn Counter-Clockwise to Latch	.step
E5-6-002-TR0	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	Slotted Recess	1–6mm			Push-to-Close Latch – Two-Point			23mm	Type A – Turn Clockwise to Latch	.step
E5-6-002-UU1	6,32 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	Slotted Recess				Latch		Housing			3D
E5-6-0024-UU1	30,13 €		Stainless Steel			Passivated	Tool	Slotted Recess				Latch	Yes	Housing			.step
E5-6-0027-UU1	35,32 €				316Stainless Steel	Passivated	Tool	Slotted Recess				Latch	Yes	Housing			.step
E5-6-003-UU1	5,70 €		Nylon				Tool	Slotted Recess		Black		Latch		Housing			.step
E5-6-005-510	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	Slotted Recess	1–6mm	Black		Push-to-Close Latch – Single-Point			23mm	Type A – Turn Clockwise to Latch	.step
E5-6-005-520	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	Slotted Recess	1–6mm	Black		Push-to-Close Latch – Single-Point			23mm	Type B – Turn Counter-Clockwise to Latch	.step
E5-6-005-TL0	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	Slotted Recess	1–6mm	Black		Push-to-Close Latch – Two-Point				Type B – Turn Counter-Clockwise to Latch	.step
E5-6-005-TR0	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	Slotted Recess	1–6mm	Black		Push-to-Close Latch – Two-Point				Type A – Turn Clockwise to Latch	.step
E5-6-005-UU1	6,32 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	Slotted Recess		Black		Latch		Housing			.step
E5-6-012-510	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool		1–6mm		8mm Hex Recess	Push-to-Close Latch – Single-Point			23mm	Type A – Turn Clockwise to Latch	.step
E5-6-012-520	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool		1–6mm		8mm Hex Recess	Push-to-Close Latch – Single-Point			23mm	Type B – Turn Counter-Clockwise to Latch	.step
Objednávací kód	Základná cena bez DPH	Objednať	Material	Operation	Material	Finish	Access Restriction	Head Style	Door Thickness Range	Color/Appearance	Head Style	Style	Sealed	Type	Grip Range	Rotation	CAD
E5-6-012-TL0	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool		1–6mm		8mm Hex Recess	Push-to-Close Latch – Two-Point				Type B – Turn Counter-Clockwise to Latch	.step
E5-6-012-TR0	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool		1–6mm		8mm Hex Recess	Push-to-Close Latch – Two-Point				Type A – Turn Clockwise to Latch	.step
E5-6-012-UU1	6,32 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool				8mm Hex Recess	Latch		Housing			.step
E5-6-0124-UU1	30,13 €		Stainless Steel			Passivated	Tool				8mm Hex Recess	Latch	Yes	Housing			.step
E5-6-0127-UU1	35,32 €				316Stainless Steel	Passivated	Tool				8mm Hex Recess	Latch	Yes	Housing			.step
E5-6-015-510	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool		1–6mm	Black	8mm Hex Recess	Push-to-Close Latch – Single-Point			23mm	Type A – Turn Clockwise to Latch	.step
E5-6-015-520	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool		1–6mm	Black	8mm Hex Recess	Push-to-Close Latch – Single-Point			23mm	Type B – Turn Counter-Clockwise to Latch	.step
E5-6-015-TL0	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool		1–6mm	Black	8mm Hex Recess	Push-to-Close Latch – Two-Point				Type B – Turn Counter-Clockwise to Latch	.step
E5-6-015-TR0	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool		1–6mm	Black	8mm Hex Recess	Push-to-Close Latch – Two-Point				Type A – Turn Clockwise to Latch	.step
E5-6-015-UU1	6,38 €		Zinc Alloy	Tool Operated		Powder Coat	Tool			Black	8mm Hex Recess	Latch		Housing			.step
E5-6-022-510	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	7 mm Triangle	1–6mm			Push-to-Close Latch – Single-Point			23mm	Type A – Turn Clockwise to Latch	.step
E5-6-022-520	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	7 mm Triangle	1–6mm			Push-to-Close Latch – Single-Point			23mm	Type B – Turn Counter-Clockwise to Latch	.step
E5-6-022-TL0	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	7 mm Triangle	1–6mm			Push-to-Close Latch – Two-Point				Type B – Turn Counter-Clockwise to Latch	.step
E5-6-022-TR0	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	7 mm Triangle	1–6mm			Push-to-Close Latch – Two-Point				Type A – Turn Clockwise to Latch	.step
E5-6-022-UU1	6,32 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	7 mm Triangle				Latch		Housing			.step
Objednávací kód	Základná cena bez DPH	Objednať	Material	Operation	Material	Finish	Access Restriction	Head Style	Door Thickness Range	Color/Appearance	Head Style	Style	Sealed	Type	Grip Range	Rotation	CAD
E5-6-0224-UU1	30,13 €		Stainless Steel			Passivated	Tool	7 mm Triangle				Latch	Yes	Housing			.step
E5-6-0227-UU1	35,32 €				316Stainless Steel	Passivated	Tool	7 mm Triangle				Latch	Yes	Housing			.step
E5-6-023-UU1	2,47 €		Nylon				Tool	7 mm Triangle		Black		Latch		Housing			.step
E5-6-025-510	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	7 mm Triangle	1–6mm	Black		Push-to-Close Latch – Single-Point			23mm	Type A – Turn Clockwise to Latch	.step
E5-6-025-520	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	7 mm Triangle	1–6mm	Black		Push-to-Close Latch – Single-Point			23mm	Type B – Turn Counter-Clockwise to Latch	.step
E5-6-025-TL0	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	7 mm Triangle	1–6mm	Black		Push-to-Close Latch – Two-Point				Type B – Turn Counter-Clockwise to Latch	.step
E5-6-025-TR0	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	7 mm Triangle	1–6mm	Black		Push-to-Close Latch – Two-Point				Type A – Turn Clockwise to Latch	.step
E5-6-025-UU1	6,32 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	7 mm Triangle		Black		Latch		Housing			.step
E5-6-032-510	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	8 mm Triangle	1–6mm			Push-to-Close Latch – Single-Point			23mm	Type A – Turn Clockwise to Latch	.step
E5-6-032-520	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	8 mm Triangle	1–6mm			Push-to-Close Latch – Single-Point			23mm	Type B – Turn Counter-Clockwise to Latch	.step
E5-6-032-TL0	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	8 mm Triangle	1–6mm			Push-to-Close Latch – Two-Point				Type B – Turn Counter-Clockwise to Latch	.step
E5-6-032-TR0	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	8 mm Triangle	1–6mm			Push-to-Close Latch – Two-Point				Type A – Turn Clockwise to Latch	.step
E5-6-0324-UU1	30,13 €		Stainless Steel			Passivated	Tool	8 mm Triangle				Latch	Yes	Housing			.step
E5-6-0327-UU1	35,32 €				316Stainless Steel	Passivated	Tool	8 mm Triangle				Latch	Yes	Housing			.step
E5-6-033-UU1	5,70 €		Nylon				Tool	8 mm Triangle		Black		Latch		Housing			.step
Objednávací kód	Základná cena bez DPH	Objednať	Material	Operation	Material	Finish	Access Restriction	Head Style	Door Thickness Range	Color/Appearance	Head Style	Style	Sealed	Type	Grip Range	Rotation	CAD
E5-6-035-510	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	8 mm Triangle	1–6mm	Black		Push-to-Close Latch – Single-Point			23mm	Type A – Turn Clockwise to Latch	.step
E5-6-035-520	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	8 mm Triangle	1–6mm	Black		Push-to-Close Latch – Single-Point			23mm	Type B – Turn Counter-Clockwise to Latch	.step
E5-6-035-TL0	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	8 mm Triangle	1–6mm	Black		Push-to-Close Latch – Two-Point				Type B – Turn Counter-Clockwise to Latch	.step
E5-6-035-TR0	9,77 €		Zinc Alloy	Tool Operated		Powder Coat	Tool	8 mm Triangle	1–6mm	Black		Push-to-Close Latch – Two-Point				Type A – Turn Clockwise to Latch	.step
E5-6-042-510	9,77 €		Zinc Alloy	Tool Operated		Chrome Plated	Tool	7 mm Square	1–6mm			Push-to-Close Latch – Single-Point			23mm	Type A – Turn Clockwise to Latch	.step
E5-6-042-520	9,77 €		Zinc Alloy	Tool Operated	Stainless Steel	Chrome Plated	Tool	7 mm Square	1–6mm			Push-to-Close Latch – Single-Point			23mm	Type B – Turn Counter-Clockwise to Latch	.step
E5-6-042-TL0	9,77 €		Zinc Alloy	Tool Operated	Stainless Steel	Chrome Plated	Tool	7 mm Square	1–6mm			Push-to-Close Latch – Two-Point				Type B – Turn Counter-Clockwise to Latch	.step
E5-6-042-TR0	9,77 €		Zinc Alloy	Tool Operated	Stainless Steel	Chrome Plated	Tool	7 mm Square	1–6mm			Push-to-Close Latch – Two-Point				Type A – Turn Clockwise to Latch	.step
E5-6-042-UU1	6,32 €		Zinc Alloy	Tool Operated	Stainless Steel	Chrome Plated	Tool	7 mm Square	mm			Latch		Housing			.step
E5-6-0424-UU1	30,13 €		Stainless Steel		Stainless Steel	Passivated	Tool	7 mm Square	mm			Latch	Yes	Housing			.step
E5-6-0427-UU1	35,32 €				316Stainless Steel	Passivated	Tool	7 mm Square	mm			Latch	Yes	Housing			.step
E5-6-043-UU1	5,70 €		Nylon		Stainless Steel		Tool	7 mm Square	mm	Black		Latch		Housing			.step
E5-6-045-510	9,77 €		Zinc Alloy	Tool Operated	Stainless Steel	Powder Coat	Tool	7 mm Square	1–6mm	Black		Push-to-Close Latch – Single-Point				Type A – Turn Clockwise to Latch	.step
E5-6-045-520	9,77 €		Zinc Alloy	Tool Operated	Stainless Steel	Powder Coat	Tool	7 mm Square	1–6mm	Black		Push-to-Close Latch – Single-Point				Type B – Turn Counter-Clockwise to Latch	.step
E5-6-045-TL0	9,77 €		Zinc Alloy	Tool Operated	Stainless Steel	Powder Coat	Tool	7 mm Square	1–6mm	Black		Push-to-Close Latch – Two-Point				Type B – Turn Counter-Clockwise to Latch	.step
Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku.
