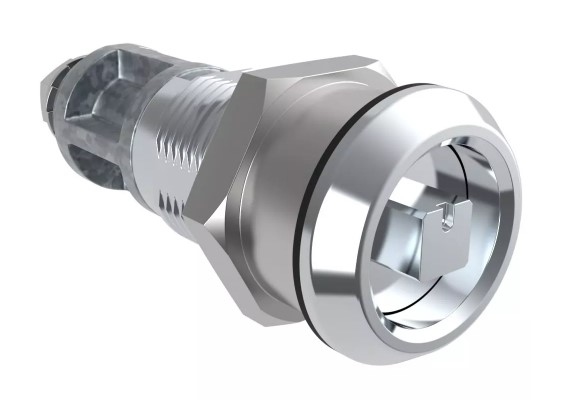

E5–6A – Západkové uzávery s predĺženým kovaním
Popis produktu
| Kód: | E5-6A |
|---|---|
| Výrobca: | Southco |
| Ceny: | sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
zavřít
zavřít
Na stiahnutie
katalogový list technický list
Detail zavřít
| Objednávací kód | Základná cena bez DPH | Objednať | Materiál | Finish | Color/Appearance | Access Restriction | Head Style | Series | Min. Outer Panel Thickness | Max Outer Panel Thickness | Grip Range | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E5-6A-005-UU2 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Slotted Recess | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-005-UU5 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Slotted Recess | 20.1 mm Size | 33mm | 51mm | 34–82mm | ||
| E5-6A-015-UU1 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 8 mm Hex Recess | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| E5-6A-005-UU1 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Slotted Recess | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| E5-6A-005-UU3 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Slotted Recess | 20.1 mm Size | 18mm | 33mm | 18–66mm | ||
| E5-6A-015-UU3 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 8 mm Hex Recess | 20.1 mm Size | 18mm | 33mm | 18–66mm | ||
| E5-6A-222-UU5 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | Railway Standard | 20.1 mm Size | 33mm | 51mm | 34–82mm | ||
| E5-6A-052-UU5 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | 8 mm Square | 20.1 mm Size | 33mm | 51mm | 34–82mm | ||
| E5-6A-005-UU4 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Slotted Recess | 20.1 mm Size | 18mm | 33mm | 68–82mm | ||
| E5-6A-052-UU3 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | 8 mm Square | 20.1 mm Size | 18mm | 33mm | 18–66mm | ||
| E5-6A-222-UU3 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | Railway Standard | 20.1 mm Size | 18mm | 33mm | 18–66mm | ||
| E5-6A-015-UU4 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 8 mm Hex Recess | 20.1 mm Size | 18mm | 33mm | 68–82mm | ||
| E5-6A-015-UU2 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 8 mm Hex Recess | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-232-UU1 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | Blank | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| E5-6A-235-UU1 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Blank | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| Objednávací kód | Základná cena bez DPH | Objednať | Materiál | Finish | Color/Appearance | Access Restriction | Head Style | Series | Min. Outer Panel Thickness | Max Outer Panel Thickness | Grip Range | CAD |
| E5-6A-235-UU5 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Blank | 20.1 mm Size | 33mm | 51mm | 34–82mm | ||
| E5-6A-025-UU2 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 7 mm Triangle | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-042-UU4 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | 7 mm Square | 20.1 mm Size | 18mm | 33mm | 68–82mm | ||
| E5-6A-225-UU3 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Railway Standard | 20.1 mm Size | 18mm | 33mm | 18–66mm | ||
| E5-6A-232-UU2 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | Blank | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-055-UU2 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 8 mm Square | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-015-UU5 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 8 mm Hex Recess | 20.1 mm Size | 33mm | 51mm | 34–82mm | ||
| E5-6A-032-UU2 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | 8 mm Triangle | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-235-UU2 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Blank | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-075-UU2 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 5 mm Double Bitted Recess | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-135-UU5 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Bellcore 216 | 20.1 mm Size | 33mm | 51mm | 34–82mm | ||
| E5-6A-042-UU5 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | 7 mm Square | 20.1 mm Size | 33mm | 51mm | 34–82mm | ||
| E5-6A-065-UU3 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 3 mm Double Bitted Recess | 20.1 mm Size | 18mm | 33mm | 18–66mm | ||
| E5-6A-132-UU2 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | Bellcore 216 | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-065-UU5 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 3 mm Double Bitted Recess | 20.1 mm Size | 33mm | 51mm | 34–82mm | ||
| Objednávací kód | Základná cena bez DPH | Objednať | Materiál | Finish | Color/Appearance | Access Restriction | Head Style | Series | Min. Outer Panel Thickness | Max Outer Panel Thickness | Grip Range | CAD |
| E5-6A-002-UU1 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | Slotted Recess | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| E5-6A-032-UU1 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | 8 mm Triangle | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| E5-6A-035-UU1 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 8 mm Triangle | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| E5-6A-055-UU4 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 8 mm Triangle | 20.1 mm Size | 18mm | 33mm | 68–82mm | ||
| E5-6A-082-UU1 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | 8 mm Triangle | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| E5-6A-065-UU2 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 3 mm Triangle | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-055-UU1 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 8 mm Triangle | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| E5-6A-132-UU3 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | Bellcore 216 | 20.1 mm Size | 18mm | 33mm | 18–66mm | ||
| E5-6A-052-UU4 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | 8 mm Triangle | 20.1 mm Size | 18mm | 33mm | 68–82mm | ||
| E5-6A-195-UU5 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Bellcore Electronics | 20.1 mm Size | 33mm | 51mm | 34–82mm | ||
| E5-6A-225-UU4 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Railway Standard | 20.1 mm Size | 18mm | 33mm | 68–82mm | ||
| E5-6A-052-UU1 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | 8 mm Triangle | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| E5-6A-192-UU1 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | Bellcore Electronics | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| E5-6A-195-UU1 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Bellcore Electronics | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| E5-6A-195-UU4 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Bellcore Electronics | 20.1 mm Size | 18mm | 33mm | 68–82mm | ||
| Objednávací kód | Základná cena bez DPH | Objednať | Materiál | Finish | Color/Appearance | Access Restriction | Head Style | Series | Min. Outer Panel Thickness | Max Outer Panel Thickness | Grip Range | CAD |
| E5-6A-085-UU1 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 8 mm Square Recess | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| E5-6A-035-UU3 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 8 mm Triangle | 20.1 mm Size | 18mm | 33mm | 18–66mm | ||
| E5-6A-212-UU1 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | Recessed Slot (Tamper Resistant) | 20.1 mm Size | 1mm | 18mm | 5–53mm | ||
| E5-6A-212-UU5 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | Recessed Slot (Tamper Resistant) | 20.1 mm Size | 33mm | 51mm | 34–82mm | ||
| E5-6A-002-UU3 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | Slotted Recess | 20.1 mm Size | 18mm | 33mm | 18–66mm | ||
| E5-6A-085-UU5 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 8 mm Square Recess | 20.1 mm Size | 33mm | 51mm | 34–82mm | ||
| E5-6A-082-UU2 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | 8 mm Square Recess | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-132-UU4 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | Bellcore 216 | 20.1 mm Size | 18mm | 33mm | 68–82mm | ||
| E5-6A-195-UU2 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Bellcore Electronics | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-072-UU3 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | 5 mm Double Bitted Recess | 20.1 mm Size | 18mm | 33mm | 18–66mm | ||
| E5-6A-012-UU2 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | 8 mm Hex Recess | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-072-UU2 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | 5 mm Double Bitted Recess | 20.1 mm Size | 1mm | 18mm | 54–82mm | ||
| E5-6A-212-UU3 | 9,72 € | Zinc Alloy | Chrome Plated | Bright | Auto Relock | Recessed Slot (Tamper Resistant) | 20.1 mm Size | 18mm | 33mm | 18–66mm | ||
| E5-6A-135-UU4 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | Bellcore 216 | 20.1 mm Size | 18mm | 33mm | 68–82mm | ||
| E5-6A-085-UU4 | 9,72 € | Zinc Alloy | Powder Coat | Black | Auto Relock | 8 mm Square Recess | 20.1 mm Size | 18mm | 33mm | 68–82mm | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | ||||||||||||
