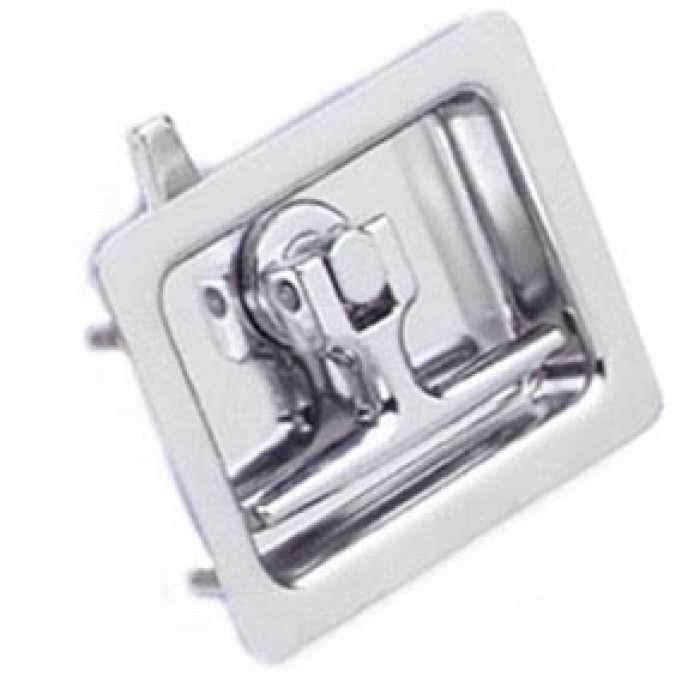

24–20 – zapustený uzáver s T držadlom
Popis tovaru
Kód: | 24-20 |
---|---|
Výrobca: | Southco |
Ceny: | sú uvedené dole na stránke v tabuľke variánt produktu alebo na dopyt cez formulár nižšie. |
Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
zavřít
zavřít
Detail zavřít
Objednací kód | Základná cena bez DPH | Objednat | Material | Profil | Operation | Installation | Finish | Access Restriction | Gasketed | Color/Appearance | Sealed | Grip Range | Pullup | Door Thickness Range | Group | Latching Points | Handle Material | CAD |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
24-20-101-10 | 80,16 € | Flush | Turn Clockwise to Latch / Lock | Zinc Immersion Coating | No Restriction | No | 11,40–34,30mm | 18,2n | Flush (cup) Latches | Zinc Alloy | ||||||||
24-20-101-35 | 117,09 € | Stainless Steel | Flush | Turn Clockwise to Latch / Lock | Passivated | No Restriction | No | 11,40–34,30mm | 18,2n | Flush (cup) Latches | ||||||||
24-20-102-10 | 80,16 € | Flush | Turn Clockwise to Latch / Lock | Zinc Immersion Coating | No Restriction | No | 31,80–50,20mm | 18,4n | 7,9mm | Flush (cup) Latches | Zinc Alloy | |||||||
24-20-102-35 | 117,09 € | Stainless Steel | Flush | Turn Clockwise to Latch / Lock | Passivated | No Restriction | No | 31,80–50,20mm | 18,4n | 7,9mm | Flush (cup) Latches | |||||||
24-20-104-10 | 80,16 € | Flush | Turn Clockwise to Latch / Lock | Zinc Immersion Coating | No Restriction | No | 44,50–61,90mm | 17,4n | 7,9mm | Flush (cup) Latches | Zinc Alloy | |||||||
24-20-104-35 | 117,09 € | Stainless Steel | Flush | Turn Clockwise to Latch / Lock | Passivated | No Restriction | No | 44,50–61,90mm | 17,4n | 7,9mm | Flush (cup) Latches | |||||||
24-20-302-10 | 79,05 € | Steel | Flush | Turn Clockwise to Latch / Lock | With Mounting Studs | Zinc Immersion Coating | No Restriction | No | No | 27,80–39,70mm | Single, Two or Three point | |||||||
24-20-302-35 | 123,36 € | Stainless Steel | Flush | Turn Clockwise to Latch / Lock | With Mounting Studs | No Restriction | No | Polished | No | 27,80–39,70mm | Single, Two or Three point | |||||||
24-20-312-10 | 91,78 € | Steel | Flush | Turn Clockwise to Latch / Lock | With Mounting Studs | Zinc Immersion Coating | No Restriction | Yes | No | 27,80–39,70mm | Single, Two or Three point | |||||||
24-20-312-35 | 132,65 € | Stainless Steel | Flush | Turn Clockwise to Latch / Lock | With Mounting Studs | No Restriction | Yes | Polished | No | 27,80–39,70mm | Single, Two or Three point | |||||||
24-20-402-10 | 79,05 € | Steel | Flush | Turn Counterclockwise to Latch / Lock | With Mounting Studs | Zinc Immersion Coating | No Restriction | No | No | 27,80–39,70mm | Single, Two or Three point | |||||||
24-20-402-35 | 123,36 € | Stainless Steel | Flush | Turn Counterclockwise to Latch / Lock | With Mounting Studs | No Restriction | No | Polished | No | 27,80–39,70mm | Single, Two or Three point | |||||||
24-20-412-10 | 90,05 € | Steel | Flush | Turn Counterclockwise to Latch / Lock | With Mounting Studs | Zinc Immersion Coating | No Restriction | Yes | No | 27,80–39,70mm | Single, Two or Three point | |||||||
24-20-412-35 | 132,65 € | Stainless Steel | Flush | Turn Counterclockwise to Latch / Lock | With Mounting Studs | No Restriction | Yes | Polished | No | 27,80–39,70mm | Single, Two or Three point | |||||||
24-20-621-10 | 139,16 € | Steel | Flush | Turn Clockwise to Latch / Lock | With Mounting Studs | Zinc Immersion Coating | No Restriction | No | 17,50–20,60mm | Single, Two or Three point | ||||||||
Objednací kód | Základná cena bez DPH | Objednat | Material | Profil | Operation | Installation | Finish | Access Restriction | Gasketed | Color/Appearance | Sealed | Grip Range | Pullup | Door Thickness Range | Group | Latching Points | Handle Material | CAD |
24-20-622-10 | 139,16 € | Steel | Flush | Turn Clockwise to Latch / Lock | With Mounting Studs | Zinc Immersion Coating | No Restriction | No | 31,80–49,20mm | Single, Two or Three point | ||||||||
24-20-623-10 | 139,16 € | Steel | Flush | Turn Clockwise to Latch / Lock | With Mounting Studs | Zinc Immersion Coating | No Restriction | No | 59,50–62mm | Single, Two or Three point | ||||||||
24-20-812-10 | 115,84 € | Steel | Flush | Turn Clockwise to Latch / Lock | With Mounting Studs | Zinc Immersion Coating | Key Locking | No | No | 27,80–39,70mm | Single, Two or Three point | |||||||
24-20-812-35 | 148,87 € | Stainless Steel | Flush | Turn Clockwise to Latch / Lock | With Mounting Studs | Key Locking | No | Polished | No | 27,80–39,70mm | Single, Two or Three point | |||||||
24-20-912-10 | 122,75 € | Steel | Flush | Turn Counterclockwise to Latch / Lock | With Mounting Studs | Zinc Immersion Coating | Key Locking | No | No | 27,80–39,70mm | Single, Two or Three point | |||||||
24-20-912-35 | 148,87 € | Stainless Steel | Flush | Turn Counterclockwise to Latch / Lock | With Mounting Studs | Key Locking | No | Polished | No | 27,80–39,70mm | Single, Two or Three point | |||||||
Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | ||||||||||||||||||
