57–10 – samodoťahovacie kompresné uzávery
Popis produktu
| Kód: | 57-10 |
|---|---|
| Výrobca: | Southco |
| Ceny: | sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
zavřít
zavřít
Na stiahnutie
katalogový list technický list Detail zavřít
| Objednávací kód | Základná cena bez DPH | Objednať | Material | Profil | Installation | Finish | Access Restriction | Color/Appearance | Head Style | Grip Range | Pullup | Door Thickness Range | Group | Spring | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 57-10-101-10 | 4,92 € | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | Tool | Slotted Head | 1,60–9,50mm | 7,9n | Spring Latches | Smooth | ||||
| 57-10-101-40 | 11,87 € | Stainless Steel | Standard | Rivet / Screw | Passivated | Tool | Slotted Head | 1,60–9,50mm | 7,9n | Spring Latches | Smooth | ||||
| 57-10-102-40 | 10,70 € | Stainless Steel | Standard | Rivet / Screw | Passivated | Tool | Slotted Head | 1,60–9,50mm | 7,9n | Spring Latches | Smooth | ||||
| 57-10-102-50 | 6,08 € | Steel | Standard | Rivet / Screw | Copper plated | Tool | Slotted Head | 1,60–9,50mm | 7,9n | Spring Latches | Smooth | ||||
| 57-10-103-10 | 8,77 € | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | Tool | Slotted Head | 6,40–14,30mm | 7,9n | Spring Latches | Smooth | ||||
| 57-10-111-10 | 7,49 € | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | Tool | Slotted Head | 1,60–9,50mm | 7,9n | Spring Latches | Serrated | ||||
| 57-10-112-50 | 8,91 € | Steel | Standard | Rivet / Screw | Copper plated | Tool | Slotted Head | 1,60–9,50mm | 7,9n | Spring Latches | Serrated | ||||
| 57-10-114-50 | na otázku | Steel | Standard | Rivet / Screw | Copper plated | Tool | Slotted Head | 6,40–14,30mm | 7,9n | Spring Latches | Serrated | ||||

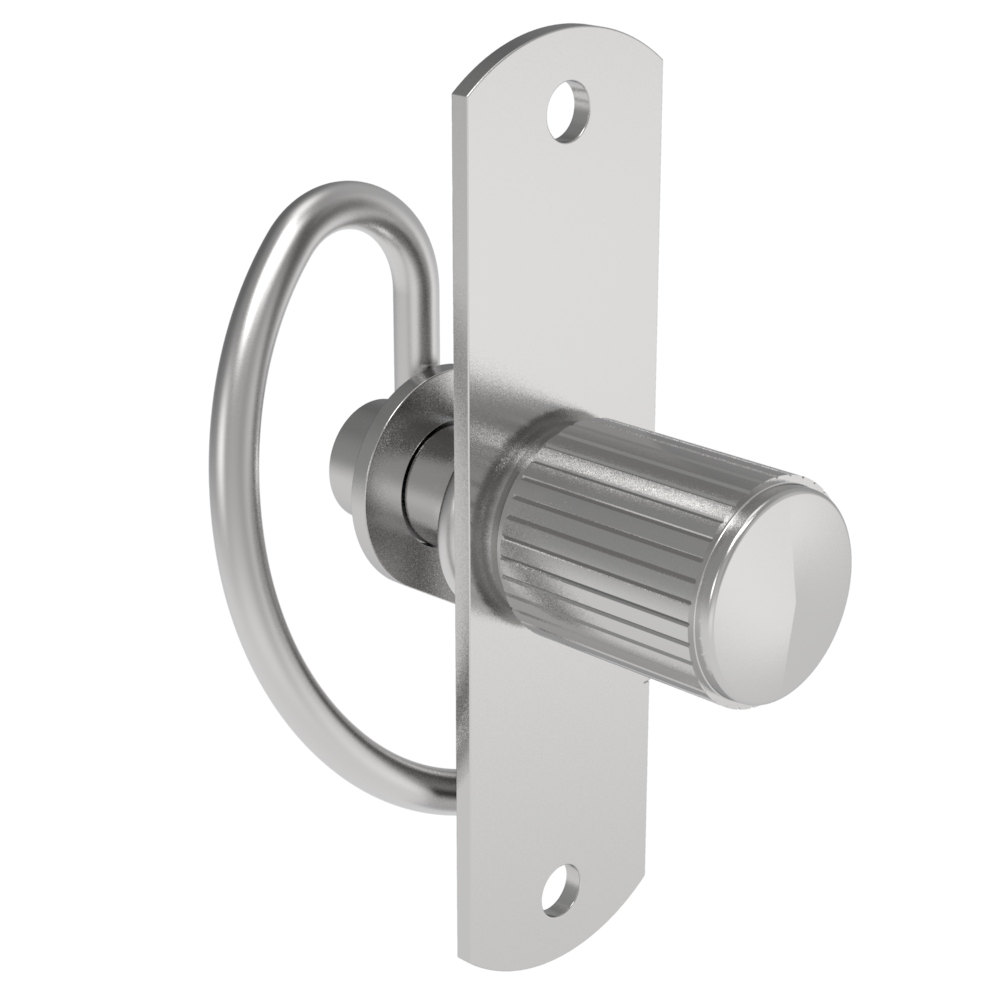

| 57-10-201-10 | 6,21 € | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | No Restriction | Bright | Knurled | 1,60–9,50mm | 7,9n | Spring Latches | Smooth | |||
| 57-10-201-40 | 14,77 € | Stainless Steel | Standard | Rivet / Screw | Passivated | No Restriction | Bright | Knurled | 1,60–9,50mm | 7,9n | Spring Latches | Smooth | |||
| 57-10-202-40 | 13,36 € | Stainless Steel | Standard | Rivet / Screw | Passivated | No Restriction | Bright | Knurled | 1,60–9,50mm | 7,9n | Spring Latches | Smooth | |||
| 57-10-202-50 | 7,55 € | Steel | Standard | Rivet / Screw | Copper plated | No Restriction | Bright | Knurled | 1,60–9,50mm | 7,9n | Spring Latches | Smooth | |||
| 57-10-203-10 | 7,04 € | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | No Restriction | Bright | Knurled | 6,40–14,30mm | 7,9n | Spring Latches | Smooth | |||
| 57-10-211-10 | 9,36 € | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | No Restriction | Bright | Knurled | 1,60–9,50mm | 7,9n | Spring Latches | Serrated | |||
| 57-10-212-50 | 11,32 € | Steel | Standard | Rivet / Screw | Copper plated | No Restriction | Bright | Knurled | 1,60–9,50mm | 7,9n | Spring Latches | Serrated | |||
| Objednávací kód | Základná cena bez DPH | Objednať | Material | Profil | Installation | Finish | Access Restriction | Color/Appearance | Head Style | Grip Range | Pullup | Door Thickness Range | Group | Spring | CAD |
| 57-10-213-10 | na otázku | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | No Restriction | Bright | Knurled | 6,40–14,30mm | 7,9n | Spring Latches | Serrated | |||
| 57-10-301-10 | 8,85 € | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | No Restriction | T-Bar Head | 1,60–9,50mm | 7,9n | Spring Latches | Smooth | ||||
| 57-10-311-10 | 13,32 € | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | No Restriction | T-Bar Head | 1,60–9,50mm | 7,9n | Spring Latches | Serrated | ||||
| 57-10-312-50 | 16,26 € | Steel | Standard | Rivet / Screw | Copper plated | No Restriction | T-Bar Head | 1,60–9,50mm | 7,9n | Spring Latches | Serrated | ||||

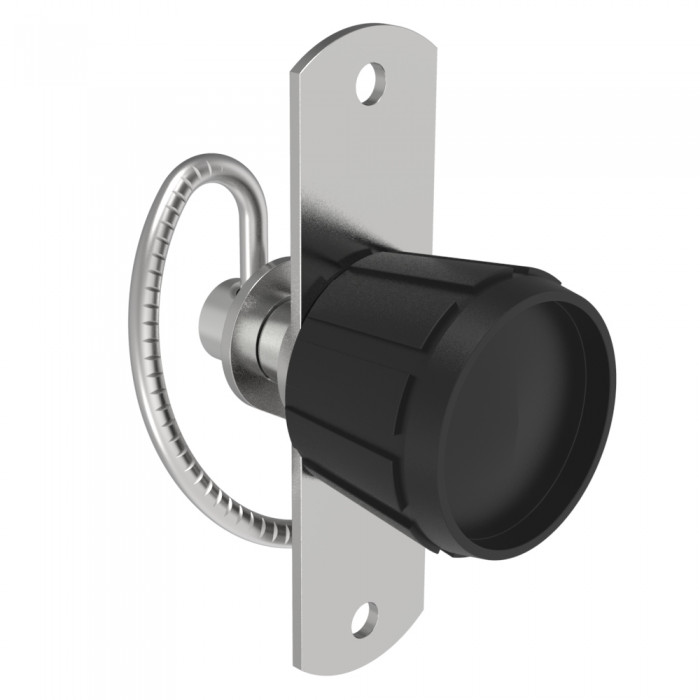

| 57-10-401-10 | 7,85 € | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | No Restriction | Black | Knob Style | 1,60–9,50mm | 7,9n | 6,4mm | Spring Latches | Smooth | ||
| 57-10-402-50 | 9,75 € | Steel | Standard | Rivet / Screw | Copper plated | No Restriction | Black | Knob Style | 1,60–9,50mm | 7,9n | 6,4mm | Spring Latches | Smooth | ||
| 57-10-403-10 | 12,75 € | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | No Restriction | Black | Knob Style | 6,40–14,30mm | 7,9n | 6,4mm | Spring Latches | Smooth | ||
| 57-10-411-10 | 11,94 € | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | No Restriction | Black | Knob Style | 1,60–9,50mm | 7,9n | 6,4mm | Spring Latches | Serrated | ||
| 57-10-412-50 | 10,87 € | Steel | Standard | Rivet / Screw | Copper plated | No Restriction | Black | Knob Style | 1,60–9,50mm | 7,9n | 6,4mm | Spring Latches | Serrated | ||
| 57-10-413-10 | na otázku | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | No Restriction | Black | Knob Style | 6,40–14,30mm | 7,9n | 6,4mm | Spring Latches | Serrated | ||
| 57-10-414-50 | na otázku | Steel | Standard | Rivet / Screw | Copper plated | No Restriction | Black | Knob Style | 6,40–14,30mm | 7,9n | 6,4mm | Spring Latches | Serrated | ||
| 57-10-801-10 | 5,94 € | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | Tool | Hex Recess | 1,60–9,50mm | 7,9n | Spring Latches | Smooth | ||||
| 57-10-802-50 | 7,34 € | Steel | Standard | Rivet / Screw | Copper plated | Tool | Hex Recess | 1,60–9,50mm | 7,9n | Spring Latches | Smooth | ||||
| 57-10-811-10 | 8,85 € | Steel | Standard | Rivet / Screw | Zinc Plate, Bright chromate | Tool | Hex Recess | 1,60–9,50mm | 7,9n | Spring Latches | Serrated | ||||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||||||
