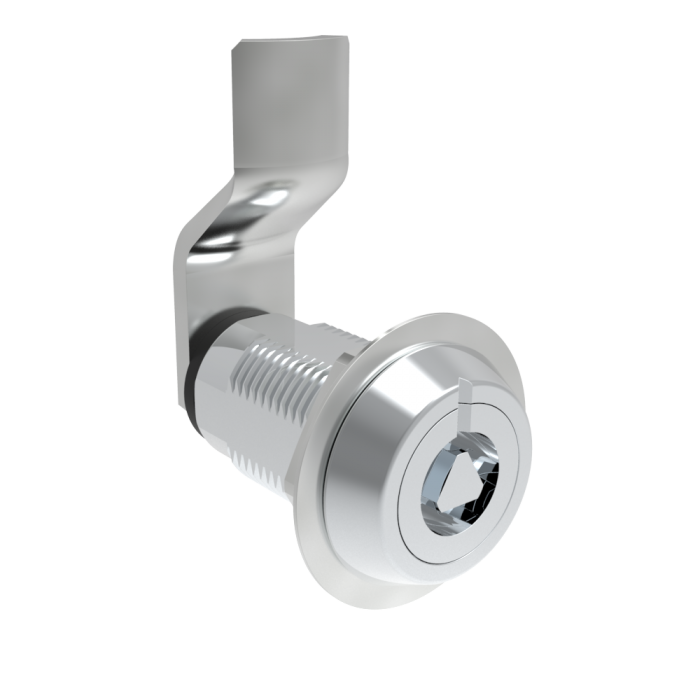

E3–123 – VISE ACTION® Kompresné zámky

Popis tovaru

Kód:	E3-123
Výrobca:	Southco
Ceny:	sú uvedené dole na stránke v tabuľke variánt produktu alebo na dopyt cez formulár nižšie.
Termín dodania:	bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií.

zavřít

3D modely

JMÉNO:
E-MAIL:
WWW:
TEXT:

Díl – objednací číslo: E3-123 – VISE ACTION® Kompresné zámky | E3-123
Formát 3D:

Specifikujte prosím do pole níže konkrétní objednací kód, ke kterému žádáte zaslat 3D model nebo si jej stáhněte z tabulky dostupných variant v dolní části stránky produktu a to tlačítkem 3D nebo Stáhnout.

Objednací kód: Firma: Jméno: Příjmení: E-mail: Telefon: Text:

Vážení zákazníci, informujeme vás v súlade s nariadením EÚ, že poskytnuté informácie nie sú nami ďalej nijako používané ani uschované a slúžia len na vybavenie tejto žiadosti. Viac informácií TU.

zavřít

Na stiahnutie

katalogový list

technický list

Detail zavřít

Zruš filter
Objednací kód	Základná cena bez DPH	Objednat	Material	Finish	Access Restriction	Color/Appearance	Head Style	Grip Type	Grip Range	Door Thickness Range	Grip Range	Cam Attached	Rotation	Size Series	CAD
E3-123-000	72,73 €		Stainless Steel	Passivated	Tool	Silver	7mm Hex Recess	Fixed		18mm	20mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0006	46,76 €		Aluminum Alloy	Powder Coat	Tool	Clear	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-001	25,62 €		Zinc Alloy	Chrome Plated	Tool	Bright	7mm Hex Recess	Fixed	15–17mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-005	23,35 €		Zinc Alloy	Powder Coat	Tool	Black	7mm Hex Recess	Fixed	15–17mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0059	49,85 €		Aluminum Alloy	Anodized	Tool	Black	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-010	72,73 €		Stainless Steel	Passivated	Tool	Silver	7mm Hex Recess	Fixed		18mm	22mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0106	46,76 €		Aluminum Alloy	Powder Coat	Tool	Clear	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-011	25,62 €		Zinc Alloy	Chrome Plated	Tool	Bright	7mm Hex Recess	Fixed	17–19mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-015	23,35 €		Zinc Alloy	Powder Coat	Tool	Black	7mm Hex Recess	Fixed	17–19mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0159	49,85 €		Aluminum Alloy	Anodized	Tool	Black	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-020	72,73 €		Stainless Steel	Passivated	Tool	Silver	7mm Hex Recess	Fixed		18mm	24mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0206	46,76 €		Aluminum Alloy	Powder Coat	Tool	Clear	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-021	25,62 €		Zinc Alloy	Chrome Plated	Tool	Bright	7mm Hex Recess	Fixed	19–21mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-025	23,35 €		Zinc Alloy	Powder Coat	Tool	Black	7mm Hex Recess	Fixed	19–21mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0259	49,85 €		Aluminum Alloy	Anodized	Tool	Black	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
Objednací kód	Základná cena bez DPH	Objednat	Material	Finish	Access Restriction	Color/Appearance	Head Style	Grip Type	Grip Range	Door Thickness Range	Grip Range	Cam Attached	Rotation	Size Series	CAD
E3-123-030	72,73 €		Stainless Steel	Passivated	Tool	Silver	7mm Hex Recess	Fixed		18mm	26mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0306	46,76 €		Aluminum Alloy	Powder Coat	Tool	Clear	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-031	25,62 €		Zinc Alloy	Chrome Plated	Tool	Bright	7mm Hex Recess	Fixed	21–23mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-035	23,35 €		Zinc Alloy	Powder Coat	Tool	Black	7mm Hex Recess	Fixed	21–23mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0359	49,85 €		Aluminum Alloy	Anodized	Tool	Black	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-040	72,73 €		Stainless Steel	Passivated	Tool	Silver	7mm Hex Recess	Fixed		18mm	28mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0406	46,76 €		Aluminum Alloy	Powder Coat	Tool	Clear	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-041	25,62 €		Zinc Alloy	Chrome Plated	Tool	Bright	7mm Hex Recess	Fixed	23–25mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-045	23,35 €		Zinc Alloy	Powder Coat	Tool	Black	7mm Hex Recess	Fixed	23–25mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0459	49,85 €		Aluminum Alloy	Anodized	Tool	Black	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-050	72,73 €		Stainless Steel	Passivated	Tool	Silver	7mm Hex Recess	Fixed		18mm	32mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0506	46,76 €		Aluminum Alloy	Powder Coat	Tool	Clear	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-051	25,62 €		Zinc Alloy	Chrome Plated	Tool	Bright	7mm Hex Recess	Fixed	25–27mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-055	23,35 €		Zinc Alloy	Powder Coat	Tool	Black	7mm Hex Recess	Fixed	25–27mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0559	49,85 €		Aluminum Alloy	Anodized	Tool	Black	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
Objednací kód	Základná cena bez DPH	Objednat	Material	Finish	Access Restriction	Color/Appearance	Head Style	Grip Type	Grip Range	Door Thickness Range	Grip Range	Cam Attached	Rotation	Size Series	CAD
E3-123-060	72,73 €		Stainless Steel	Passivated	Tool	Silver	7mm Hex Recess	Fixed		18mm	32mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0606	46,76 €		Aluminum Alloy	Powder Coat	Tool	Clear	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-061	25,62 €		Zinc Alloy	Chrome Plated	Tool	Bright	7mm Hex Recess	Fixed	27–29mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-065	23,35 €		Zinc Alloy	Powder Coat	Tool	Black	7mm Hex Recess	Fixed	27–29mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0659	49,85 €		Aluminum Alloy	Anodized	Tool	Black	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-070	72,73 €		Stainless Steel	Passivated	Tool	Silver	7mm Hex Recess	Fixed		18mm	34mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0706	46,76 €		Aluminum Alloy	Powder Coat	Tool	Clear	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-071	25,62 €		Zinc Alloy	Chrome Plated	Tool	Bright	7mm Hex Recess	Fixed	29–31mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-075	23,35 €		Zinc Alloy	Powder Coat	Tool	Black	7mm Hex Recess	Fixed	29–31mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0759	49,85 €		Aluminum Alloy	Anodized	Tool	Black	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-080	72,73 €		Stainless Steel	Passivated	Tool	Silver	7mm Hex Recess	Fixed		18mm	36mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0806	46,76 €		Aluminum Alloy	Powder Coat	Tool	Clear	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-081	25,62 €		Zinc Alloy	Chrome Plated	Tool	Bright	7mm Hex Recess	Fixed	31–33mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-085	23,35 €		Zinc Alloy	Powder Coat	Tool	Black	7mm Hex Recess	Fixed	31–33mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0859	49,85 €		Aluminum Alloy	Anodized	Tool	Black	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
Objednací kód	Základná cena bez DPH	Objednat	Material	Finish	Access Restriction	Color/Appearance	Head Style	Grip Type	Grip Range	Door Thickness Range	Grip Range	Cam Attached	Rotation	Size Series	CAD
E3-123-090	72,73 €		Stainless Steel	Passivated	Tool	Silver	7mm Hex Recess	Fixed		18mm	38mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0906	46,76 €		Aluminum Alloy	Powder Coat	Tool	Clear	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-091	25,62 €		Zinc Alloy	Chrome Plated	Tool	Bright	7mm Hex Recess	Fixed	33–35mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-095	23,35 €		Zinc Alloy	Powder Coat	Tool	Black	7mm Hex Recess	Fixed	33–35mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-0959	49,85 €		Aluminum Alloy	Anodized	Tool	Black	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-100	72,73 €		Stainless Steel	Passivated	Tool	Silver	7mm Hex Recess	Fixed		18mm	40mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-1006	46,76 €		Aluminum Alloy	Powder Coat	Tool	Clear	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-101	25,62 €		Zinc Alloy	Chrome Plated	Tool	Bright	7mm Hex Recess	Fixed	35–37mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-105	23,35 €		Zinc Alloy	Powder Coat	Tool	Black	7mm Hex Recess	Fixed	35–37mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-1059	49,85 €		Aluminum Alloy	Anodized	Tool	Black	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-110	72,73 €		Stainless Steel	Passivated	Tool	Silver	7mm Hex Recess	Fixed		18mm	42mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-1106	46,76 €		Aluminum Alloy	Powder Coat	Tool	Clear	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-111	25,62 €		Zinc Alloy	Chrome Plated	Tool	Bright	7mm Hex Recess	Fixed	37–39mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-115	23,35 €		Zinc Alloy	Powder Coat	Tool	Black	7mm Hex Recess	Fixed	37–39mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-123-1159	49,85 €		Aluminum Alloy	Anodized	Tool	Black	7mm Hex Recess	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku.
