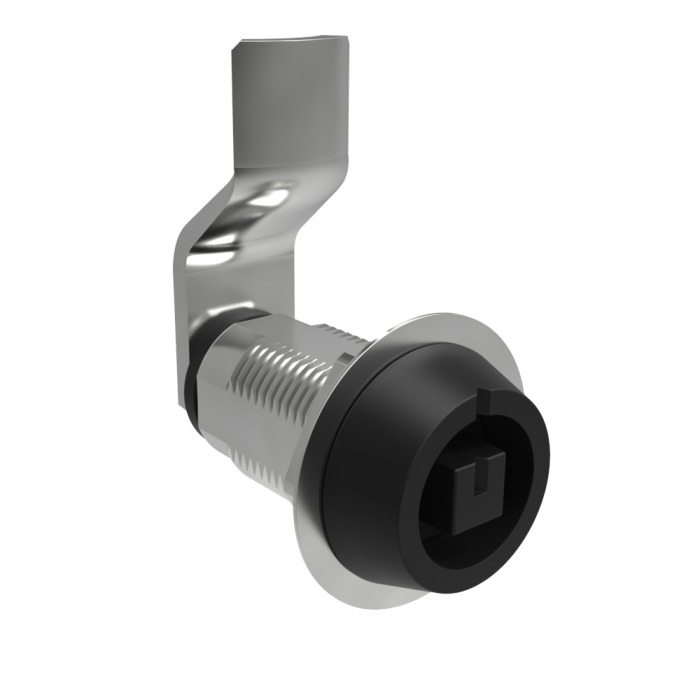

E3–1211 – VISE ACTION® Kompresné zámky

Popis produktu

Kód:	E3-1211
Výrobca:	Southco
Ceny:	sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie.
Termín dodania:	bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií.

zavřít

3D modely

JMÉNO:
E-MAIL:
WWW:
TEXT:

Díl – objednací číslo: E3-1211 – VISE ACTION® Kompresné zámky | E3-1211
Formát 3D:

Specifikujte prosím do pole níže konkrétní objednací kód, ke kterému žádáte zaslat 3D model nebo si jej stáhněte z tabulky dostupných variant v dolní části stránky produktu a to tlačítkem 3D nebo Stáhnout.

Objednací kód: Firma: Jméno: Příjmení: E-mail: Telefon: Text:

Vážení zákazníci, informujeme vás v súlade s nariadením EÚ, že poskytnuté informácie nie sú nami ďalej nijako používané ani uschované a slúžia len na vybavenie tejto žiadosti. Viac informácií TU

zavřít

Na stiahnutie

katalogový list

technický list

Detail zavřít

Zruš filter
Objednávací kód	Základná cena bez DPH	Objednať	Material	Finish	Access Restriction	Color/Appearance	Head Style	Grip Type	Grip Range	Door Thickness Range	Grip Range	Cam Attached	Rotation	Size Series	CAD
E3-1211-000	78,47 €		Stainless Steel	Passivated	Tool	Silver	Railway Standard	Fixed		18mm	20mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0006	na otázku	Poptat cenu	Aluminum Alloy	Powder Coat	Tool	Clear	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-001	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	Railway Standard	Fixed	15–17mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1211-005	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	Railway Standard	Fixed	15–17mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0059	na otázku	Poptat cenu	Aluminum Alloy	Anodized	Tool	Black	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-010	78,47 €		Stainless Steel	Passivated	Tool	Silver	Railway Standard	Fixed		18mm	22mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0106	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-011	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	Railway Standard	Fixed	17–19mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-015	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	Railway Standard	Fixed	17–19mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0159	56,92 €		Aluminum Alloy	Anodized	Tool	Black	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-020	78,47 €		Stainless Steel	Passivated	Tool	Silver	Railway Standard	Fixed		18mm	24mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0206	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-021	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	Railway Standard	Fixed	19–21mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-025	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	Railway Standard	Fixed	19–21mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0259	56,92 €		Aluminum Alloy	Anodized	Tool	Black	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
Objednávací kód	Základná cena bez DPH	Objednať	Material	Finish	Access Restriction	Color/Appearance	Head Style	Grip Type	Grip Range	Door Thickness Range	Grip Range	Cam Attached	Rotation	Size Series	CAD
E3-1211-030	78,47 €		Stainless Steel	Passivated	Tool	Silver	Railway Standard	Fixed		18mm	26mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0306	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-031	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	Railway Standard	Fixed	21–23mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-035	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	Railway Standard	Fixed	21–23mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0359	56,92 €		Aluminum Alloy	Anodized	Tool	Black	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-040	78,47 €		Stainless Steel	Passivated	Tool	Silver	Railway Standard	Fixed		18mm	28mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0406	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-041	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	Railway Standard	Fixed	23–25mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-045	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	Railway Standard	Fixed	23–25mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1211-0459	56,92 €		Aluminum Alloy	Anodized	Tool	Black	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-050	78,47 €		Stainless Steel	Passivated	Tool	Silver	Railway Standard	Fixed		18mm	30mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0506	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-051	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	Railway Standard	Fixed	25–27mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-055	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	Railway Standard	Fixed	25–27mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0559	56,92 €		Aluminum Alloy	Anodized	Tool	Black	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
Objednávací kód	Základná cena bez DPH	Objednať	Material	Finish	Access Restriction	Color/Appearance	Head Style	Grip Type	Grip Range	Door Thickness Range	Grip Range	Cam Attached	Rotation	Size Series	CAD
E3-1211-060	78,47 €		Stainless Steel	Passivated	Tool	Silver	Railway Standard	Fixed		18mm	32mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0606	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-061	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	Railway Standard	Fixed	27–29mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-065	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	Railway Standard	Fixed	27–29mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1211-0659	56,92 €		Aluminum Alloy	Anodized	Tool	Black	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-070	78,47 €		Stainless Steel	Passivated	Tool	Silver	Railway Standard	Fixed		18mm	34mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0706	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-071	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	Railway Standard	Fixed	29–31mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1211-075	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	Railway Standard	Fixed	29–31mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0759	56,92 €		Aluminum Alloy	Anodized	Tool	Black	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-080	78,47 €		Stainless Steel	Passivated	Tool	Silver	Railway Standard	Fixed		18mm	36mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0806	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-081	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	Railway Standard	Fixed	31–33mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-085	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	Railway Standard	Fixed	31–33mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0859	56,92 €		Aluminum Alloy	Anodized	Tool	Black	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
Objednávací kód	Základná cena bez DPH	Objednať	Material	Finish	Access Restriction	Color/Appearance	Head Style	Grip Type	Grip Range	Door Thickness Range	Grip Range	Cam Attached	Rotation	Size Series	CAD
E3-1211-090	78,47 €		Stainless Steel	Passivated	Tool	Silver	Railway Standard	Fixed		18mm	38mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0906	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-091	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	Railway Standard	Fixed	33–35mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-095	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	Railway Standard	Fixed	33–35mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-0959	56,92 €		Aluminum Alloy	Anodized	Tool	Black	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-100	78,47 €		Stainless Steel	Passivated	Tool	Silver	Railway Standard	Fixed		18mm	40mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-1006	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-101	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	Railway Standard	Fixed	35–37mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-105	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	Railway Standard	Fixed	35–37mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-1059	56,92 €		Aluminum Alloy	Anodized	Tool	Black	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-110	78,47 €		Stainless Steel	Passivated	Tool	Silver	Railway Standard	Fixed		18mm	42mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-1106	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-111	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	Railway Standard	Fixed	37–39mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-115	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	Railway Standard	Fixed	37–39mm	18mm		Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1211-1159	56,92 €		Aluminum Alloy	Anodized	Tool	Black	Railway Standard	Fixed				Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku.
