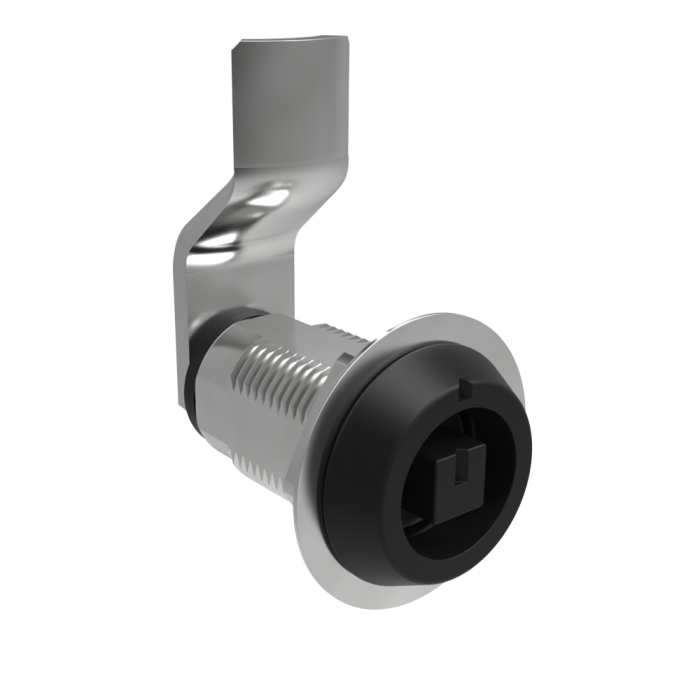

E3–1210 – VISE ACTION® Kompresné zámky

Popis tovaru

Kód:	E3-1210
Výrobca:	Southco
Ceny:	sú uvedené dole na stránke v tabuľke variánt produktu alebo na dopyt cez formulár nižšie.
Termín dodania:	bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií.

zavřít

3D modely

JMÉNO:
E-MAIL:
WWW:
TEXT:

Díl – objednací číslo: E3-1210 – VISE ACTION® Kompresné zámky | E3-1210
Formát 3D:

Specifikujte prosím do pole níže konkrétní objednací kód, ke kterému žádáte zaslat 3D model nebo si jej stáhněte z tabulky dostupných variant v dolní části stránky produktu a to tlačítkem 3D nebo Stáhnout.

Objednací kód: Firma: Jméno: Příjmení: E-mail: Telefon: Text:

Vážení zákazníci, informujeme vás v súlade s nariadením EÚ, že poskytnuté informácie nie sú nami ďalej nijako používané ani uschované a slúžia len na vybavenie tejto žiadosti. Viac informácií TU.

zavřít

Na stiahnutie

katalogový list

technický list

Detail zavřít

Zruš filter
Objednací kód	Základná cena bez DPH	Objednat	Material	Finish	Access Restriction	Color/Appearance	Head Style	Grip Type	Grip Range	Door Thickness Range	Cam Attached	Rotation	Size Series	CAD
E3-1210-0006	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-001	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	15–17mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-005	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	15–17mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-0059	na dotaz	Poptat cenu	Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-0106	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-011	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	17–19mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-015	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	17–19mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-0159	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-0206	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-021	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	19–21mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-025	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	19–21mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-0259	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-0306	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-031	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	21–23mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-035	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	21–23mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
Objednací kód	Základná cena bez DPH	Objednat	Material	Finish	Access Restriction	Color/Appearance	Head Style	Grip Type	Grip Range	Door Thickness Range	Cam Attached	Rotation	Size Series	CAD
E3-1210-0359	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-0406	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-041	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	23–25mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-045	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	23–25mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-0459	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-0506	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-051	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	25–27mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-055	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	25–27mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-0559	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-0606	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-061	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	27–29mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-065	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	27–29mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-0659	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-0706	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-071	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	29–31mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
Objednací kód	Základná cena bez DPH	Objednat	Material	Finish	Access Restriction	Color/Appearance	Head Style	Grip Type	Grip Range	Door Thickness Range	Cam Attached	Rotation	Size Series	CAD
E3-1210-075	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	29–31mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-0759	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-0806	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-081	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	31–33mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-085	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	31–33mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-0859	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-0906	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-091	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	33–35mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-095	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	33–35mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-0959	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-1006	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-101	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	35–37mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-105	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	35–37mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-1059	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-1106	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
Objednací kód	Základná cena bez DPH	Objednat	Material	Finish	Access Restriction	Color/Appearance	Head Style	Grip Type	Grip Range	Door Thickness Range	Cam Attached	Rotation	Size Series	CAD
E3-1210-111	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	37–39mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-115	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	37–39mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-1159	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-1206	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-121	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	39–41mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-125	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	39–41mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-1259	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-1306	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-131	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	41–43mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-135	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	41–43mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-1359	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-1406	53,38 €		Aluminum Alloy	Powder Coat	Tool	Clear	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
E3-1210-141	27,64 €		Zinc Alloy	Chrome Plated	Tool	Bright	8mm Hex Recess	Fixed	43–45mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-145	25,21 €		Zinc Alloy	Powder Coat	Tool	Black	8mm Hex Recess	Fixed	43–45mm	18mm	Yes	Type A – Turn Clockwise to Latch	19,1mm	.step
E3-1210-1459	56,92 €		Aluminum Alloy	Anodized	Tool	Black	8mm Hex Recess	Fixed			Yes	Type A – Turn Clockwise to Latch	19,1mm	3D
Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku.
