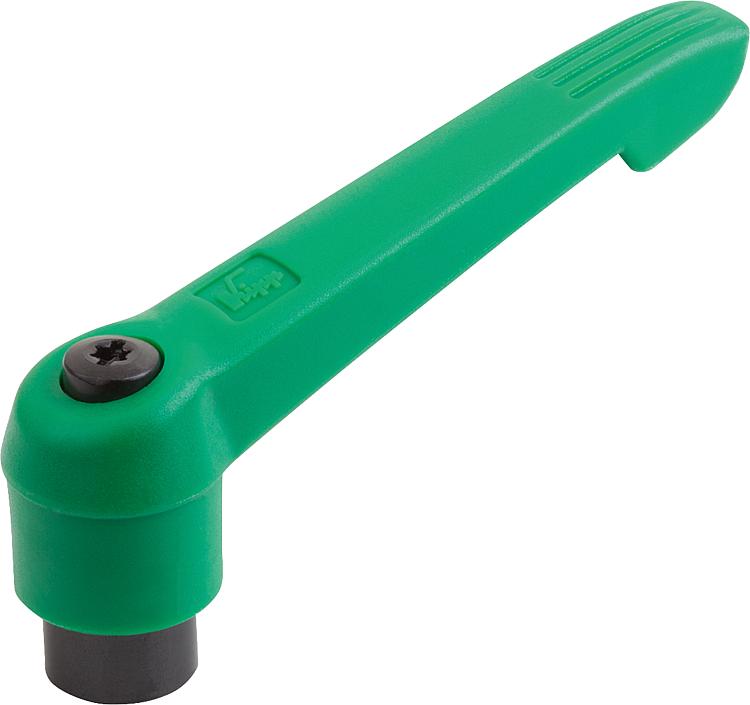

Zvieracie páky s vnútorným závitom a plastovou rukoväťou
Popis tovaru
| Kód: | K0269 |
|---|---|
| Výrobca: | Kipp |
| Ceny: | sú uvedené dole na stránke v tabuľke variánt produktu alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásielok dĺžky nad 1,7m zohľadňujeme podľa skutočných hodnôt a dodatočne, ak je to nutné upravujeme. |
zavřít
zavřít
Detail zavřít

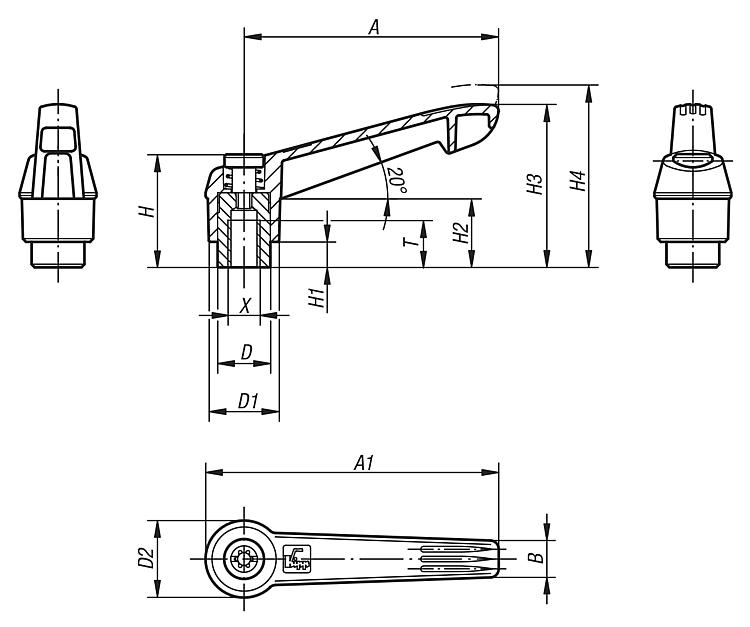

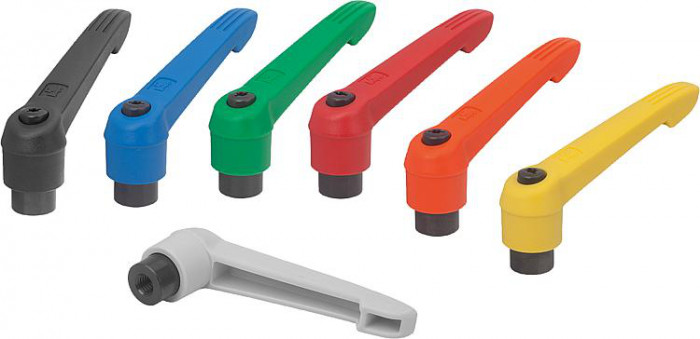

| Objednací kód | Základná cena bez DPH | Objednat | Barva základního tělesa | Velikost | X | T | D | d1 | d2 | H | H1 | H2 | H3 | H4 | A | A1 | B | počet zubů | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

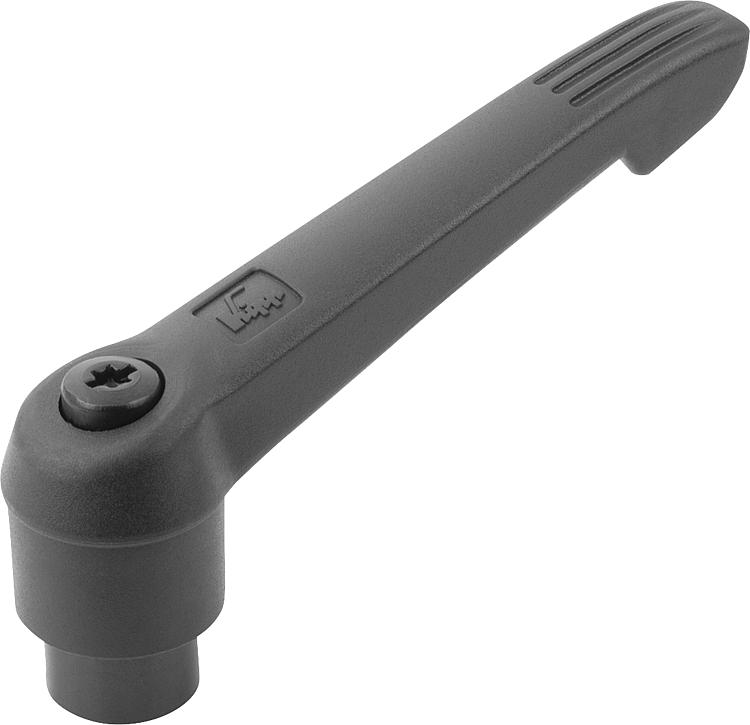

| K0269.1041 | 3,03 € | tmavošedá RAL 7021 | 1 | M4 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||

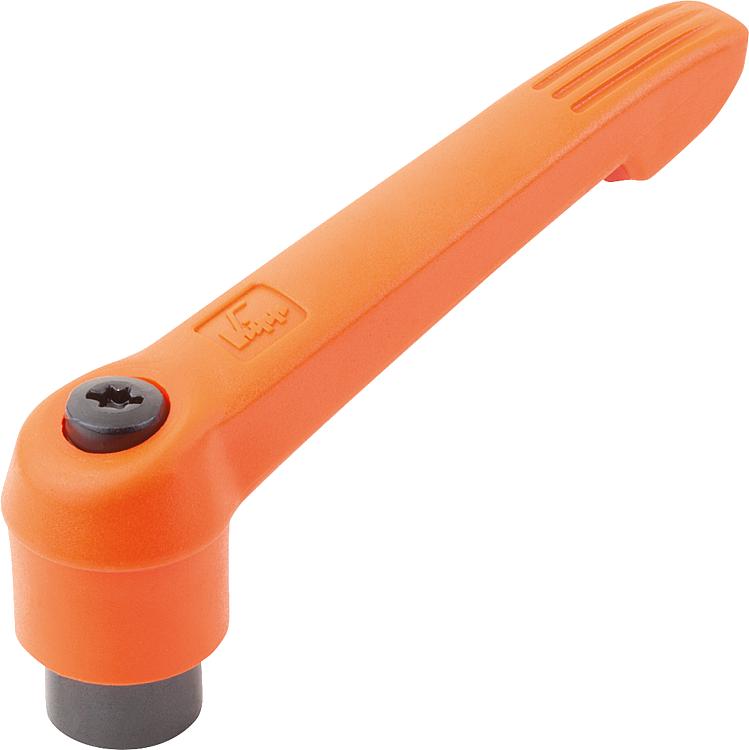

| K0269.1042 | 3,03 € | čistě oranžová RAL 2004 | 1 | M4 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||

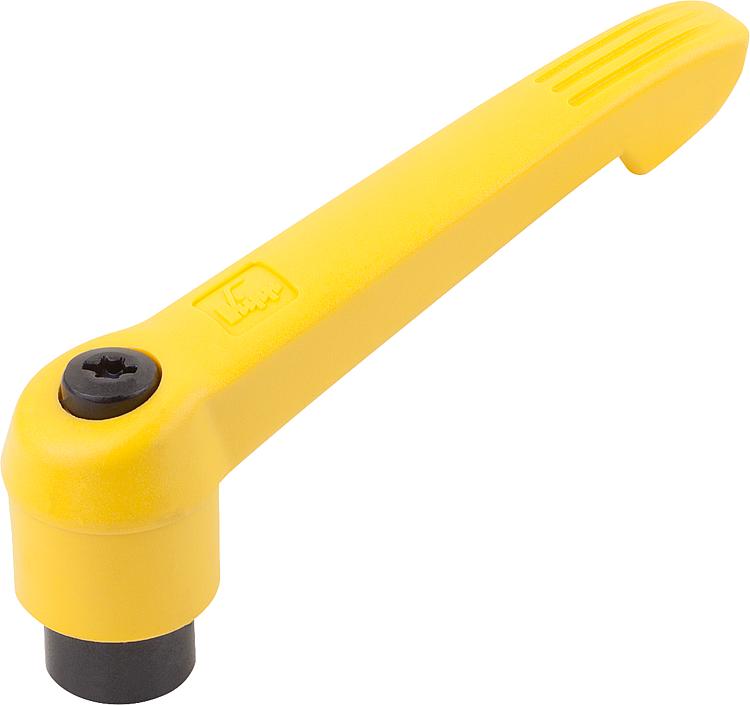

| K0269.10416 | 3,03 € | řepkově žlutá RAL 1021 | 1 | M4 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||

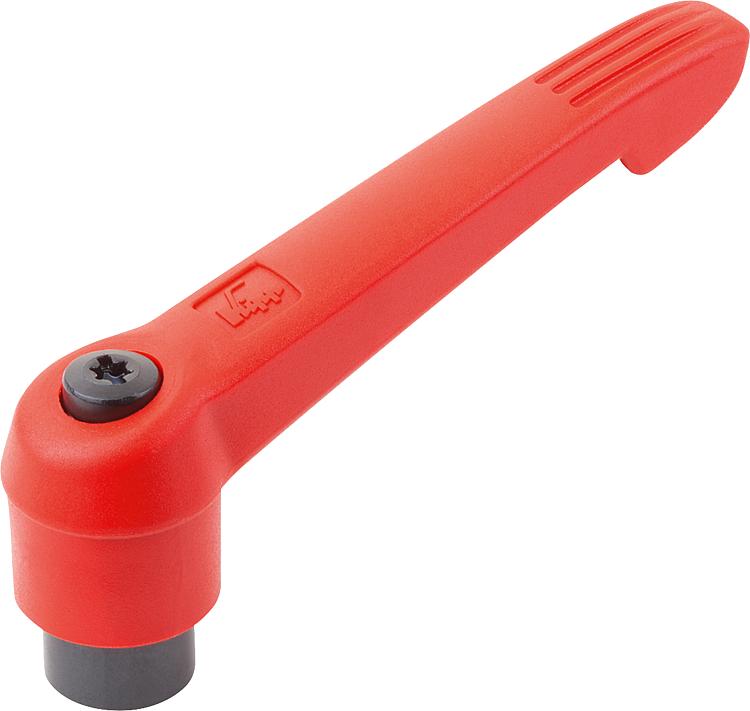

| K0269.10484 | 3,03 € | bezpečnostní červená RAL 3020 | 1 | M4 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.10486 | 3,03 € | signální zelená RAL 6032 | 1 | M4 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||

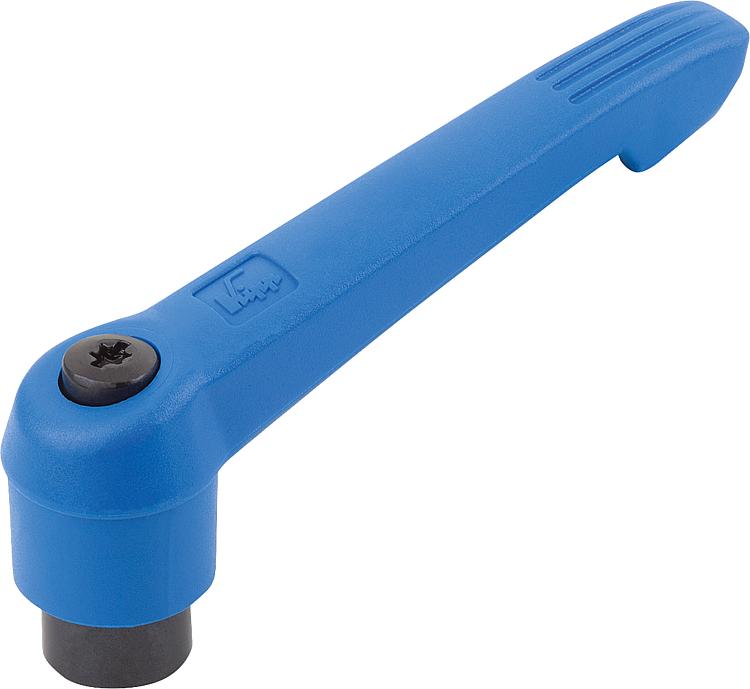

| K0269.10487 | 3,03 € | bezpečnostní modrá RAL 5017 | 1 | M4 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||

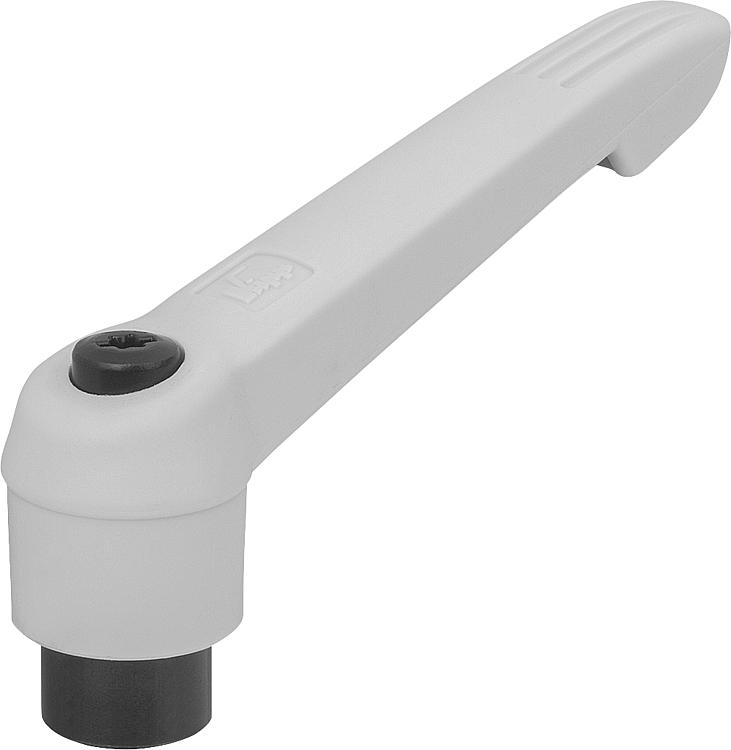

| K0269.10488 | 3,03 € | světle šedá RAL 7035 | 1 | M4 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.1051 | 3,03 € | tmavošedá RAL 7021 | 1 | M5 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.1052 | 3,03 € | čistě oranžová RAL 2004 | 1 | M5 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.10516 | 3,03 € | řepkově žlutá RAL 1021 | 1 | M5 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.10584 | 3,03 € | bezpečnostní červená RAL 3020 | 1 | M5 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.10586 | 3,03 € | signální zelená RAL 6032 | 1 | M5 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.10587 | 3,03 € | bezpečnostní modrá RAL 5017 | 1 | M5 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.10588 | 3,03 € | světle šedá RAL 7035 | 1 | M5 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.1061 | 3,03 € | tmavošedá RAL 7021 | 1 | M6 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| Objednací kód | Základná cena bez DPH | Objednat | Barva základního tělesa | Velikost | X | T | D | d1 | d2 | H | H1 | H2 | H3 | H4 | A | A1 | B | počet zubů | CAD |
| K0269.1062 | 3,03 € | čistě oranžová RAL 2004 | 1 | M6 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.10616 | 3,03 € | řepkově žlutá RAL 1021 | 1 | M6 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.10684 | 3,03 € | bezpečnostní červená RAL 3020 | 1 | M6 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.10686 | 3,03 € | signální zelená RAL 6032 | 1 | M6 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.10687 | 3,03 € | bezpečnostní modrá RAL 5017 | 1 | M6 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.10688 | 3,03 € | světle šedá RAL 7035 | 1 | M6 | 9 | 10 | 13mm | 14,5mm | 24,5mm | 4mm | 15mm | 30mm | 33,5mm | 40mm | 47mm | 7,5mm | 16 | ||
| K0269.2061 | 3,58 € | tmavošedá RAL 7021 | 2 | M6 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| K0269.2062 | 3,58 € | čistě oranžová RAL 2004 | 2 | M6 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| K0269.20616 | 3,58 € | řepkově žlutá RAL 1021 | 2 | M6 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| K0269.20684 | 3,58 € | bezpečnostní červená RAL 3020 | 2 | M6 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| K0269.20686 | 3,58 € | signální zelená RAL 6032 | 2 | M6 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| K0269.20687 | 3,58 € | bezpečnostní modrá RAL 5017 | 2 | M6 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| K0269.20688 | 3,58 € | světle šedá RAL 7035 | 2 | M6 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| K0269.2081 | 3,58 € | tmavošedá RAL 7021 | 2 | M8 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| K0269.2082 | 3,58 € | čistě oranžová RAL 2004 | 2 | M8 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| Objednací kód | Základná cena bez DPH | Objednat | Barva základního tělesa | Velikost | X | T | D | d1 | d2 | H | H1 | H2 | H3 | H4 | A | A1 | B | počet zubů | CAD |
| K0269.20816 | 3,58 € | řepkově žlutá RAL 1021 | 2 | M8 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| K0269.20884 | 3,58 € | bezpečnostní červená RAL 3020 | 2 | M8 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| K0269.20886 | 3,58 € | signální zelená RAL 6032 | 2 | M8 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| K0269.20887 | 3,58 € | bezpečnostní modrá RAL 5017 | 2 | M8 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| K0269.20888 | 3,58 € | světle šedá RAL 7035 | 2 | M8 | 12 | 13,5 | 18mm | 19,5mm | 28,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 65mm | 75mm | 9,5mm | 20 | ||
| K0269.3081 | 4,43 € | tmavošedá RAL 7021 | 3 | M8 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| K0269.3082 | 4,43 € | čistě oranžová RAL 2004 | 3 | M8 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| K0269.30816 | 4,43 € | řepkově žlutá RAL 1021 | 3 | M8 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| K0269.30884 | 4,43 € | bezpečnostní červená RAL 3020 | 3 | M8 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| K0269.30886 | 4,43 € | signální zelená RAL 6032 | 3 | M8 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| K0269.30887 | 4,43 € | bezpečnostní modrá RAL 5017 | 3 | M8 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| K0269.30888 | 4,43 € | světle šedá RAL 7035 | 3 | M8 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| K0269.3101 | 4,43 € | tmavošedá RAL 7021 | 3 | M10 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| K0269.3102 | 4,43 € | čistě oranžová RAL 2004 | 3 | M10 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| K0269.31016 | 4,43 € | řepkově žlutá RAL 1021 | 3 | M10 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| Objednací kód | Základná cena bez DPH | Objednat | Barva základního tělesa | Velikost | X | T | D | d1 | d2 | H | H1 | H2 | H3 | H4 | A | A1 | B | počet zubů | CAD |
| K0269.31084 | 4,43 € | bezpečnostní červená RAL 3020 | 3 | M10 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| K0269.31086 | 4,43 € | signální zelená RAL 6032 | 3 | M10 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| K0269.31087 | 4,43 € | bezpečnostní modrá RAL 5017 | 3 | M10 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| K0269.31088 | 4,43 € | světle šedá RAL 7035 | 3 | M10 | 14 | 16 | 21,5mm | 23mm | 37mm | 10mm | 24mm | 53,5mm | 58mm | 80mm | 91,5mm | 11mm | 22 | ||
| K0269.4101 | 5,63 € | tmavošedá RAL 7021 | 4 | M10 | 17 | 19 | 25,5mm | 27,5mm | 43mm | 10mm | 26mm | 61mm | 66mm | 95mm | 109mm | 13mm | 24 | ||
| K0269.4102 | 5,63 € | čistě oranžová RAL 2004 | 4 | M10 | 17 | 19 | 25,5mm | 27,5mm | 43mm | 10mm | 26mm | 61mm | 66mm | 95mm | 109mm | 13mm | 24 | ||
| K0269.41016 | 5,63 € | řepkově žlutá RAL 1021 | 4 | M10 | 17 | 19 | 25,5mm | 27,5mm | 43mm | 10mm | 26mm | 61mm | 66mm | 95mm | 109mm | 13mm | 24 | ||
| K0269.41084 | 5,63 € | bezpečnostní červená RAL 3020 | 4 | M10 | 17 | 19 | 25,5mm | 27,5mm | 43mm | 10mm | 26mm | 61mm | 66mm | 95mm | 109mm | 13mm | 24 | ||
| K0269.41086 | 5,63 € | signální zelená RAL 6032 | 4 | M10 | 17 | 19 | 25,5mm | 27,5mm | 43mm | 10mm | 26mm | 61mm | 66mm | 95mm | 109mm | 13mm | 24 | ||
| K0269.41087 | 5,63 € | bezpečnostní modrá RAL 5017 | 4 | M10 | 17 | 19 | 25,5mm | 27,5mm | 43mm | 10mm | 26mm | 61mm | 66mm | 95mm | 109mm | 13mm | 24 | ||
| K0269.41088 | 5,63 € | světle šedá RAL 7035 | 4 | M10 | 17 | 19 | 25,5mm | 27,5mm | 43mm | 10mm | 26mm | 61mm | 66mm | 95mm | 109mm | 13mm | 24 | ||
| K0269.4121 | 5,63 € | tmavošedá RAL 7021 | 4 | M12 | 17 | 19 | 25,5mm | 27,5mm | 43mm | 10mm | 26mm | 61mm | 66mm | 95mm | 109mm | 13mm | 24 | ||
| K0269.4122 | 5,63 € | čistě oranžová RAL 2004 | 4 | M12 | 17 | 19 | 25,5mm | 27,5mm | 43mm | 10mm | 26mm | 61mm | 66mm | 95mm | 109mm | 13mm | 24 | ||
| K0269.41216 | 5,63 € | řepkově žlutá RAL 1021 | 4 | M12 | 17 | 19 | 25,5mm | 27,5mm | 43mm | 10mm | 26mm | 61mm | 66mm | 95mm | 109mm | 13mm | 24 | ||
| K0269.41284 | 5,63 € | bezpečnostní červená RAL 3020 | 4 | M12 | 17 | 19 | 25,5mm | 27,5mm | 43mm | 10mm | 26mm | 61mm | 66mm | 95mm | 109mm | 13mm | 24 | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||||||||||
