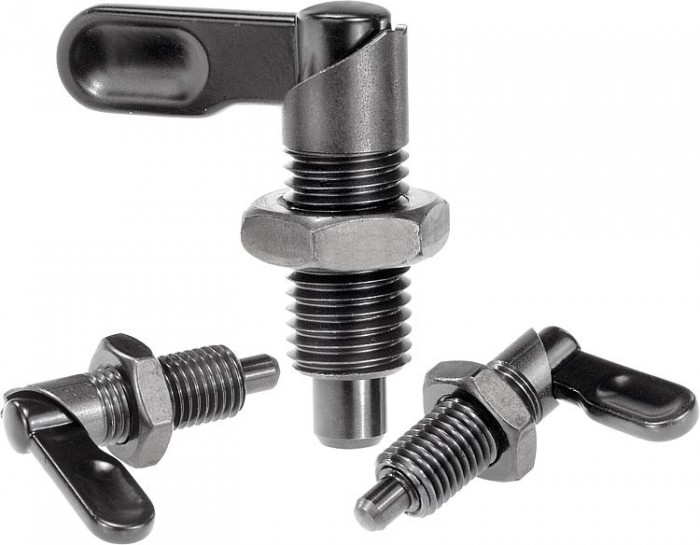

Aretačné čapy ovládané páčkou bez nákružku
Popis produktu
| Kód: | K0348 |
|---|---|
| Výrobca: | Kipp |
| Ceny: | sú uvedené dole na stránke v tabuľke variant produktu, alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásielok dĺžky nad 1,7m zohľadňujeme podľa skutočných hodnôt a dodatočne, pokiaľ je to nutné upravujeme. |
zavřít
zavřít
Na stiahnutie
Datový list K0348 Aretační čepy ovládané páčkou bez nákružku
Detail zavřít
| Objednávací kód | Základná cena bez DPH | Objednať | Provedení | D | D1 | d2 | L | L2 | L3 | B | B1 | H | F x 30° | Síla pružiny začátek F1 cca N | Síla pružiny konec F2 cca N | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K0348.040410 | 12,20 € | A | 4 | M10 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 1 | 8 | 14 | ||
| K0348.040510 | 12,20 € | A | 5 | M10 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 1,3 | 8 | 14 | ||
| K0348.040610 | 12,20 € | A | 6 | M10 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 1,8 | 8 | 14 | ||
| K0348.0404101 | 12,20 € | A | 4 | M10×1 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 1 | 8 | 14 | ||
| K0348.0405101 | 12,20 € | A | 5 | M10×1 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 1,3 | 8 | 14 | ||
| K0348.0406101 | 12,20 € | A | 6 | M10×1 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 1,8 | 8 | 14 | ||
| K0348.040512 | 12,38 € | A | 5 | M12 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 1,3 | 8 | 15 | ||
| K0348.040612 | 12,38 € | A | 6 | M12 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 1,8 | 8 | 15 | ||
| K0348.040812 | 12,38 € | A | 8 | M12 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 2,3 | 8 | 15 | ||
| K0348.0405121 | 12,38 € | A | 5 | M12×1,5 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 1,3 | 8 | 15 | ||
| K0348.0406121 | 12,38 € | A | 6 | M12×1,5 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 1,8 | 8 | 15 | ||
| K0348.0408121 | 12,38 € | A | 8 | M12×1,5 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 2,3 | 8 | 15 | ||
| K0348.040616 | 14,86 € | A | 6 | M16 | 16mm | 60,4 | 40 | 32 | 14,4mm | 4,8 | 10mm | 1,8 | 15 | 35 | ||
| K0348.040816 | 14,86 € | A | 8 | M16 | 16mm | 60,4 | 40 | 32 | 14,4mm | 4,8 | 10mm | 2,3 | 15 | 35 | ||
| K0348.041016 | 14,86 € | A | 10 | M16 | 16mm | 60,4 | 40 | 32 | 14,4mm | 4,8 | 10mm | 2,8 | 15 | 35 | ||
| Objednávací kód | Základná cena bez DPH | Objednať | Provedení | D | D1 | d2 | L | L2 | L3 | B | B1 | H | F x 30° | Síla pružiny začátek F1 cca N | Síla pružiny konec F2 cca N | CAD |
| K0348.0406161 | 14,86 € | A | 6 | M16×1,5 | 16mm | 60,4 | 40 | 32 | 14,4mm | 4,8 | 10mm | 1,8 | 15 | 35 | ||
| K0348.0408161 | 14,86 € | A | 8 | M16×1,5 | 16mm | 60,4 | 40 | 32 | 14,4mm | 4,8 | 10mm | 2,3 | 15 | 35 | ||
| K0348.0410161 | 14,86 € | A | 10 | M16×1,5 | 16mm | 60,4 | 40 | 32 | 14,4mm | 4,8 | 10mm | 2,8 | 15 | 35 | ||
| K0348.040820 | 16,52 € | A | 8 | M20 | 20mm | 70 | 50 | 35 | 18mm | 6 | 12mm | 2,3 | 20 | 60 | ||
| K0348.041020 | 16,52 € | A | 10 | M20 | 20mm | 70 | 50 | 35 | 18mm | 6 | 12mm | 2,8 | 20 | 60 | ||
| K0348.041220 | 16,52 € | A | 12 | M20 | 20mm | 70 | 50 | 35 | 18mm | 6 | 12mm | 3 | 20 | 60 | ||
| K0348.0408201 | 16,52 € | A | 8 | M20×1,5 | 20mm | 70 | 50 | 35 | 18mm | 6 | 12mm | 2,3 | 20 | 60 | ||
| K0348.0410201 | 16,52 € | A | 10 | M20×1,5 | 20mm | 70 | 50 | 35 | 18mm | 6 | 12mm | 2,8 | 20 | 60 | ||
| K0348.0412201 | 16,52 € | A | 12 | M20×1,5 | 20mm | 70 | 50 | 35 | 18mm | 6 | 12mm | 3 | 20 | 60 | ||
| K0348.060410 | 12,68 € | C | 4 | M10 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 1 | 8 | 14 | ||
| K0348.060510 | 12,68 € | C | 5 | M10 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 1,3 | 8 | 14 | ||
| K0348.060610 | 12,68 € | C | 6 | M10 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 1,8 | 8 | 14 | ||
| K0348.0604101 | 12,68 € | C | 4 | M10×1 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 1 | 8 | 14 | ||
| K0348.0605101 | 12,68 € | C | 5 | M10×1 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 1,3 | 8 | 14 | ||
| K0348.0606101 | 12,68 € | C | 6 | M10×1 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 1,8 | 8 | 14 | ||
| Objednávací kód | Základná cena bez DPH | Objednať | Provedení | D | D1 | d2 | L | L2 | L3 | B | B1 | H | F x 30° | Síla pružiny začátek F1 cca N | Síla pružiny konec F2 cca N | CAD |
| K0348.060512 | 12,94 € | C | 5 | M12 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 1,3 | 8 | 15 | ||
| K0348.060612 | 12,94 € | C | 6 | M12 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 1,8 | 8 | 15 | ||
| K0348.060812 | 12,94 € | C | 8 | M12 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 2,3 | 8 | 15 | ||
| K0348.0605121 | 12,94 € | C | 5 | M12×1,5 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 1,3 | 8 | 15 | ||
| K0348.0606121 | 12,94 € | C | 6 | M12×1,5 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 1,8 | 8 | 15 | ||
| K0348.0608121 | 12,94 € | C | 8 | M12×1,5 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 2,3 | 8 | 15 | ||
| K0348.060616 | 15,48 € | C | 6 | M16 | 16mm | 60,4 | 40 | 32 | 14,4mm | 4,8 | 10mm | 1,8 | 15 | 35 | ||
| K0348.060816 | 15,48 € | C | 8 | M16 | 16mm | 60,4 | 40 | 32 | 14,4mm | 4,8 | 10mm | 2,3 | 15 | 35 | ||
| K0348.061016 | 15,48 € | C | 10 | M16 | 16mm | 60,4 | 40 | 32 | 14,4mm | 4,8 | 10mm | 2,8 | 15 | 35 | ||
| K0348.0606161 | 15,48 € | C | 6 | M16×1,5 | 16mm | 60,4 | 40 | 32 | 14,4mm | 4,8 | 10mm | 1,8 | 15 | 35 | ||
| K0348.0608161 | 15,48 € | C | 8 | M16×1,5 | 16mm | 60,4 | 40 | 32 | 14,4mm | 4,8 | 10mm | 2,3 | 15 | 35 | ||
| K0348.0610161 | 15,48 € | C | 10 | M16×1,5 | 16mm | 60,4 | 40 | 32 | 14,4mm | 4,8 | 10mm | 2,8 | 15 | 35 | ||
| K0348.060820 | 17,53 € | C | 8 | M20 | 20mm | 70 | 50 | 35 | 18mm | 6 | 12mm | 2,3 | 20 | 60 | ||
| K0348.061020 | 17,53 € | C | 10 | M20 | 20mm | 70 | 50 | 35 | 18mm | 6 | 12mm | 2,8 | 20 | 60 | ||
| K0348.061220 | 17,53 € | C | 12 | M20 | 20mm | 70 | 50 | 35 | 18mm | 6 | 12mm | 3 | 20 | 60 | ||
| Objednávací kód | Základná cena bez DPH | Objednať | Provedení | D | D1 | d2 | L | L2 | L3 | B | B1 | H | F x 30° | Síla pružiny začátek F1 cca N | Síla pružiny konec F2 cca N | CAD |
| K0348.0608201 | 17,53 € | C | 8 | M20×1,5 | 20mm | 70 | 50 | 35 | 18mm | 6 | 12mm | 2,3 | 20 | 60 | ||
| K0348.0610201 | 17,53 € | C | 10 | M20×1,5 | 20mm | 70 | 50 | 35 | 18mm | 6 | 12mm | 2,8 | 20 | 60 | ||
| K0348.0612201 | 17,53 € | C | 12 | M20×1,5 | 20mm | 70 | 50 | 35 | 18mm | 6 | 12mm | 3 | 20 | 60 | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | ||||||||||||||||
| Objednávací kód | Základná cena bez DPH | Objednať | Provedení | D | D1 | d2 | L | L2 | L3 | B | B1 | H | SW | F x 30° | Síla pružiny začátek F1 cca N | Síla pružiny konec F2 cca N | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K0348.050410 | 12,32 € | B | 4 | M10 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 17 | 1 | 8 | 14 | ||
| K0348.050510 | 12,32 € | B | 5 | M10 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 17 | 1,3 | 8 | 14 | ||
| K0348.050610 | 12,32 € | B | 6 | M10 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 17 | 1,8 | 8 | 14 | ||
| K0348.0504101 | 12,32 € | B | 4 | M10×1 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 17 | 1 | 8 | 14 | ||
| K0348.0505101 | 12,32 € | B | 5 | M10×1 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 17 | 1,3 | 8 | 14 | ||
| K0348.0506101 | 12,32 € | B | 6 | M10×1 | 10mm | 38 | 25 | 20 | 9mm | 3 | 6mm | 17 | 1,8 | 8 | 14 | ||
| K0348.050512 | 12,47 € | B | 5 | M12 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 19 | 1,3 | 8 | 15 | ||
| K0348.050612 | 12,47 € | B | 6 | M12 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 19 | 1,8 | 8 | 15 | ||
| K0348.050812 | 12,47 € | B | 8 | M12 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 19 | 2,3 | 8 | 15 | ||
| K0348.0505121 | 12,47 € | B | 5 | M12×1,5 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 19 | 1,3 | 8 | 15 | ||
| K0348.0506121 | 12,47 € | B | 6 | M12×1,5 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 19 | 1,8 | 8 | 15 | ||
| K0348.0508121 | 12,47 € | B | 8 | M12×1,5 | 12mm | 46,8 | 30 | 25 | 10,8mm | 3,6 | 8mm | 19 | 2,3 | 8 | 15 | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||||||||
