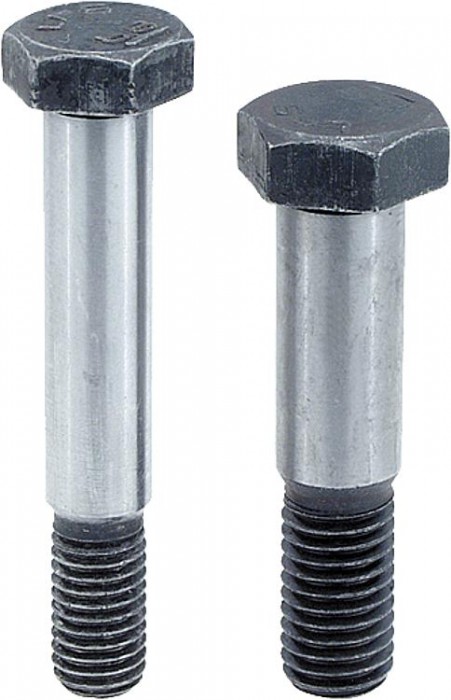

Šesťhranné lícovacie skrutky s dlhým závitovým čapom DIN 609
Popis tovaru
| Kód: | K0706 |
|---|---|
| Výrobca: | Kipp |
| Ceny: | sú uvedené dole na stránke v tabuľke variánt produktu alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásielok dĺžky nad 1,7m zohľadňujeme podľa skutočných hodnôt a dodatočne, ak je to nutné upravujeme. |
zavřít
zavřít
Detail zavřít

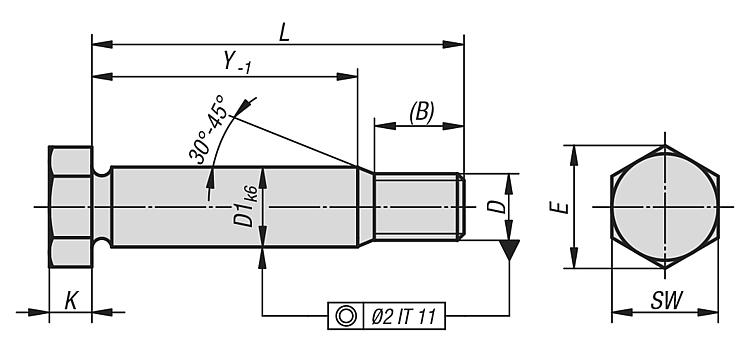

| Objednací kód | Základná cena bez DPH | Objednat | (B) pomocný rozměr | d1 | D | E | K | L | Y | SW | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K0706.09X25 | 1,33 € | 14,5 | 9mm | M8 | 14,38mm | 5,3 | 25 | 8 | 13 | ||
| K0706.09X30 | 1,42 € | 14,5 | 9mm | M8 | 14,38mm | 5,3 | 30 | 13 | 13 | ||
| K0706.09X35 | 1,65 € | 14,5 | 9mm | M8 | 14,38mm | 5,3 | 35 | 18 | 13 | ||
| K0706.09X40 | 1,50 € | 14,5 | 9mm | M8 | 14,38mm | 5,3 | 40 | 23 | 13 | ||
| K0706.09X45 | 1,64 € | 14,5 | 9mm | M8 | 14,38mm | 5,3 | 45 | 28 | 13 | ||
| K0706.09X50 | 1,61 € | 14,5 | 9mm | M8 | 14,38mm | 5,3 | 50 | 33 | 13 | ||
| K0706.09X60 | 2,10 € | 16,5 | 9mm | M8 | 14,38mm | 5,3 | 60 | 41 | 13 | ||
| K0706.11X30 | 1,48 € | 17,5 | 11mm | M10 | 17,77mm | 6,4 | 30 | 10 | 17 | ||
| K0706.11X35 | 1,52 € | 17,5 | 11mm | M10 | 17,77mm | 6,4 | 35 | 15 | 17 | ||
| K0706.11X40 | 1,38 € | 17,5 | 11mm | M10 | 17,77mm | 6,4 | 40 | 20 | 17 | ||
| K0706.11X45 | 1,19 € | 17,5 | 11mm | M10 | 17,77mm | 6,4 | 45 | 25 | 17 | ||
| K0706.11X50 | 1,71 € | 17,5 | 11mm | M10 | 17,77mm | 6,4 | 50 | 30 | 17 | ||
| K0706.11X60 | 1,71 € | 19,5 | 11mm | M10 | 17,77mm | 6,4 | 60 | 38 | 17 | ||
| K0706.11X70 | 2,41 € | 19,5 | 11mm | M10 | 17,77mm | 6,4 | 70 | 48 | 17 | ||
| K0706.11X80 | 2,44 € | 19,5 | 11mm | M10 | 17,77mm | 6,4 | 80 | 58 | 17 | ||
| Objednací kód | Základná cena bez DPH | Objednat | (B) pomocný rozměr | d1 | D | E | K | L | Y | SW | CAD |
| K0706.11X90 | 3,44 € | 19,5 | 11mm | M10 | 17,77mm | 6,4 | 90 | 68 | 17 | ||
| K0706.11X100 | 4,83 € | 19,5 | 11mm | M10 | 17,77mm | 6,4 | 100 | 78 | 17 | ||
| K0706.13X35 | 1,80 € | 20,5 | 13mm | M12 | 19,85mm | 7,5 | 35 | 11,5 | 19 | ||
| K0706.13X40 | 2,16 € | 20,5 | 13mm | M12 | 19,85mm | 7,5 | 40 | 16,5 | 19 | ||
| K0706.13X45 | 1,96 € | 20,5 | 13mm | M12 | 19,85mm | 7,5 | 45 | 21,5 | 19 | ||
| K0706.13X50 | 2,09 € | 20,5 | 13mm | M12 | 19,85mm | 7,5 | 50 | 26,5 | 19 | ||
| K0706.13X60 | 2,15 € | 22,5 | 13mm | M12 | 19,85mm | 7,5 | 60 | 34,5 | 19 | ||
| K0706.13X70 | 2,97 € | 22,5 | 13mm | M12 | 19,85mm | 7,5 | 70 | 44,5 | 19 | ||
| K0706.13X80 | 3,02 € | 22,5 | 13mm | M12 | 19,85mm | 7,5 | 80 | 54,5 | 19 | ||
| K0706.13X90 | 3,12 € | 22,5 | 13mm | M12 | 19,85mm | 7,5 | 90 | 64,5 | 19 | ||
| K0706.13X100 | 3,16 € | 22,5 | 13mm | M12 | 19,85mm | 7,5 | 100 | 74,5 | 19 | ||
| K0706.17X40 | 3,66 € | 25 | 17mm | M16 | 26,17mm | 10 | 40 | 11,5 | 24 | ||
| K0706.17X45 | 2,54 € | 25 | 17mm | M16 | 26,17mm | 10 | 45 | 16,5 | 24 | ||
| K0706.17X50 | 3,30 € | 25 | 17mm | M16 | 26,17mm | 10 | 50 | 21,5 | 24 | ||
| K0706.17X60 | 3,46 € | 27 | 17mm | M16 | 26,17mm | 10 | 60 | 29,5 | 24 | ||
| Objednací kód | Základná cena bez DPH | Objednat | (B) pomocný rozměr | d1 | D | E | K | L | Y | SW | CAD |
| K0706.17X70 | 3,35 € | 27 | 17mm | M16 | 26,17mm | 10 | 70 | 39,5 | 24 | ||
| K0706.17X80 | 3,80 € | 27 | 17mm | M16 | 26,17mm | 10 | 80 | 49,5 | 24 | ||
| K0706.17X90 | 4,61 € | 27 | 17mm | M16 | 26,17mm | 10 | 90 | 59,5 | 24 | ||
| K0706.17X100 | 5,17 € | 27 | 17mm | M16 | 26,17mm | 10 | 100 | 69,5 | 24 | ||
| K0706.21X50 | 5,19 € | 28,5 | 21mm | M20 | 32,95mm | 12,5 | 50 | 17,5 | 30 | ||
| K0706.21X70 | 5,53 € | 30,5 | 21mm | M20 | 32,95mm | 12,5 | 70 | 35,5 | 30 | ||
| K0706.21X80 | 5,90 € | 30,5 | 21mm | M20 | 32,95mm | 12,5 | 80 | 45,5 | 30 | ||
| K0706.21X90 | 6,30 € | 30,5 | 21mm | M20 | 32,95mm | 12,5 | 90 | 55,5 | 30 | ||
| K0706.21X100 | 5,89 € | 30,5 | 21mm | M20 | 32,95mm | 12,5 | 100 | 65,5 | 30 | ||
| K0706.21X120 | 7,01 € | 30,5 | 21mm | M20 | 32,95mm | 12,5 | 120 | 85,5 | 30 | ||
| K0706.25X60 | 5,88 € | 36,5 | 25mm | M24 | 39,35mm | 15 | 60 | 19 | 36 | ||
| K0706.25X70 | 6,65 € | 36,5 | 25mm | M24 | 39,35mm | 15 | 70 | 29 | 36 | ||
| K0706.25X80 | 6,93 € | 36,5 | 25mm | M24 | 39,35mm | 15 | 80 | 39 | 36 | ||
| K0706.25X90 | 7,21 € | 36,5 | 25mm | M24 | 39,35mm | 15 | 90 | 49 | 36 | ||
| K0706.25X100 | 7,65 € | 36,5 | 25mm | M24 | 39,35mm | 15 | 100 | 59 | 36 | ||
| Objednací kód | Základná cena bez DPH | Objednat | (B) pomocný rozměr | d1 | D | E | K | L | Y | SW | CAD |
| K0706.25X120 | 8,15 € | 36,5 | 25mm | M24 | 39,35mm | 15 | 120 | 79 | 36 | ||
| K0706.21X60 | 5,18 € | 30,5 | 21mm | M20 | 32,95mm | 12,5 | 60 | 25,5 | 30 | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||
