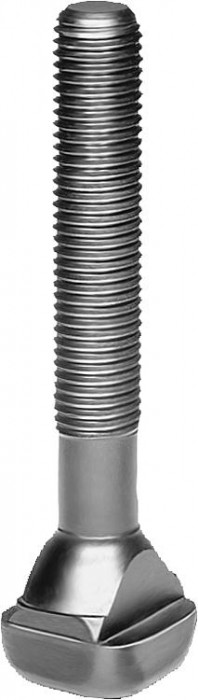

Skrutky pre T-drážky DIN 787
Popis tovaru
| Kód: | K0698 |
|---|---|
| Výrobca: | Kipp |
| Ceny: | sú uvedené dole na stránke v tabuľke variánt produktu alebo na dopyt cez formulár nižšie. |
| Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásielok dĺžky nad 1,7m zohľadňujeme podľa skutočných hodnôt a dodatočne, ak je to nutné upravujeme. |
zavřít
zavřít
Na stiahnutie
Datový list K0698 Šrouby pro T-drážky DIN 787
Detail zavřít

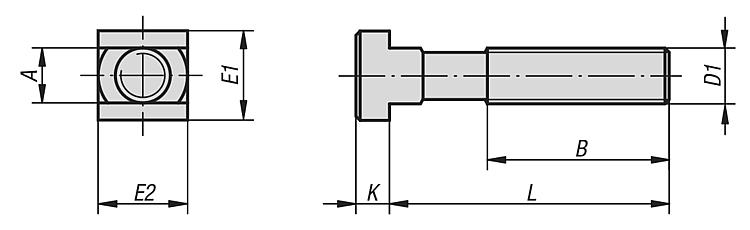

| Objednací kód | Základná cena bez DPH | Objednat | Jmenovitý rozměr drážky | D1 | L | A | B | E1/E2 | K | CAD |
|---|---|---|---|---|---|---|---|---|---|---|
| K0698.0625 | 5,38 € | 6 | M6 | 25 | 5,7mm | 15mm | 10 | 4 | ||
| K0698.0640 | 5,56 € | 6 | M6 | 40 | 5,7mm | 28mm | 10 | 4 | ||
| K0698.0663 | 5,86 € | 6 | M6 | 63 | 5,7mm | 40mm | 10 | 4 | ||
| K0698.0832 | 5,86 € | 8 | M8 | 32 | 7,7mm | 22mm | 13 | 6 | ||
| K0698.0850 | 6,19 € | 8 | M8 | 50 | 7,7mm | 35mm | 13 | 6 | ||
| K0698.0880 | 6,72 € | 8 | M8 | 80 | 7,7mm | 50mm | 13 | 6 | ||
| K0698.10100 | 7,09 € | 10 | M10 | 100 | 9,7mm | 60mm | 15 | 6 | ||
| K0698.1040 | 5,91 € | 10 | M10 | 40 | 9,7mm | 30mm | 15 | 6 | ||
| K0698.1063 | 6,34 € | 10 | M10 | 63 | 9,7mm | 45mm | 15 | 6 | ||
| K0698.12100 | 8,39 € | 12 | M12 | 100 | 11,7mm | 65mm | 18 | 7 | ||
| K0698.12125 | 8,39 € | 12 | M12 | 125 | 11,7mm | 75mm | 18 | 7 | ||
| K0698.12160 | 9,90 € | 12 | M12 | 160 | 11,7mm | 100mm | 18 | 7 | ||
| K0698.12200 | 10,20 € | 12 | M12 | 200 | 11,7mm | 120mm | 18 | 7 | ||
| K0698.1250 | 6,80 € | 12 | M12 | 50 | 11,7mm | 35mm | 18 | 7 | ||
| K0698.1263 | 7,34 € | 12 | M12 | 63 | 11,7mm | 40mm | 18 | 7 | ||
| Objednací kód | Základná cena bez DPH | Objednat | Jmenovitý rozměr drážky | D1 | L | A | B | E1/E2 | K | CAD |
| K0698.1280 | 7,63 € | 12 | M12 | 80 | 11,7mm | 55mm | 18 | 7 | ||
| K0698.14100 | 7,66 € | 14 | M12 | 100 | 13,7mm | 65mm | 22 | 8 | ||
| K0698.14125 | 8,23 € | 14 | M12 | 125 | 13,7mm | 75mm | 22 | 8 | ||
| K0698.14160 | 8,87 € | 14 | M12 | 160 | 13,7mm | 100mm | 22 | 8 | ||
| K0698.14200 | 10,26 € | 14 | M12 | 200 | 13,7mm | 120mm | 22 | 8 | ||
| K0698.1450 | 7,03 € | 14 | M12 | 50 | 13,7mm | 35mm | 22 | 8 | ||
| K0698.1463 | 7,26 € | 14 | M12 | 63 | 13,7mm | 45mm | 22 | 8 | ||
| K0698.1480 | 7,63 € | 14 | M12 | 80 | 13,7mm | 55mm | 22 | 8 | ||
| K0698.16100 | 10,20 € | 16 | M16 | 100 | 15,7mm | 65mm | 25 | 9 | ||
| K0698.161001 | 9,81 € | 16 | M14 | 100 | 15,7mm | 65mm | 25 | 9 | ||
| K0698.16125 | 10,75 € | 16 | M16 | 125 | 15,7mm | 85mm | 25 | 9 | ||
| K0698.161251 | 10,26 € | 16 | M14 | 125 | 15,7mm | 75mm | 25 | 9 | ||
| K0698.16160 | 11,92 € | 16 | M16 | 160 | 15,7mm | 100mm | 25 | 9 | ||
| K0698.161601 | 11,34 € | 16 | M14 | 160 | 15,7mm | 100mm | 25 | 9 | ||
| K0698.16200 | 13,36 € | 16 | M16 | 200 | 15,7mm | 125mm | 25 | 9 | ||
| Objednací kód | Základná cena bez DPH | Objednat | Jmenovitý rozměr drážky | D1 | L | A | B | E1/E2 | K | CAD |
| K0698.16250 | 14,71 € | 16 | M16 | 250 | 15,7mm | 150mm | 25 | 9 | ||
| K0698.162501 | 13,43 € | 16 | M14 | 250 | 15,7mm | 150mm | 25 | 9 | ||
| K0698.1663 | 9,69 € | 16 | M16 | 63 | 15,7mm | 45mm | 25 | 9 | ||
| K0698.16631 | 9,05 € | 16 | M14 | 63 | 15,7mm | 45mm | 25 | 9 | ||
| K0698.1680 | 9,95 € | 16 | M16 | 80 | 15,7mm | 55mm | 25 | 9 | ||
| K0698.16801 | 9,49 € | 16 | M14 | 80 | 15,7mm | 55mm | 25 | 9 | ||
| K0698.18100 | 10,20 € | 18 | M16 | 100 | 17,7mm | 65mm | 28 | 10 | ||
| K0698.18125 | 10,79 € | 18 | M16 | 125 | 17,7mm | 85mm | 28 | 10 | ||
| K0698.18160 | 11,92 € | 18 | M16 | 160 | 17,7mm | 100mm | 28 | 10 | ||
| K0698.18200 | 13,28 € | 18 | M16 | 200 | 17,7mm | 125mm | 28 | 10 | ||
| K0698.18250 | 14,91 € | 18 | M16 | 250 | 17,7mm | 150mm | 28 | 10 | ||
| K0698.1863 | 9,69 € | 18 | M16 | 63 | 17,7mm | 45mm | 28 | 10 | ||
| K0698.1880 | 9,95 € | 18 | M16 | 80 | 17,7mm | 55mm | 28 | 10 | ||
| K0698.20100 | 13,67 € | 20 | M20 | 100 | 19,7mm | 65mm | 32 | 12 | ||
| K0698.20125 | 14,56 € | 20 | M20 | 125 | 19,7mm | 85mm | 32 | 12 | ||
| Objednací kód | Základná cena bez DPH | Objednat | Jmenovitý rozměr drážky | D1 | L | A | B | E1/E2 | K | CAD |
| K0698.20160 | 16,39 € | 20 | M20 | 160 | 19,7mm | 110mm | 32 | 12 | ||
| K0698.20200 | 18,19 € | 20 | M20 | 200 | 19,7mm | 125mm | 32 | 12 | ||
| K0698.20250 | 21,88 € | 20 | M20 | 250 | 19,7mm | 150mm | 32 | 12 | ||
| K0698.20315 | 24,08 € | 20 | M20 | 315 | 19,7mm | 190mm | 32 | 12 | ||
| K0698.2080 | 13,51 € | 20 | M20 | 80 | 19,7mm | 55mm | 32 | 12 | ||
| K0698.22100 | 13,82 € | 22 | M20 | 100 | 21,7mm | 65mm | 35 | 14 | ||
| K0698.22125 | 14,79 € | 22 | M20 | 125 | 21,7mm | 85mm | 35 | 14 | ||
| K0698.22160 | 16,22 € | 22 | M20 | 160 | 21,7mm | 110mm | 35 | 14 | ||
| K0698.22200 | 18,19 € | 22 | M20 | 200 | 21,7mm | 125mm | 35 | 14 | ||
| K0698.22250 | 21,30 € | 22 | M20 | 250 | 21,7mm | 150mm | 35 | 14 | ||
| K0698.22315 | 25,91 € | 22 | M20 | 315 | 21,7mm | 190mm | 35 | 14 | ||
| K0698.2280 | 13,28 € | 22 | M20 | 80 | 21,7mm | 55mm | 35 | 14 | ||
| K0698.24100 | 32,13 € | 24 | M24 | 100 | 23,7mm | 70mm | 40 | 16 | ||
| K0698.24125 | 35,02 € | 24 | M24 | 125 | 23,7mm | 85mm | 40 | 16 | ||
| K0698.24160 | 23,88 € | 24 | M24 | 160 | 23,7mm | 110mm | 40 | 16 | ||
| Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | ||||||||||
