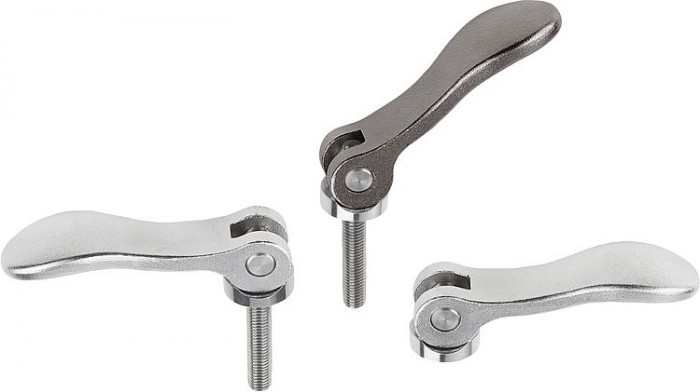

Excentrické páky nerezové s vnútorným závitom a vonkajším závitom, tlačná podložka nerezová oceľ
Popis tovaru
Kód: | 04232 |
---|---|
Výrobca: | norelem |
Ceny: | sú uvedené dole na stránke v tabuľke variánt produktu alebo na dopyt cez formulár nižšie. |
Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásielok dĺžky nad 1,7m zohľadňujeme podľa skutočných hodnôt a dodatočne, ak je to nutné upravujeme. |
zavřít
zavřít
Detail zavřít

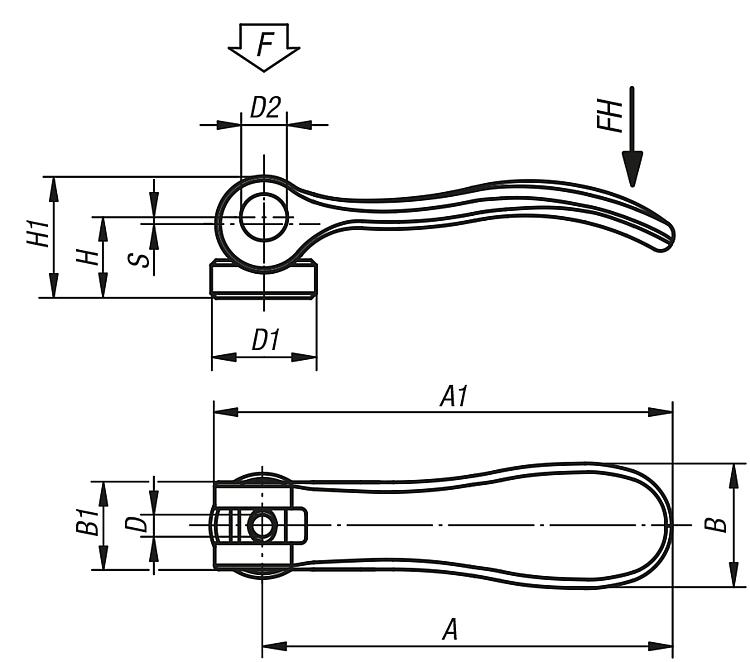

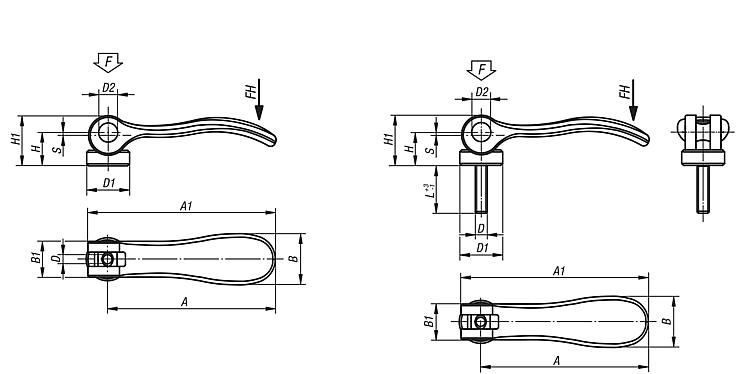

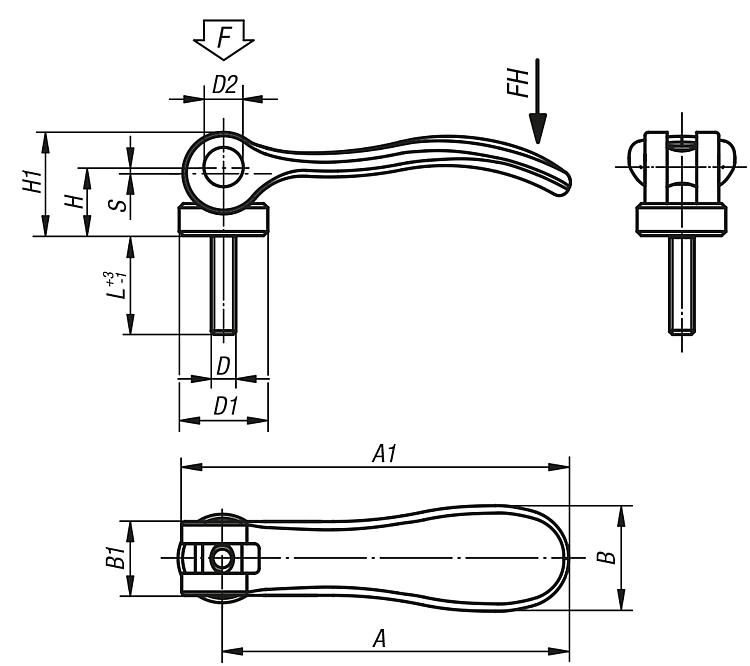

Objednací kód | Základná cena bez DPH | Objednat | Barva základního tělesa | D | d1 | d2 | B | B1 | H | H1 | A | A1 | L | Zdvih S | Upínací síla F (kN) | Ruční síla FH N | CAD |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
04232-0541004 | 15,56 € | elektrolyticky leštěno | M4 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 1 | 2,5 | 100 | |||
04232-0541004X15 | 16,11 € | elektrolyticky leštěno | M4 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 15 | 1 | 2,5 | 100 | ||
04232-0541004X20 | 16,11 € | elektrolyticky leštěno | M4 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 20 | 1 | 2,5 | 100 | ||
04232-0541004X30 | 16,11 € | elektrolyticky leštěno | M4 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 30 | 1 | 2,5 | 100 | ||
04232-0541005 | 15,56 € | elektrolyticky leštěno | M5 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 1 | 2,5 | 100 | |||
04232-0541005X20 | 16,11 € | elektrolyticky leštěno | M5 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 20 | 1 | 2,5 | 100 | ||
04232-0541005X30 | 16,11 € | elektrolyticky leštěno | M5 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 30 | 1 | 2,5 | 100 | ||
04232-0541005X40 | 16,68 € | elektrolyticky leštěno | M5 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 40 | 1 | 2,5 | 100 | ||
04232-0541005X50 | 16,68 € | elektrolyticky leštěno | M5 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 50 | 1 | 2,5 | 100 | ||
04232-0541304 | 14,03 € | pískováno | M4 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 1 | 2,5 | 100 | |||
04232-0541304X15 | 14,49 € | pískováno | M4 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 15 | 1 | 2,5 | 100 | ||
04232-0541304X20 | 14,49 € | pískováno | M4 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 20 | 1 | 2,5 | 100 | ||
04232-0541304X30 | 14,49 € | pískováno | M4 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 30 | 1 | 2,5 | 100 | ||
04232-0541305 | 14,03 € | pískováno | M5 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 1 | 2,5 | 100 | |||
04232-0541305X20 | 14,49 € | pískováno | M5 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 20 | 1 | 2,5 | 100 | ||
Objednací kód | Základná cena bez DPH | Objednat | Barva základního tělesa | D | d1 | d2 | B | B1 | H | H1 | A | A1 | L | Zdvih S | Upínací síla F (kN) | Ruční síla FH N | CAD |
04232-0541305X30 | 14,49 € | pískováno | M5 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 30 | 1 | 2,5 | 100 | ||
04232-0541305X40 | 15,04 € | pískováno | M5 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 40 | 1 | 2,5 | 100 | ||
04232-0541305X50 | 15,04 € | pískováno | M5 | 15,4mm | 8mm | 18mm | 13 | 11,4mm | 17,2mm | 52,3mm | 59,1mm | 50 | 1 | 2,5 | 100 | ||
04232-1541005 | 18,33 € | elektrolyticky leštěno | M5 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,2mm | 1,2 | 4 | 120 | |||
04232-1541005X20 | 18,94 € | elektrolyticky leštěno | M5 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 20 | 1,2 | 4 | 120 | ||
04232-1541005X30 | 18,94 € | elektrolyticky leštěno | M5 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 30 | 1,2 | 4 | 120 | ||
04232-1541005X40 | 19,66 € | elektrolyticky leštěno | M5 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 40 | 1,2 | 4 | 120 | ||
04232-1541005X50 | 19,66 € | elektrolyticky leštěno | M5 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 50 | 1,2 | 4 | 120 | ||
04232-1541006 | 18,33 € | elektrolyticky leštěno | M6 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,2mm | 1,2 | 4 | 120 | |||
04232-1541006X20 | 18,94 € | elektrolyticky leštěno | M6 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 20 | 1,2 | 4 | 120 | ||
04232-1541006X30 | 18,94 € | elektrolyticky leštěno | M6 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 30 | 1,2 | 4 | 120 | ||
04232-1541006X40 | 19,66 € | elektrolyticky leštěno | M6 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 40 | 1,2 | 4 | 120 | ||
04232-1541006X50 | 19,66 € | elektrolyticky leštěno | M6 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 50 | 1,2 | 4 | 120 | ||
04232-1541305 | 16,52 € | pískováno | M5 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,2mm | 1,2 | 4 | 120 | |||
04232-1541305X20 | 17,03 € | pískováno | M5 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 20 | 1,2 | 4 | 120 | ||
Objednací kód | Základná cena bez DPH | Objednat | Barva základního tělesa | D | d1 | d2 | B | B1 | H | H1 | A | A1 | L | Zdvih S | Upínací síla F (kN) | Ruční síla FH N | CAD |
04232-1541305X30 | 17,03 € | pískováno | M5 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 30 | 1,2 | 4 | 120 | ||
04232-1541305X40 | 17,68 € | pískováno | M5 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 40 | 1,2 | 4 | 120 | ||
04232-1541305X50 | 17,68 € | pískováno | M5 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 50 | 1,2 | 4 | 120 | ||
04232-1541306 | 16,52 € | pískováno | M6 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,2mm | 1,2 | 4 | 120 | |||
04232-1541306X20 | 17,03 € | pískováno | M6 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 20 | 1,2 | 4 | 120 | ||
04232-1541306X30 | 17,03 € | pískováno | M6 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 30 | 1,2 | 4 | 120 | ||
04232-1541306X40 | 17,68 € | pískováno | M6 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 40 | 1,2 | 4 | 120 | ||
04232-1541306X50 | 17,68 € | pískováno | M6 | 18mm | 9mm | 21,5mm | 15 | 14,7mm | 22mm | 70,4mm | 79,5mm | 50 | 1,2 | 4 | 120 | ||
04232-2541008 | 25,40 € | elektrolyticky leštěno | M8 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 1,5 | 8 | 350 | |||
04232-2541008X25 | 25,74 € | elektrolyticky leštěno | M8 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 25 | 1,5 | 8 | 350 | ||
04232-2541008X30 | 25,74 € | elektrolyticky leštěno | M8 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 30 | 1,5 | 8 | 350 | ||
04232-2541008X40 | 26,55 € | elektrolyticky leštěno | M8 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 40 | 1,5 | 8 | 350 | ||
04232-2541008X50 | 26,55 € | elektrolyticky leštěno | M8 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 50 | 1,5 | 8 | 350 | ||
04232-2541010X25 | 25,74 € | elektrolyticky leštěno | M10 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 25 | 1,5 | 8 | 350 | ||
04232-2541010X30 | 25,74 € | elektrolyticky leštěno | M10 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 30 | 1,5 | 8 | 350 | ||
Objednací kód | Základná cena bez DPH | Objednat | Barva základního tělesa | D | d1 | d2 | B | B1 | H | H1 | A | A1 | L | Zdvih S | Upínací síla F (kN) | Ruční síla FH N | CAD |
04232-2541010X40 | 26,55 € | elektrolyticky leštěno | M10 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 40 | 1,5 | 8 | 350 | ||
04232-2541010X50 | 26,55 € | elektrolyticky leštěno | M10 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 50 | 1,5 | 8 | 350 | ||
04232-2541308 | 22,86 € | pískováno | M8 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 1,5 | 8 | 350 | |||
04232-2541308X25 | 23,16 € | pískováno | M8 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 25 | 1,5 | 8 | 350 | ||
04232-2541308X30 | 23,16 € | pískováno | M8 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 30 | 1,5 | 8 | 350 | ||
04232-2541308X40 | 23,88 € | pískováno | M8 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 40 | 1,5 | 8 | 350 | ||
04232-2541308X50 | 23,88 € | pískováno | M8 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 50 | 1,5 | 8 | 350 | ||
04232-2541310X25 | 23,16 € | pískováno | M10 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 25 | 1,5 | 8 | 350 | ||
04232-2541310X30 | 23,16 € | pískováno | M10 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 30 | 1,5 | 8 | 350 | ||
04232-2541310X40 | 23,88 € | pískováno | M10 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 40 | 1,5 | 8 | 350 | ||
04232-2541310X50 | 23,88 € | pískováno | M10 | 27mm | 11mm | 33,3mm | 24 | 18,3mm | 28,8mm | 96mm | 108mm | 50 | 1,5 | 8 | 350 | ||
04232-9541003 | 14,66 € | elektrolyticky leštěno | M3 | 12mm | 6mm | 14,4mm | 11,5 | 9mm | 13,5mm | 36,2mm | 41,7mm | 1 | 1,5 | 90 | |||
04232-9541003X10 | 15,15 € | elektrolyticky leštěno | M3 | 12mm | 6mm | 14,4mm | 11,5 | 9mm | 13,5mm | 36,2mm | 41,7mm | 10 | 1 | 1,5 | 90 | ||
04232-9541003X15 | 15,15 € | elektrolyticky leštěno | M3 | 12mm | 6mm | 14,4mm | 11,5 | 9mm | 13,5mm | 36,2mm | 41,7mm | 15 | 1 | 1,5 | 90 | ||
04232-9541003X30 | 15,15 € | elektrolyticky leštěno | M3 | 12mm | 6mm | 14,4mm | 11,5 | 9mm | 13,5mm | 36,2mm | 41,7mm | 30 | 1 | 1,5 | 90 | ||
Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||||||||
