Zvieracie páky s tlačítkom s vnútorným závitom, oceľové časti z nerezovej ocele
Popis tovaru
Kód: | 06601 |
---|---|
Výrobca: | norelem |
Ceny: | sú uvedené dole na stránke v tabuľke variánt produktu alebo na dopyt cez formulár nižšie. |
Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásielok dĺžky nad 1,7m zohľadňujeme podľa skutočných hodnôt a dodatočne, ak je to nutné upravujeme. |
zavřít
zavřít
Detail zavřít

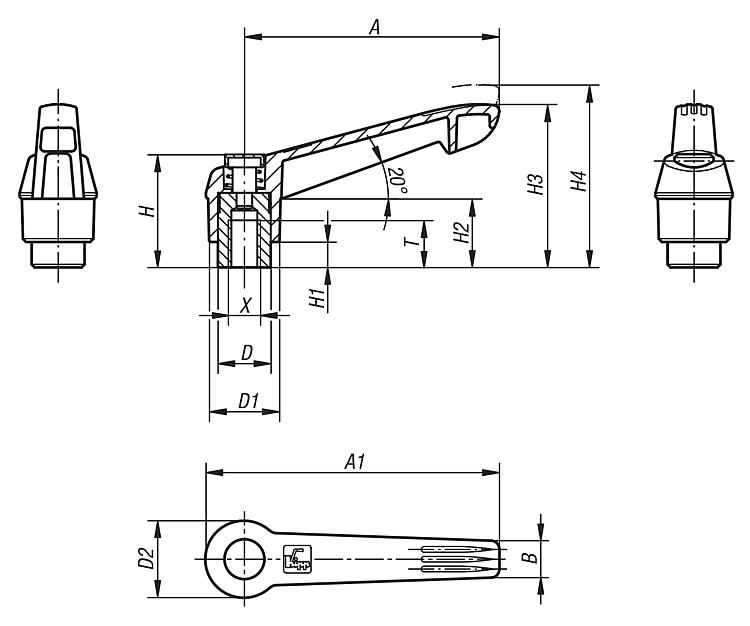

Objednací kód | Základná cena bez DPH | Objednat | Barva základního tělesa | Velikost | X | A | A1 | B | D | d1 | d2 | H | H1 | H2 | H3 | H4 | T | počet zubů | CAD |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
06601-71104 | 5,46 € | tmavošedá RAL 7021 | M4 | 40mm | 47mm | 7,5mm | 10 | 13mm | 14,5mm | 25,5mm | 4mm | 15mm | 30mm | 33,5mm | 9 | 16 | |||
06601-71105 | 5,46 € | tmavošedá RAL 7021 | M5 | 40mm | 47mm | 7,5mm | 10 | 13mm | 14,5mm | 25,5mm | 4mm | 15mm | 30mm | 33,5mm | 9 | 16 | |||
06601-71106 | 5,46 € | tmavošedá RAL 7021 | M6 | 40mm | 47mm | 7,5mm | 10 | 13mm | 14,5mm | 25,5mm | 4mm | 15mm | 30mm | 33,5mm | 9 | 16 | |||
06601-71206 | 6,45 € | tmavošedá RAL 7021 | M6 | 65mm | 75mm | 9,5mm | 13,5 | 18mm | 19,5mm | 29,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 12 | 20 | |||
06601-71208 | 6,45 € | tmavošedá RAL 7021 | M8 | 65mm | 75mm | 9,5mm | 13,5 | 18mm | 19,5mm | 29,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 12 | 20 | |||
06601-71308 | 7,94 € | tmavošedá RAL 7021 | M8 | 80mm | 91,5mm | 11mm | 16 | 21,5mm | 23mm | 38,5mm | 10mm | 24mm | 53,5mm | 58mm | 14 | 22 | |||
06601-71310 | 7,94 € | tmavošedá RAL 7021 | M10 | 80mm | 91,5mm | 11mm | 16 | 21,5mm | 23mm | 38,5mm | 10mm | 24mm | 53,5mm | 58mm | 14 | 22 | |||
06601-71410 | 11,42 € | tmavošedá RAL 7021 | M10 | 95mm | 109mm | 13mm | 19 | 25,5mm | 27,5mm | 44,6mm | 10mm | 26mm | 61mm | 66mm | 17 | 24 | |||
06601-71412 | 11,42 € | tmavošedá RAL 7021 | M12 | 95mm | 109mm | 13mm | 19 | 25,5mm | 27,5mm | 44,6mm | 10mm | 26mm | 61mm | 66mm | 17 | 24 | |||
06601-71512 | 13,76 € | tmavošedá RAL 7021 | M12 | 110mm | 126mm | 15,5mm | 23 | 30mm | 32,5mm | 50,6mm | 12mm | 33mm | 72mm | 77mm | 23 | 26 | |||
06601-71516 | 13,76 € | tmavošedá RAL 7021 | M16 | 110mm | 126mm | 15,5mm | 23 | 30mm | 32,5mm | 50,6mm | 12mm | 33mm | 72mm | 77mm | 23 | 26 | |||
06601-72104 | 5,46 € | čistě oranžová RAL 2004 | M4 | 40mm | 47mm | 7,5mm | 10 | 13mm | 14,5mm | 25,5mm | 4mm | 15mm | 30mm | 33,5mm | 9 | 16 | |||
06601-72105 | 5,46 € | čistě oranžová RAL 2004 | M5 | 40mm | 47mm | 7,5mm | 10 | 13mm | 14,5mm | 25,5mm | 4mm | 15mm | 30mm | 33,5mm | 9 | 16 | |||
06601-72106 | 5,46 € | čistě oranžová RAL 2004 | M6 | 40mm | 47mm | 7,5mm | 10 | 13mm | 14,5mm | 25,5mm | 4mm | 15mm | 30mm | 33,5mm | 9 | 16 | |||
06601-72206 | 6,45 € | čistě oranžová RAL 2004 | M6 | 65mm | 75mm | 9,5mm | 13,5 | 18mm | 19,5mm | 29,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 12 | 20 | |||
Objednací kód | Základná cena bez DPH | Objednat | Barva základního tělesa | Velikost | X | A | A1 | B | D | d1 | d2 | H | H1 | H2 | H3 | H4 | T | počet zubů | CAD |
06601-72208 | 6,45 € | čistě oranžová RAL 2004 | M8 | 65mm | 75mm | 9,5mm | 13,5 | 18mm | 19,5mm | 29,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 12 | 20 | |||
06601-72308 | 7,94 € | čistě oranžová RAL 2004 | M8 | 80mm | 91,5mm | 11mm | 16 | 21,5mm | 23mm | 38,5mm | 10mm | 24mm | 53,5mm | 58mm | 14 | 22 | |||
06601-72310 | 7,94 € | čistě oranžová RAL 2004 | M10 | 80mm | 91,5mm | 11mm | 16 | 21,5mm | 23mm | 38,5mm | 10mm | 24mm | 53,5mm | 58mm | 14 | 22 | |||
06601-72410 | 11,42 € | čistě oranžová RAL 2004 | M10 | 95mm | 109mm | 13mm | 19 | 25,5mm | 27,5mm | 44,6mm | 10mm | 26mm | 61mm | 66mm | 17 | 24 | |||
06601-72412 | 11,42 € | čistě oranžová RAL 2004 | M12 | 95mm | 109mm | 13mm | 19 | 25,5mm | 27,5mm | 44,6mm | 10mm | 26mm | 61mm | 66mm | 17 | 24 | |||
06601-72512 | 13,76 € | čistě oranžová RAL 2004 | M12 | 110mm | 126mm | 15,5mm | 23 | 30mm | 32,5mm | 50,6mm | 12mm | 33mm | 72mm | 77mm | 23 | 26 | |||
06601-72516 | 13,76 € | čistě oranžová RAL 2004 | M16 | 110mm | 126mm | 15,5mm | 23 | 30mm | 32,5mm | 50,6mm | 12mm | 33mm | 72mm | 77mm | 23 | 26 | |||
06601-73104 | 5,46 € | bezpečnostní červená RAL 3020 | M4 | 40mm | 47mm | 7,5mm | 10 | 13mm | 14,5mm | 25,5mm | 4mm | 15mm | 30mm | 33,5mm | 9 | 16 | |||
06601-73105 | 5,46 € | bezpečnostní červená RAL 3020 | M5 | 40mm | 47mm | 7,5mm | 10 | 13mm | 14,5mm | 25,5mm | 4mm | 15mm | 30mm | 33,5mm | 9 | 16 | |||
06601-73106 | 5,46 € | bezpečnostní červená RAL 3020 | M6 | 40mm | 47mm | 7,5mm | 10 | 13mm | 14,5mm | 25,5mm | 4mm | 15mm | 30mm | 33,5mm | 9 | 16 | |||
06601-73206 | 6,45 € | bezpečnostní červená RAL 3020 | M6 | 65mm | 75mm | 9,5mm | 13,5 | 18mm | 19,5mm | 29,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 12 | 20 | |||
06601-73208 | 6,45 € | bezpečnostní červená RAL 3020 | M8 | 65mm | 75mm | 9,5mm | 13,5 | 18mm | 19,5mm | 29,5mm | 6,5mm | 17,5mm | 41,5mm | 45,5mm | 12 | 20 | |||
06601-73308 | 7,94 € | bezpečnostní červená RAL 3020 | M8 | 80mm | 91,5mm | 11mm | 16 | 21,5mm | 23mm | 38,5mm | 10mm | 24mm | 53,5mm | 58mm | 14 | 22 | |||
06601-73310 | 7,94 € | bezpečnostní červená RAL 3020 | M10 | 80mm | 91,5mm | 11mm | 16 | 21,5mm | 23mm | 38,5mm | 10mm | 24mm | 53,5mm | 58mm | 14 | 22 | |||
06601-73410 | 11,42 € | bezpečnostní červená RAL 3020 | M10 | 95mm | 109mm | 13mm | 19 | 25,5mm | 27,5mm | 44,6mm | 10mm | 26mm | 61mm | 66mm | 17 | 24 | |||
Objednací kód | Základná cena bez DPH | Objednat | Barva základního tělesa | Velikost | X | A | A1 | B | D | d1 | d2 | H | H1 | H2 | H3 | H4 | T | počet zubů | CAD |
06601-73412 | 11,42 € | bezpečnostní červená RAL 3020 | M12 | 95mm | 109mm | 13mm | 19 | 25,5mm | 27,5mm | 44,6mm | 10mm | 26mm | 61mm | 66mm | 17 | 24 | |||
06601-73512 | 13,76 € | bezpečnostní červená RAL 3020 | M12 | 110mm | 126mm | 15,5mm | 23 | 30mm | 32,5mm | 50,6mm | 12mm | 33mm | 72mm | 77mm | 23 | 26 | |||
06601-73516 | 13,76 € | bezpečnostní červená RAL 3020 | M16 | 110mm | 126mm | 15,5mm | 23 | 30mm | 32,5mm | 50,6mm | 12mm | 33mm | 72mm | 77mm | 23 | 26 | |||
Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||||||||||
