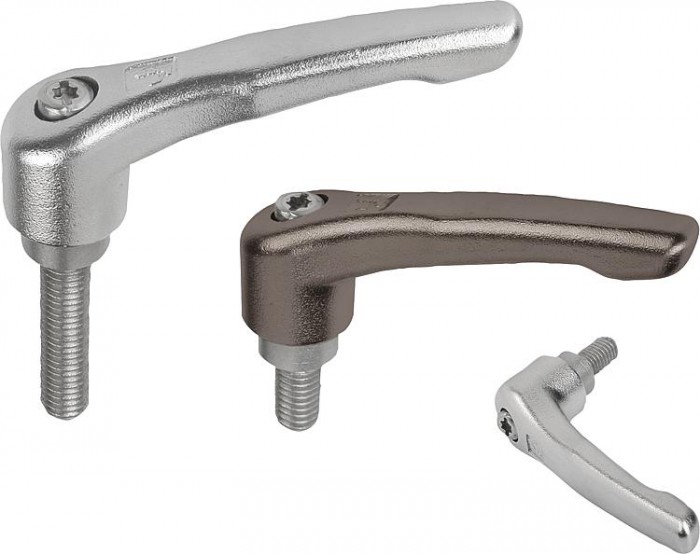

Zvieracie páky nerezové s vonkajším závitom
Popis tovaru
Kód: | 06464 |
---|---|
Výrobca: | norelem |
Ceny: | sú uvedené dole na stránke v tabuľke variánt produktu alebo na dopyt cez formulár nižšie. |
Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásielok dĺžky nad 1,7m zohľadňujeme podľa skutočných hodnôt a dodatočne, ak je to nutné upravujeme. |
zavřít
zavřít
Detail zavřít

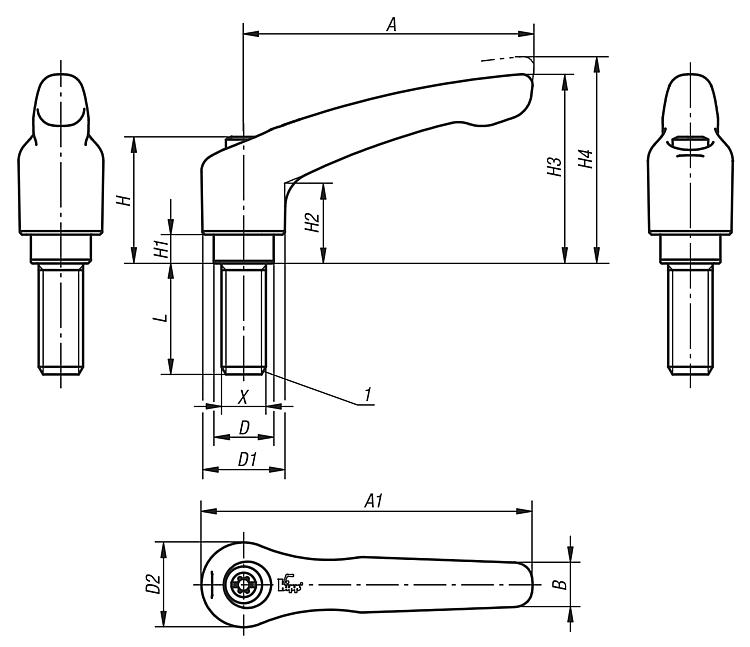

Objednací kód | Základná cena bez DPH | Objednat | Provedení | Velikost | X | D | d1 | d2 | H | H1 | H2 | H3 | H4 | A | A1 | B | počet zubů | L | CAD |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
06464-105153X10 | 14,57 € | pískováno | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 10 | |||
06464-105153X15 | 14,57 € | pískováno | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 15 | |||
06464-105153X20 | 14,57 € | pískováno | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 20 | |||
06464-105153X25 | 14,57 € | pískováno | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 25 | |||
06464-105X10 | 16,20 € | elektrolyticky leštěno | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 10 | |||
06464-105X15 | 16,20 € | elektrolyticky leštěno | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 15 | |||
06464-105X20 | 16,20 € | elektrolyticky leštěno | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 20 | |||
06464-105X25 | 16,20 € | elektrolyticky leštěno | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 25 | |||
06464-106153X10 | 14,57 € | pískováno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 10 | |||
06464-106153X15 | 14,57 € | pískováno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 15 | |||
06464-106153X20 | 14,57 € | pískováno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 20 | |||
06464-106153X25 | 14,57 € | pískováno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 25 | |||
06464-106153X30 | 14,57 € | pískováno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 30 | |||
06464-106153X40 | 15,15 € | pískováno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 40 | |||
06464-106153X50 | 15,15 € | pískováno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 50 | |||
Objednací kód | Základná cena bez DPH | Objednat | Provedení | Velikost | X | D | d1 | d2 | H | H1 | H2 | H3 | H4 | A | A1 | B | počet zubů | L | CAD |
06464-106X10 | 16,20 € | elektrolyticky leštěno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 10 | |||
06464-106X15 | 16,20 € | elektrolyticky leštěno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 15 | |||
06464-106X20 | 16,20 € | elektrolyticky leštěno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 20 | |||
06464-106X25 | 16,20 € | elektrolyticky leštěno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 25 | |||
06464-106X30 | 16,20 € | elektrolyticky leštěno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 30 | |||
06464-106X40 | 16,83 € | elektrolyticky leštěno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 40 | |||
06464-106X50 | 16,83 € | elektrolyticky leštěno | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 50 | |||
06464-206153X15 | 19,60 € | pískováno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 15 | |||
06464-206153X20 | 19,60 € | pískováno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 20 | |||
06464-206153X25 | 19,60 € | pískováno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 25 | |||
06464-206153X30 | 19,60 € | pískováno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 30 | |||
06464-206153X40 | 20,29 € | pískováno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 40 | |||
06464-206153X50 | 20,29 € | pískováno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 50 | |||
06464-206153X60 | 20,29 € | pískováno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 60 | |||
06464-206X15 | 21,77 € | elektrolyticky leštěno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 15 | |||
Objednací kód | Základná cena bez DPH | Objednat | Provedení | Velikost | X | D | d1 | d2 | H | H1 | H2 | H3 | H4 | A | A1 | B | počet zubů | L | CAD |
06464-206X20 | 21,77 € | elektrolyticky leštěno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 20 | |||
06464-206X25 | 21,77 € | elektrolyticky leštěno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 25 | |||
06464-206X30 | 21,77 € | elektrolyticky leštěno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 30 | |||
06464-206X40 | 22,51 € | elektrolyticky leštěno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 40 | |||
06464-206X50 | 22,51 € | elektrolyticky leštěno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 50 | |||
06464-206X60 | 22,51 € | elektrolyticky leštěno | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 60 | |||
06464-208153X15 | 19,60 € | pískováno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 15 | |||
06464-208153X20 | 19,60 € | pískováno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 20 | |||
06464-208153X25 | 19,60 € | pískováno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 25 | |||
06464-208153X30 | 19,60 € | pískováno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 30 | |||
06464-208153X40 | 20,29 € | pískováno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 40 | |||
06464-208153X50 | 20,29 € | pískováno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 50 | |||
06464-208153X60 | 20,29 € | pískováno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 60 | |||
06464-208X15 | 21,77 € | elektrolyticky leštěno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 15 | |||
06464-208X20 | 21,77 € | elektrolyticky leštěno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 20 | |||
Objednací kód | Základná cena bez DPH | Objednat | Provedení | Velikost | X | D | d1 | d2 | H | H1 | H2 | H3 | H4 | A | A1 | B | počet zubů | L | CAD |
06464-208X25 | 21,77 € | elektrolyticky leštěno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 25 | |||
06464-208X30 | 21,77 € | elektrolyticky leštěno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 30 | |||
06464-208X40 | 22,51 € | elektrolyticky leštěno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 40 | |||
06464-208X50 | 22,51 € | elektrolyticky leštěno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 50 | |||
06464-208X60 | 22,51 € | elektrolyticky leštěno | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 60 | |||
06464-210153X20 | 19,60 € | pískováno | M10 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 20 | |||
06464-210153X25 | 19,60 € | pískováno | M10 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 25 | |||
06464-210153X30 | 19,60 € | pískováno | M10 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 30 | |||
06464-210153X40 | 20,29 € | pískováno | M10 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 40 | |||
06464-210153X50 | 20,29 € | pískováno | M10 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 50 | |||
06464-210153X60 | 20,29 € | pískováno | M10 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 60 | |||
06464-210X20 | 21,77 € | elektrolyticky leštěno | M10 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 20 | |||
06464-210X25 | 21,77 € | elektrolyticky leštěno | M10 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 25 | |||
06464-210X30 | 21,77 € | elektrolyticky leštěno | M10 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 30 | |||
06464-210X40 | 22,51 € | elektrolyticky leštěno | M10 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 40 | |||
Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||||||||||
