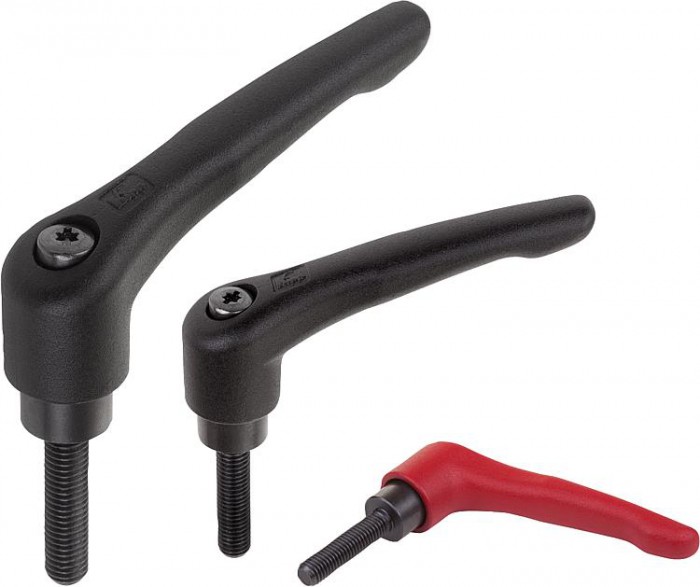

Oceľové zvieracie páky s vonkajším závitom
Popis tovaru
Kód: | 06443 |
---|---|
Výrobca: | norelem |
Ceny: | sú uvedené dole na stránke v tabuľke variánt produktu alebo na dopyt cez formulár nižšie. |
Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásielok dĺžky nad 1,7m zohľadňujeme podľa skutočných hodnôt a dodatočne, ak je to nutné upravujeme. |
zavřít
zavřít
Na stiahnutie
Datový list 06443 Ocelové svěrací páky s vnějším závitemDetail zavřít

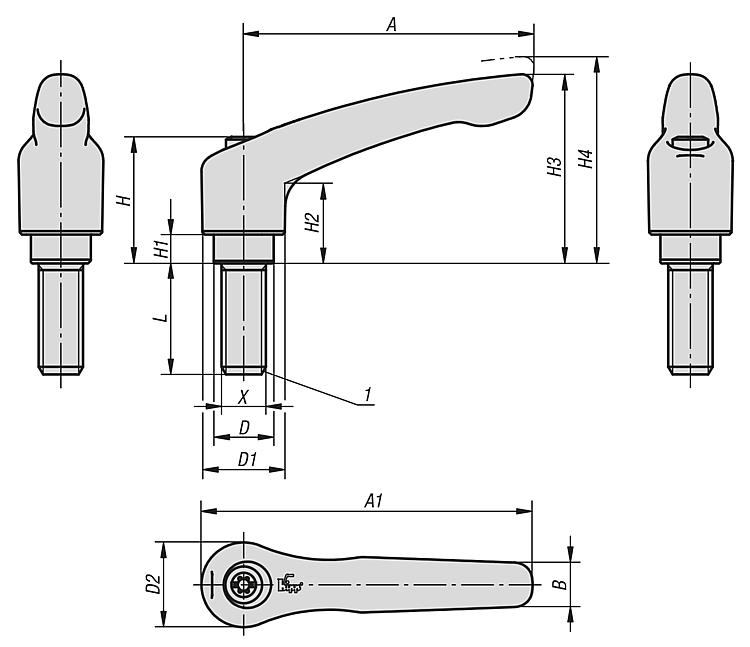

Objednací kód | Základná cena bez DPH | Objednat | Barva | Velikost | X | D | d1 | d2 | H | H1 | H2 | H3 | H4 | A | A1 | B | počet zubů | L | CAD |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
06443-1051X10 | 8,47 € | černá | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 10 | |||
06443-1051X15 | 8,47 € | černá | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 15 | |||
06443-1051X20 | 8,47 € | černá | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 20 | |||
06443-1051X25 | 8,47 € | černá | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 25 | |||
06443-1051X30 | 8,47 € | černá | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 30 | |||
06443-1051X35 | 8,70 € | černá | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 35 | |||
06443-1051X40 | 8,70 € | černá | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 40 | |||
06443-1051X45 | 8,70 € | černá | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 45 | |||
06443-1051X50 | 8,70 € | černá | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 50 | |||
06443-10527X10 | 8,47 € | rubínově červená RAL 3003 | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 10 | |||
06443-10527X15 | 8,47 € | rubínově červená RAL 3003 | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 15 | |||
06443-10527X20 | 8,47 € | rubínově červená RAL 3003 | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 20 | |||
06443-10527X25 | 8,47 € | rubínově červená RAL 3003 | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 25 | |||
06443-10527X30 | 8,47 € | rubínově červená RAL 3003 | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 30 | |||
06443-10527X35 | 8,70 € | rubínově červená RAL 3003 | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 35 | |||
Objednací kód | Základná cena bez DPH | Objednat | Barva | Velikost | X | D | d1 | d2 | H | H1 | H2 | H3 | H4 | A | A1 | B | počet zubů | L | CAD |
06443-10527X40 | 8,70 € | rubínově červená RAL 3003 | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 40 | |||
06443-10527X45 | 8,70 € | rubínově červená RAL 3003 | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 45 | |||
06443-10527X50 | 8,70 € | rubínově červená RAL 3003 | M5 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 50 | |||
06443-1061X10 | 8,47 € | černá | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 10 | |||
06443-1061X15 | 8,47 € | černá | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 15 | |||
06443-1061X20 | 8,47 € | černá | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 20 | |||
06443-1061X25 | 8,47 € | černá | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 25 | |||
06443-1061X30 | 8,47 € | černá | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 30 | |||
06443-1061X35 | 8,70 € | černá | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 35 | |||
06443-1061X40 | 8,70 € | černá | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 40 | |||
06443-1061X45 | 8,70 € | černá | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 45 | |||
06443-1061X50 | 8,70 € | černá | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 50 | |||
06443-10627X10 | 8,47 € | rubínově červená RAL 3003 | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 10 | |||
06443-10627X15 | 8,47 € | rubínově červená RAL 3003 | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 15 | |||
06443-10627X20 | 8,47 € | rubínově červená RAL 3003 | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 20 | |||
Objednací kód | Základná cena bez DPH | Objednat | Barva | Velikost | X | D | d1 | d2 | H | H1 | H2 | H3 | H4 | A | A1 | B | počet zubů | L | CAD |
06443-10627X25 | 8,47 € | rubínově červená RAL 3003 | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 25 | |||
06443-10627X30 | 8,47 € | rubínově červená RAL 3003 | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 30 | |||
06443-10627X35 | 8,70 € | rubínově červená RAL 3003 | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 35 | |||
06443-10627X40 | 8,70 € | rubínově červená RAL 3003 | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 40 | |||
06443-10627X45 | 8,70 € | rubínově červená RAL 3003 | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 45 | |||
06443-10627X50 | 8,70 € | rubínově červená RAL 3003 | M6 | 10 | 13mm | 14mm | 24,5mm | 4mm | 14,5mm | 31mm | 34mm | 40mm | 47mm | 7mm | 16 | 50 | |||
06443-2061X15 | 11,23 € | černá | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 15 | |||
06443-2061X20 | 11,23 € | černá | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 20 | |||
06443-2061X25 | 11,23 € | černá | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 25 | |||
06443-2061X30 | 11,23 € | černá | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 30 | |||
06443-2061X35 | 11,80 € | černá | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 35 | |||
06443-2061X40 | 11,80 € | černá | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 40 | |||
06443-2061X45 | 11,80 € | černá | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 45 | |||
06443-2061X50 | 11,80 € | černá | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 50 | |||
06443-2061X55 | 11,80 € | černá | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 55 | |||
Objednací kód | Základná cena bez DPH | Objednat | Barva | Velikost | X | D | d1 | d2 | H | H1 | H2 | H3 | H4 | A | A1 | B | počet zubů | L | CAD |
06443-2061X60 | 11,80 € | černá | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 60 | |||
06443-20627X15 | 11,23 € | rubínově červená RAL 3003 | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 15 | |||
06443-20627X20 | 11,23 € | rubínově červená RAL 3003 | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 20 | |||
06443-20627X25 | 11,23 € | rubínově červená RAL 3003 | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 25 | |||
06443-20627X30 | 11,23 € | rubínově červená RAL 3003 | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 30 | |||
06443-20627X35 | 11,80 € | rubínově červená RAL 3003 | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 35 | |||
06443-20627X40 | 11,80 € | rubínově červená RAL 3003 | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 40 | |||
06443-20627X45 | 11,80 € | rubínově červená RAL 3003 | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 45 | |||
06443-20627X50 | 11,80 € | rubínově červená RAL 3003 | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 50 | |||
06443-20627X55 | 11,80 € | rubínově červená RAL 3003 | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 55 | |||
06443-20627X60 | 11,80 € | rubínově červená RAL 3003 | M6 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 60 | |||
06443-2081X15 | 11,23 € | černá | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 15 | |||
06443-2081X20 | 11,23 € | černá | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 20 | |||
06443-2081X25 | 11,23 € | černá | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 25 | |||
06443-2081X30 | 11,23 € | černá | M8 | 13,5 | 18,5mm | 19mm | 28,5mm | 6,5mm | 17,5mm | 42,5mm | 45,5mm | 65mm | 74,5mm | 10mm | 20 | 30 | |||
Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||||||||||
