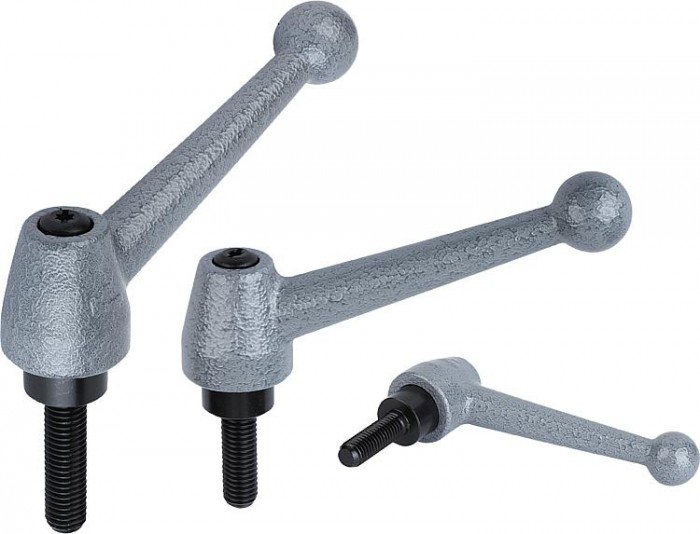

Oceľové zvieracie páky s vonkajším závitom
Popis tovaru
Kód: | 06441 |
---|---|
Výrobca: | norelem |
Ceny: | sú uvedené dole na stránke v tabuľke variánt produktu alebo na dopyt cez formulár nižšie. |
Termín dodania: | bežne cca 7 až 10 dní od objednania, v závislosti od množstva a aktuálnych zásob. Konkrétne termíny dodania overujeme a potvrdzujeme emailom, individuálne podľa zákazky. V prípade nedostupnosti tovaru je možné objednávku zrušiť. Viac informácií. |
Cenu dopravy zásielok dĺžky nad 1,7m zohľadňujeme podľa skutočných hodnôt a dodatočne, ak je to nutné upravujeme. |
zavřít
zavřít
Na stiahnutie
Datový list 06441 Ocelové svěrací páky s vnějším závitemDetail zavřít

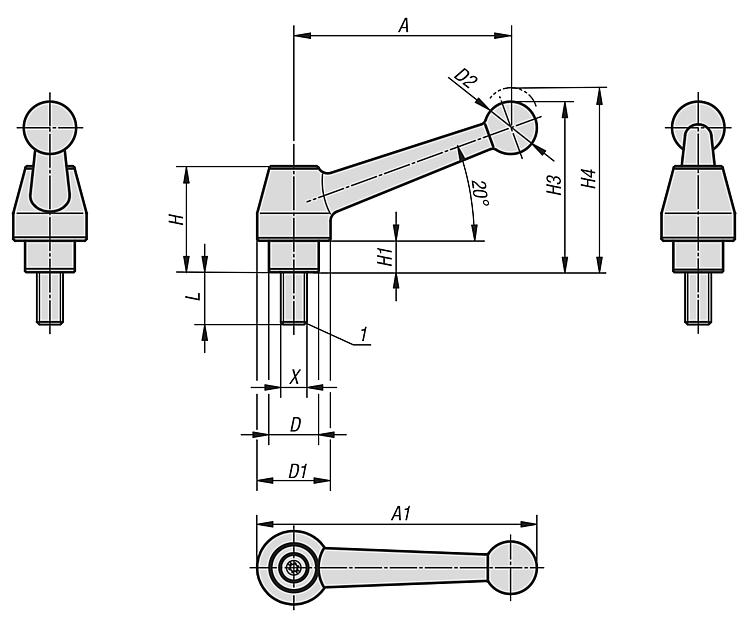

Objednací kód | Základná cena bez DPH | Objednat | Materiál základní těleso | Velikost | X | D | d1 | d2 | H | H1 | H3 | H4 | A | A1 | počet zubů | L | CAD |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
06441-110X20 | 20,35 € | ocel | M10 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 20 | |||
06441-110X25 | 20,35 € | ocel | M10 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 25 | |||
06441-110X30 | 20,35 € | ocel | M10 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 30 | |||
06441-110X35 | 21,33 € | ocel | M10 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 35 | |||
06441-110X40 | 21,33 € | ocel | M10 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 40 | |||
06441-110X45 | 21,33 € | ocel | M10 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 45 | |||
06441-110X50 | 21,33 € | ocel | M10 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 50 | |||
06441-110X55 | 21,33 € | ocel | M10 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 55 | |||
06441-110X60 | 21,33 € | ocel | M10 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 60 | |||
06441-110X70 | 22,06 € | ocel | M10 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 70 | |||
06441-110X80 | 22,06 € | ocel | M10 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 80 | |||
06441-110X90 | 22,06 € | ocel | M10 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 90 | |||
06441-112X20 | 20,35 € | ocel | M12 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 20 | |||
06441-112X25 | 20,35 € | ocel | M12 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 25 | |||
06441-112X30 | 20,35 € | ocel | M12 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 30 | |||
Objednací kód | Základná cena bez DPH | Objednat | Materiál základní těleso | Velikost | X | D | d1 | d2 | H | H1 | H3 | H4 | A | A1 | počet zubů | L | CAD |
06441-112X35 | 21,33 € | ocel | M12 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 35 | |||
06441-112X40 | 21,33 € | ocel | M12 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 40 | |||
06441-112X45 | 21,33 € | ocel | M12 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 45 | |||
06441-112X50 | 21,33 € | ocel | M12 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 50 | |||
06441-112X55 | 21,33 € | ocel | M12 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 55 | |||
06441-112X60 | 21,33 € | ocel | M12 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 60 | |||
06441-112X70 | 22,06 € | ocel | M12 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 70 | |||
06441-112X80 | 22,06 € | ocel | M12 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 80 | |||
06441-112X90 | 22,06 € | ocel | M12 | 19 | 28mm | 20mm | 41mm | 12mm | 49mm | 72mm | 83mm | 107mm | 24 | 90 | |||
06441-212X25 | 27,36 € | ocel | M12 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 25 | |||
06441-212X30 | 27,36 € | ocel | M12 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 30 | |||
06441-212X35 | 28,39 € | ocel | M12 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 35 | |||
06441-212X40 | 28,39 € | ocel | M12 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 40 | |||
06441-212X45 | 28,39 € | ocel | M12 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 45 | |||
06441-212X50 | 28,39 € | ocel | M12 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 50 | |||
Objednací kód | Základná cena bez DPH | Objednat | Materiál základní těleso | Velikost | X | D | d1 | d2 | H | H1 | H3 | H4 | A | A1 | počet zubů | L | CAD |
06441-212X55 | 28,39 € | ocel | M12 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 55 | |||
06441-212X60 | 28,39 € | ocel | M12 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 60 | |||
06441-212X70 | 29,33 € | ocel | M12 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 70 | |||
06441-212X80 | 29,33 € | ocel | M12 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 80 | |||
06441-212X90 | 29,33 € | ocel | M12 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 90 | |||
06441-216X25 | 27,36 € | ocel | M16 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 25 | |||
06441-216X30 | 27,36 € | ocel | M16 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 30 | |||
06441-216X35 | 28,39 € | ocel | M16 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 35 | |||
06441-216X40 | 28,39 € | ocel | M16 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 40 | |||
06441-216X45 | 28,39 € | ocel | M16 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 45 | |||
06441-216X50 | 28,39 € | ocel | M16 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 50 | |||
06441-216X55 | 28,39 € | ocel | M16 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 55 | |||
06441-216X60 | 28,39 € | ocel | M16 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 60 | |||
06441-216X70 | 29,33 € | ocel | M16 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 70 | |||
06441-216X80 | 29,33 € | ocel | M16 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 80 | |||
Objednací kód | Základná cena bez DPH | Objednat | Materiál základní těleso | Velikost | X | D | d1 | d2 | H | H1 | H3 | H4 | A | A1 | počet zubů | L | CAD |
06441-216X90 | 29,33 € | ocel | M16 | 23 | 35mm | 25mm | 50mm | 12mm | 56mm | 87,5mm | 108mm | 138mm | 26 | 90 | |||
06441-316X30 | 37,77 € | ocel | M16 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 30 | |||
06441-316X40 | 39,02 € | ocel | M16 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 40 | |||
06441-316X50 | 39,02 € | ocel | M16 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 50 | |||
06441-316X60 | 39,02 € | ocel | M16 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 60 | |||
06441-316X70 | 40,63 € | ocel | M16 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 70 | |||
06441-316X80 | 40,63 € | ocel | M16 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 80 | |||
06441-316X90 | 40,63 € | ocel | M16 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 90 | |||
06441-320X30 | 37,77 € | ocel | M20 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 30 | |||
06441-320X40 | 39,02 € | ocel | M20 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 40 | |||
06441-320X50 | 39,02 € | ocel | M20 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 50 | |||
06441-320X60 | 39,02 € | ocel | M20 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 60 | |||
06441-320X70 | 40,63 € | ocel | M20 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 70 | |||
06441-320X80 | 40,63 € | ocel | M20 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 80 | |||
06441-320X90 | 40,63 € | ocel | M20 | 30 | 43mm | 30mm | 58,5mm | 12mm | 65mm | 99,5mm | 132mm | 168,5mm | 36 | 90 | |||
Uvedené ceny sú základné pri odbere od 1 ks. V prípade väčšieho množstva Vám vypracujeme individuálnu cenovú ponuku. | |||||||||||||||||
