Vertikálne upínače typ 1

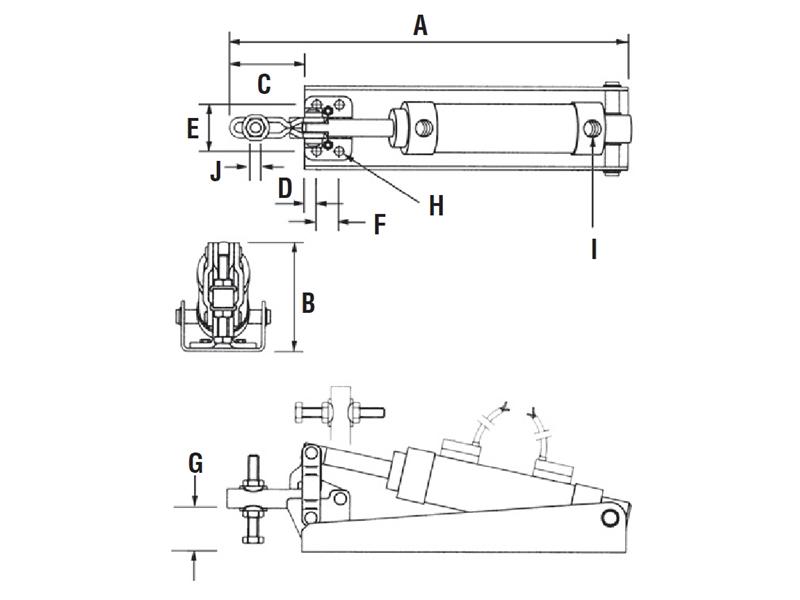

| Part No. | A | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | Holding Force | Weight |
| V75X | 178 | 50 | 30 | 5 | 24 | 16 | 18 | 4.4 | 1/8"BSP | M5×35 | 75daN | 0.40Kg |
| V150X | 227 | 64 | 42 | 7 | 27 | 12.7 | 24 | 5.1 | 1/8"BSP | M6×50 | 150daN | 0.65Kg |
| V250X | 309 | 85 | 75 | 8 | 32 | 19 | 35 | 7.1 | 1/8"BSP | M8×60 | 250daN | 1.20Kg |
| V450X | 408 | 122 | 124 | 10 | 45 | 32 | 54 | 8.7 | 1/8"BSP | M12×100 | 450daN | 2.75Kg |
