Pneumatický upínač s posuvnou tyčou
Pneumatic Vertical and
Push-Pull Clamps

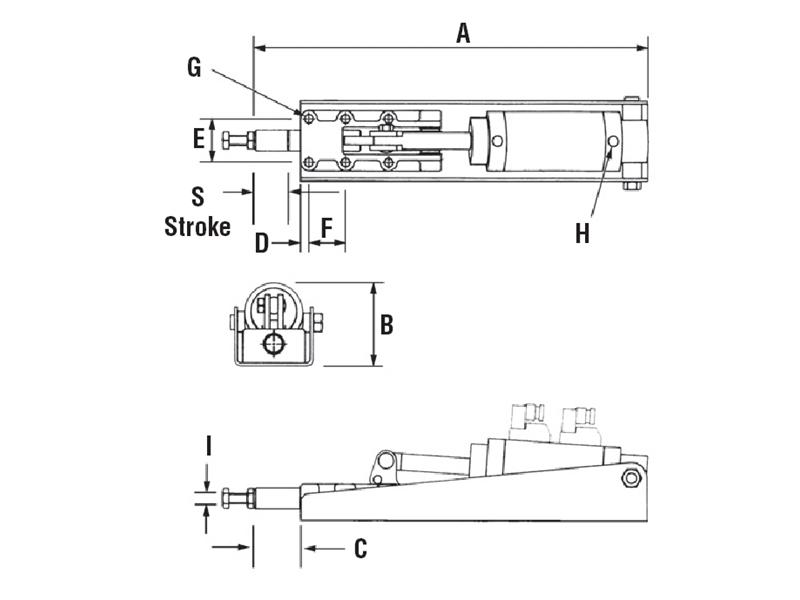

| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | S | Holding Force | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P600X | 325 | 53 | 41 | 25 | 33.3 | 36.5 | 5.5 | 1/8"BSP | M8×30 | 25 | 600daN | 1.45Kg |
| P1200X | 435 | 75 | 55 | 8 | 41 | 35 | 8.5 | 1/8"BSP | M10×40 | 32 | 1200daN | 3.70Kg |
| P2500X | 577 | 96 | 102 | 12 | 54 | 45 | 10.3 | 1/4"BSP | M12×60 | 50 | 2500daN | 7.40Kg |
