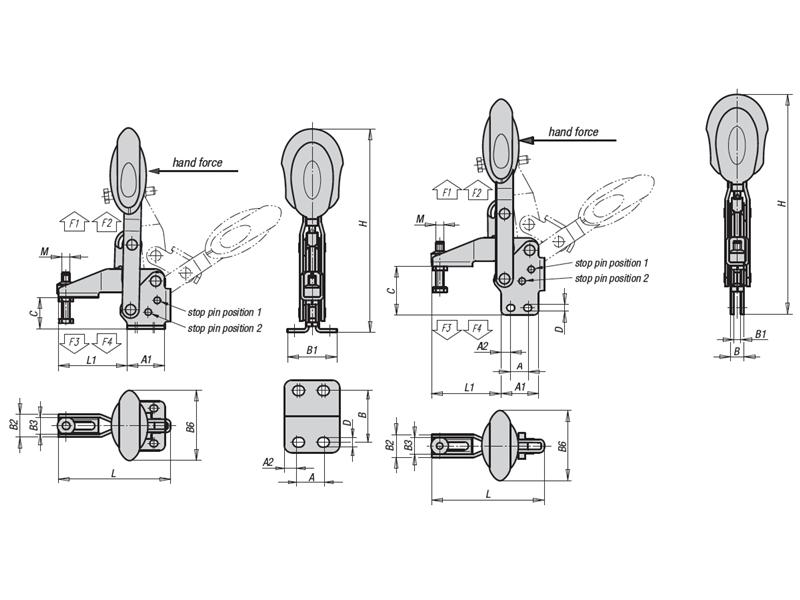

Vertikálne upínače s poistkou Interlock+
| Part No. |
M |
A (mm) |
A1 (mm) |
A2 (mm) |
B (mm) |
B1 (mm) |
B2 (mm) |
B3 (mm) |
B6 (mm) |
C (mm) |
D (mm) |
H (mm) |
L (mm) |
L1 (mm) |
| „V150/1BKL“: |
M6×35 |
14 |
29 |
7 |
10.2 |
5.2 |
17.5 |
12.4 |
53.4 |
37.6 |
5.5 |
175.7 |
86.5 |
53 |
| „V250/1BKL“: |
M8×45 |
21 |
39 |
9 |
10.2 |
5.2 |
20.6 |
15.5 |
51.1 |
49 |
6.8 |
207.6 |
107 |
62 |
| „V350/1BKL“: |
M10×55 |
32 |
50 |
8 |
14.1 |
7.1 |
25.5 |
18.4 |
56.5 |
62.3 |
9 |
254 |
153 |
95 |
| „V450/1BKL“: |
M12×70 |
32 |
53 |
10.5 |
14.1 |
7.1 |
28 |
20.9 |
56.5 |
69.8 |
8.8 |
271.9 |
173.5 |
113.5 |
| „V150/2BKL“: |
M6×35 |
14 |
29 |
7 |
27 |
38 |
17.5 |
12.4 |
53.4 |
24.7 |
5.5 |
162.9 |
86.5 |
53 |
| „V250/2BKL“: |
M8×45 |
21 |
39 |
9 |
32 |
45 |
20.6 |
15.5 |
51.1 |
32.7 |
6.8 |
191.4 |
107 |
62 |
| „V350/2BKL“: |
M10×55 |
32 |
50 |
8 |
45 |
64 |
25.5 |
18.4 |
56.5 |
38.7 |
9 |
230.5 |
153 |
95 |
| „V450/2BKL“: |
M12×70 |
32 |
53 |
10.5 |
45 |
63 |
28 |
20.9 |
56.5 |
46.7 |
8.8 |
249.1 |
173.5 |
113.5 |
V150/1BKL
V250/1BKL
V350/1BKL
V450/1BKL
V150/2BKL
V250/2BKL
V350/2BKL
V450/2BKL
❱
