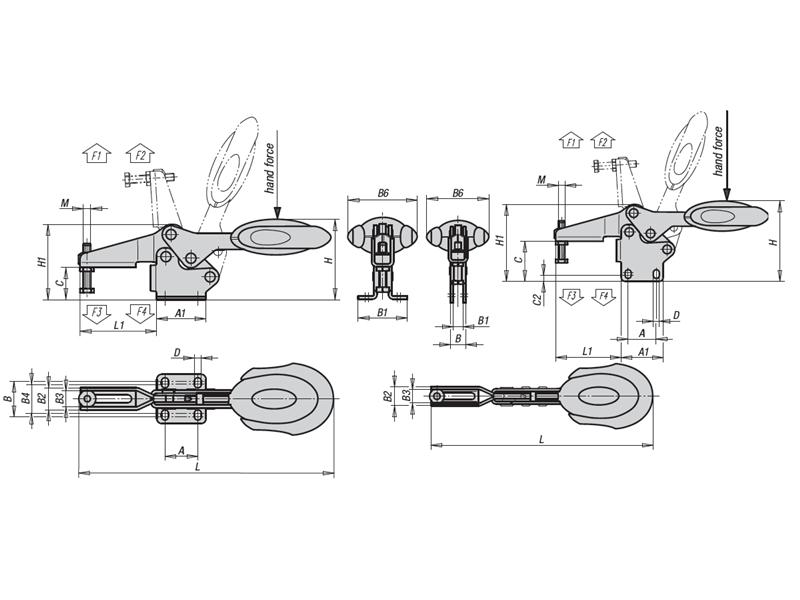

Horizontálne upínače s poistkou Interlock+
| Part No. | M | A (mm) | A1 (mm) | B (mm) | B1 (mm) | B2 (mm) | B3 (mm) | B4 (mm) | B6 (mm) | C (mm) | D (mm) | H (mm) | H1 (mm) | L (mm) | L1 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H150/1BKL | M6×35 | 26 | 39 | 6.5 | 14.1 | 9.1 | 17.5 | 12.4 | 43.5 | 37 | 5.5 | 74.2 | 71 | 186.8 | 60.5 |
| H250/1BKL | M8×45 | 26 | 44 | 9 | 14.1 | 9.1 | 21 | 15.7 | 41.5 | 46.5 | 6.2 | 88.2 | 84.4 | 223.2 | 74.9 |
| H350/1BKL | M10×55 | 41.5 | 59 | 9 | 16.2 | 9.2 | 26 | 18.7 | 47 | 59.6 | 8.8 | 114.4 | 107.5 | 279.3 | 103.9 |
| H450/1BKL | M12×70 | 44 | 65 | 11 | 16.2 | 67 | 28 | 20.9 | 47 | 75.9 | 8.5 | 128.4 | 125.2 | 314.7 | 122 |
| H150/2BKL | M6×35 | 26 | 39 | 6.5 | 28 | 39 | 17.5 | 12.4 | 43.5 | 25.5 | 5.5 | 63.2 | 59.5 | 186.7 | 60.5 |
| H250/2BKL | M8×45 | 26 | 44 | 9 | 31 | 45 | 21 | 15.7 | 41.5 | 32.2 | 6.2 | 73.9 | 70 | 223.2 | 74.9 |
| H350/2BKL | M10×55 | 41.5 | 59 | 9 | 43 | 59 | 26 | 18.7 | 47 | 40 | 8.8 | 94.8 | 87.9 | 279.4 | 103.9 |
| H450/2BKL | M12×70 | 44 | 65 | 10 | 42 | 67 | 28 | 20.9 | 47 | 52.3 | 8.5 | 104.8 | 101.6 | 314.7 | 122 |
