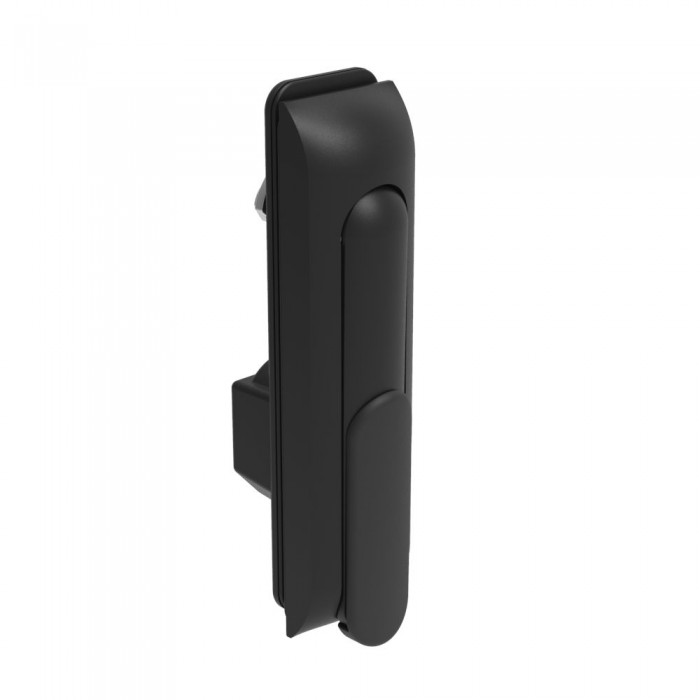

H3–50 – Vícebodový uzavírací systém

Popis produktu

Kód:	H3-50
Výrobce:	Southco
Ceny:	jsou uvedeny dole na stránce v tabulce variant produktu, nebo na poptávku přes formulář níže.
Termín dodání:	běžně cca 7 až 10 dnů od objednání, v závislosti na množství a aktuálních zásobách. Konkrétní termíny dodání ověřujeme a potvrzujeme emailem, individuálně dle zakázky. V případě nedostupnosti zboží lze objednávku zrušit. Více informací.

zavřít

3D modely

JMÉNO:
E-MAIL:
WWW:
TEXT:

Díl – objednací číslo: H3-50 – Vícebodový uzavírací systém | H3-50
Formát 3D:

Specifikujte prosím do pole níže konkrétní objednací kód, ke kterému žádáte zaslat 3D model nebo si jej stáhněte z tabulky dostupných variant v dolní části stránky produktu a to tlačítkem 3D nebo Stáhnout.

Objednací kód: Firma: Jméno: Příjmení: E-mail: Telefon: Text:

Vážení zákazníci, informujeme vás v souladu s nařízením EU, že poskytnuté informace nejsou námi dále nijak používány ani uschovány a slouží pouze pro vyřízení této žádosti. Více informací ZDE.

zavřít

Ke stažení

katalogový list

technický list

Detail zavřít

Zruš filtr
Objednací kód	Základní cena bez DPH	Objednat	Material	Finish	Locking Option	Access Restriction	Color/Appearance	Locking Option	Size Series	Sealed	Secondary Padlock Hasp	Type	Latching Points	CAD
H3-50-100-044	797,50 Kč		Zinc Alloy	Chrome Plated			Satin		Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-100-050	797,50 Kč		Zinc Alloy	Powder Coat			Black			No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-100-144	922,00 Kč		Zinc Alloy	Chrome Plated			Satin		Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-100-150	922,00 Kč		Zinc Alloy	Powder Coat			Black			Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-101-044	828,00 Kč		Zinc Alloy	Chrome Plated	CH 751 Key (2 Keys Included)		Satin		Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-101-050	828,00 Kč		Zinc Alloy	Powder Coat	CH 751 Key (2 Keys Included)		Black			No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-101-144	952,50 Kč		Zinc Alloy	Chrome Plated	CH 751 Key (2 Keys Included)		Satin		Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-101-150	952,50 Kč		Zinc Alloy	Powder Coat	CH 751 Key (2 Keys Included)		Black			Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-102-044	828,00 Kč		Zinc Alloy	Chrome Plated	CH 300 Key		Satin		Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-102-050	828,00 Kč		Zinc Alloy	Powder Coat	CH 300 Key		Black			No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-102-144	952,50 Kč		Zinc Alloy	Chrome Plated	CH 300 Key		Satin		Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-102-150	952,50 Kč		Zinc Alloy	Powder Coat	CH 300 Key		Black			Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-103-044	828,00 Kč		Zinc Alloy	Chrome Plated	CH 333 Key		Satin		Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-103-050	828,00 Kč		Zinc Alloy	Powder Coat	CH 333 Key		Black			No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-103-144	952,50 Kč		Zinc Alloy	Chrome Plated	CH 333 Key		Satin		Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
Objednací kód	Základní cena bez DPH	Objednat	Material	Finish	Locking Option	Access Restriction	Color/Appearance	Locking Option	Size Series	Sealed	Secondary Padlock Hasp	Type	Latching Points	CAD
H3-50-103-150	952,50 Kč		Zinc Alloy	Powder Coat	CH 333 Key		Black			Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-120-044	797,50 Kč		Zinc Alloy	Chrome Plated	Non-Locking with detent		Satin		Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-120-050	797,50 Kč		Zinc Alloy	Powder Coat	Non-Locking with detent		Black			No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-120-144	922,00 Kč		Zinc Alloy	Chrome Plated	Non-Locking with detent		Satin		Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-120-150	922,00 Kč		Zinc Alloy	Powder Coat	Non-Locking with detent		Black			Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-121-044	855,50 Kč		Zinc Alloy	Chrome Plated	CH 751 Key DIN		Satin		Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-121-050	855,50 Kč		Zinc Alloy	Powder Coat	CH 751 Key DIN		Black			No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-121-144	981,50 Kč		Zinc Alloy	Chrome Plated	CH 751 Key DIN		Satin		Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-121-150	981,50 Kč		Zinc Alloy	Powder Coat	CH 751 Key DIN		Black			Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-122-044	855,50 Kč		Zinc Alloy	Chrome Plated	CH 300 Key DIN		Satin		Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-122-050	855,50 Kč		Zinc Alloy	Powder Coat	CH 300 Key DIN		Black			No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-122-144	981,50 Kč		Zinc Alloy	Chrome Plated	CH 300 Key DIN		Satin		Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-122-150	981,50 Kč		Zinc Alloy	Powder Coat	CH 300 Key DIN		Black			Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-123-044	855,50 Kč		Zinc Alloy	Chrome Plated	CH 333 Key DIN		Satin		Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-123-050	855,50 Kč		Zinc Alloy	Powder Coat	CH 333 Key DIN		Black			No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
Objednací kód	Základní cena bez DPH	Objednat	Material	Finish	Locking Option	Access Restriction	Color/Appearance	Locking Option	Size Series	Sealed	Secondary Padlock Hasp	Type	Latching Points	CAD
H3-50-123-144	981,50 Kč		Zinc Alloy	Chrome Plated	CH 333 Key DIN		Satin		Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-123-150	981,50 Kč		Zinc Alloy	Powder Coat	CH 333 Key DIN		Black			Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-140-044	828,00 Kč		Zinc Alloy	Chrome Plated			Satin	3mm Triangle DIN	Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-140-050	828,00 Kč		Zinc Alloy	Powder Coat			Black	3mm Triangle DIN		No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-140-144	952,50 Kč		Zinc Alloy	Chrome Plated			Satin	3mm Triangle DIN	Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-140-150	952,50 Kč		Zinc Alloy	Powder Coat			Black	3mm Triangle DIN		Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-141-044	828,00 Kč		Zinc Alloy	Chrome Plated			Satin	5mm Triangle DIN	Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-141-050	828,00 Kč		Zinc Alloy	Powder Coat			Black	5mm Triangle DIN		No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-141-144	952,50 Kč		Zinc Alloy	Chrome Plated			Satin	5mm Triangle DIN	Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-141-150	952,50 Kč		Zinc Alloy	Powder Coat			Black	5mm Triangle DIN		Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-142-044	828,00 Kč		Zinc Alloy	Chrome Plated	Bellcore 216 Key		Satin		Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-142-050	828,00 Kč		Zinc Alloy	Powder Coat	Bellcore 216 Key		Black			No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-142-144	952,50 Kč		Zinc Alloy	Chrome Plated	Bellcore 216 Key		Satin		Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-142-150	952,50 Kč		Zinc Alloy	Powder Coat	Bellcore 216 Key		Black			Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-147-044	828,00 Kč		Zinc Alloy	Chrome Plated			Satin	8mm Triangle DIN	Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
Objednací kód	Základní cena bez DPH	Objednat	Material	Finish	Locking Option	Access Restriction	Color/Appearance	Locking Option	Size Series	Sealed	Secondary Padlock Hasp	Type	Latching Points	CAD
H3-50-147-050	828,00 Kč		Zinc Alloy	Powder Coat			Black	8mm Triangle DIN		No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-147-144	952,50 Kč		Zinc Alloy	Chrome Plated			Satin	8mm Triangle DIN	Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-147-150	952,50 Kč		Zinc Alloy	Powder Coat			Black	8mm Triangle DIN		Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-170-044	855,50 Kč		Zinc Alloy	Chrome Plated			Satin	3mm Triangle DIN	Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-170-050	855,50 Kč		Zinc Alloy	Powder Coat			Black	3mm Triangle DIN		No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-170-144	981,50 Kč		Zinc Alloy	Chrome Plated			Satin	3mm Triangle DIN	Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-170-150	981,50 Kč		Zinc Alloy	Powder Coat			Black	3mm Triangle DIN		Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-171-044	855,50 Kč		Zinc Alloy	Chrome Plated			Satin	5mm Triangle DIN	Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-171-050	855,50 Kč		Zinc Alloy	Powder Coat			Black	5mm Triangle DIN		No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-171-144	981,50 Kč		Zinc Alloy	Chrome Plated			Satin	5mm Triangle DIN	Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-171-150	981,50 Kč		Zinc Alloy	Powder Coat			Black	5mm Triangle DIN		Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-172-044	855,50 Kč		Zinc Alloy	Chrome Plated	Bellcore 216 Key DIN		Satin		Medium Size	No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-172-050	855,50 Kč		Zinc Alloy	Powder Coat	Bellcore 216 Key DIN		Black			No	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-172-144	981,50 Kč		Zinc Alloy	Chrome Plated	Bellcore 216 Key DIN		Satin		Medium Size	Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
H3-50-172-150	981,50 Kč		Zinc Alloy	Powder Coat	Bellcore 216 Key DIN		Black			Yes	No	Medium – 125 mm (4.92 in)	Single or Three – Point	3D
Uvedené ceny jsou základní při odběru od 1 ks. V případě většího množství Vám vypracujeme individuální cenovou nabídku.
