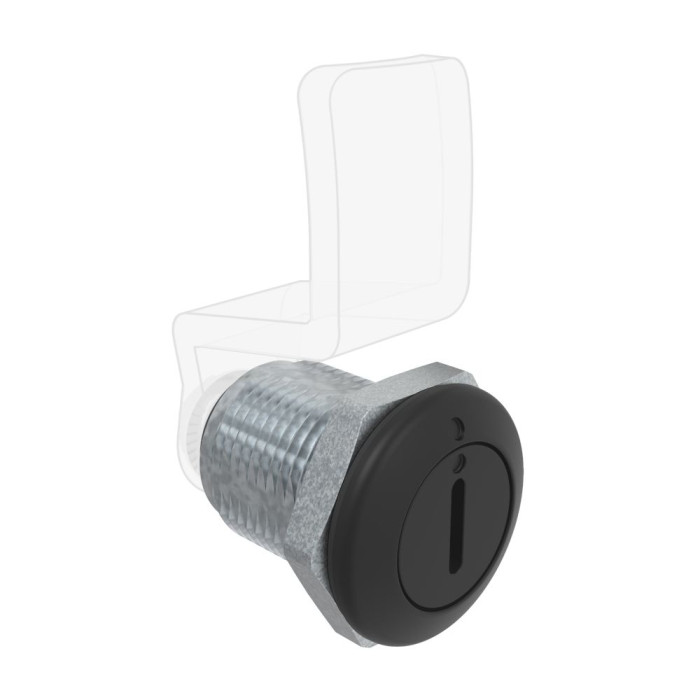

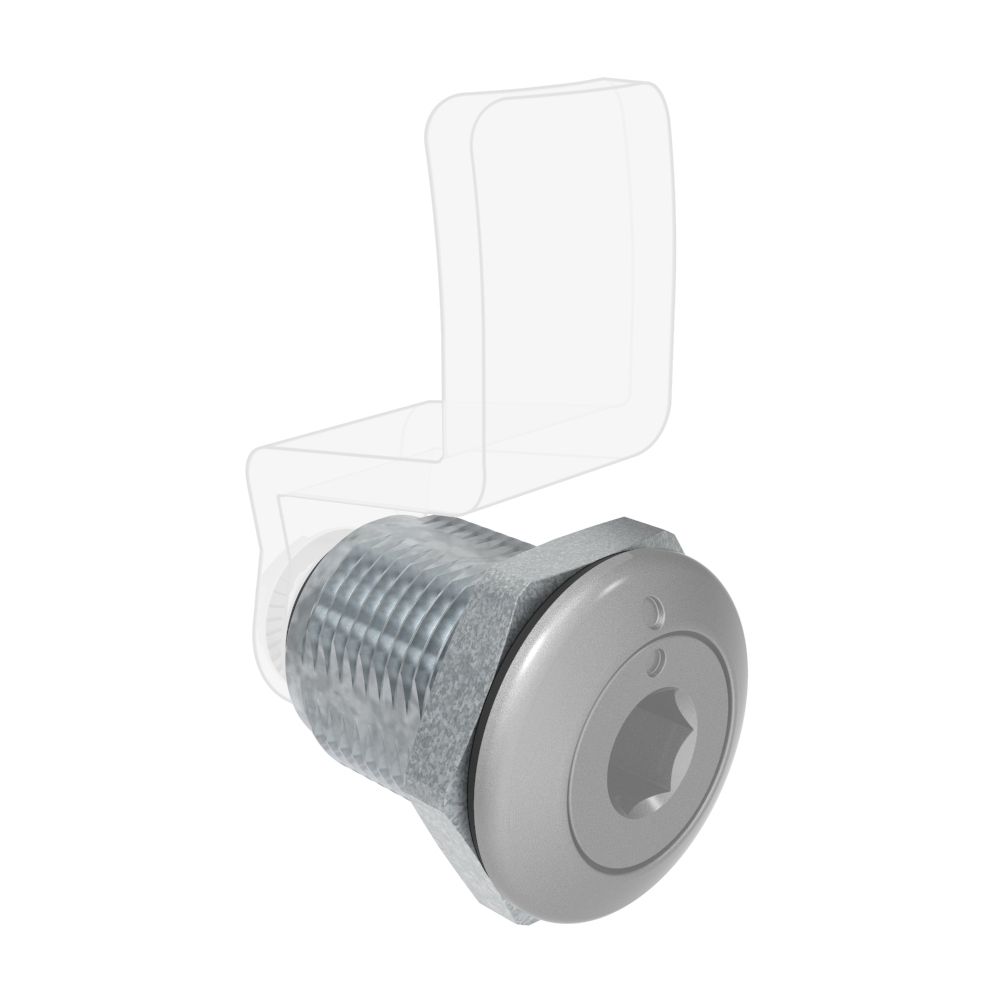

E9-AXXXF – Kompresní zámky
Popis produktu
| Kód: | E9-AXXXF |
|---|---|
| Výrobce: | Southco |
| Ceny: | jsou uvedeny dole na stránce v tabulce variant produktu, nebo na poptávku přes formulář níže. |
| Termín dodání: | běžně cca 7 až 10 dnů od objednání, v závislosti na množství a aktuálních zásobách. Konkrétní termíny dodání ověřujeme a potvrzujeme emailem, individuálně dle zakázky. V případě nedostupnosti zboží lze objednávku zrušit. Více informací. |
Kontaktní formuláře
zavřít
Detail zavřít
| Objednací kód | Základní cena bez DPH | Objednat | Material | Size | Mounting | Finish | Color/Appearance | Head Style | Grip Type | Max Outer Panel Thickness | Min. Outer Panel Thickness | Cam Attached | Rotation | Series | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E9-A000F-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | Slotted Recess | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A000F-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | Slotted Recess | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A001F-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 8 mm Hex Recess | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A001F-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 8 mm Hex Recess | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A002F-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 7 mm Triangle | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A002F-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 7 mm Triangle | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A003F-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 8 mm Triangle | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A003F-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 8 mm Triangle | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A004F-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 7 mm Square | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A004F-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 7 mm Square | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A005F-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 8 mm Square | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A005F-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 8 mm Square | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A006F-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 3 mm Double Bitted Recess | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A006F-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 3 mm Double Bitted Recess | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A007F-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 5 mm Double Bitted Recess | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| Objednací kód | Základní cena bez DPH | Objednat | Material | Size | Mounting | Finish | Color/Appearance | Head Style | Grip Type | Max Outer Panel Thickness | Min. Outer Panel Thickness | Cam Attached | Rotation | Series | CAD |
| E9-A007F-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 5 mm Double Bitted Recess | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A008F-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | 8 mm Square Recess | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A008F-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | 8 mm Square Recess | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A010F-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | Bellcore 216 | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A010F-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | Bellcore 216 | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A011F-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | Bellcore Electronics | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A011F-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | Bellcore Electronics | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A012F-01 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Black | Railway Standard | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| E9-A012F-02 | na dotaz | Zinc Alloy | 20.1 mm | Single Hole Mount | Powder Coat | Silver | Railway Standard | Fixed | 18mm | 0mm | No | Type A – Turn Clockwise to Latch | Standard | ||
| Uvedené ceny jsou základní při odběru od 1 ks. V případě většího množství Vám vypracujeme individuální cenovou nabídku. | |||||||||||||||
