Vacuum Layer Gripping Systems SPZ
Popis produktu
High-performance palletizers for warehousing and intralogistics
Together with capable palletizing robots and gantries, vacuum layer gripping systems from Schmalz increase the production output in the automated handling of products in various industries. Individually planned systems guarantee an optimal process integration and ensure a quick return on investment.
| Výrobce: | J. Schmalz GmbH |
|---|---|
| Ceny: | jsou uvedeny dole na stránce v tabulce variant produktu, nebo na poptávku přes formulář níže. |
| Termín dodání: | 3 – 6 týdnů od objednání. Více informací. |
Cenu dopravy zásilek délky nad 1,7m zohledňujeme dle skutečných hodnot a dodatečně, pokud je to nutné upravujeme. |
zavřít
zavřít
Ke stažení
The layer gripping system SPZ is available in three basic configurations, differing in their gripping technology.
SPZ with vacuum suction area
Detail zavřít
| Objednací kód | Základní cena bez DPH | Objednat | Vacuum suction area | Mech. gripping support | Global vacuum | Gripper dimensions | Gripper weight | Max. layer weight | Pallet size | Temperature operating range | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPZ | na dotaz | ✓ | ✗ | ✗ | approx. 1250 × 850 × 275mm | approx. 90kg | 250kg | Euro (1 200 × 800)mm | +5 to +40 (down to −30 on request)°C | ||
| SPZ-M | na dotaz | ✓ | ✓ | ✗ | approx. 2100 × 1800 × 1000mm | approx. 390kg | 250kg | Industry (1 200 × 1 000)mm | +5 to +40 (down to −30 on request)°C | ||
| SPZ-M-C | na dotaz | ✓ | ✓ | ✓ | approx. 2100 × 1800 × 1000mm | approx. 390kg | 250kg | US (1 015 × 1 215)mm | +5 to +40 (down to −30 on request)°C | ||
| Uvedené ceny jsou základní při odběru od 1 ks. V případě většího množství Vám vypracujeme individuální cenovou nabídku. | |||||||||||
Application
- Palletizing and de-palletizing of layers of various goods
- Use in warehouse logistics and intralogistics
- Handling of layers with gaps, mixed layers, intermediate layers, pallets, cardboard packaging and film packaging
- Palletizing and de-palletizing partial pallets by the combination of vacuum technology and mechanical gripping support
Your Benefits
- Secure and damage-free gripping of various layer sizes and layer patterns
- Higher throughput due to process acceleration
- No gripper changeover and set-up times when performing job changes
- Innovative gripping concept with mechanical support and global vacuum for additional holding forces
- Use in the freezer industry sector in areas down to −30 °C (optional)
- Skilled system design according to individual requirements

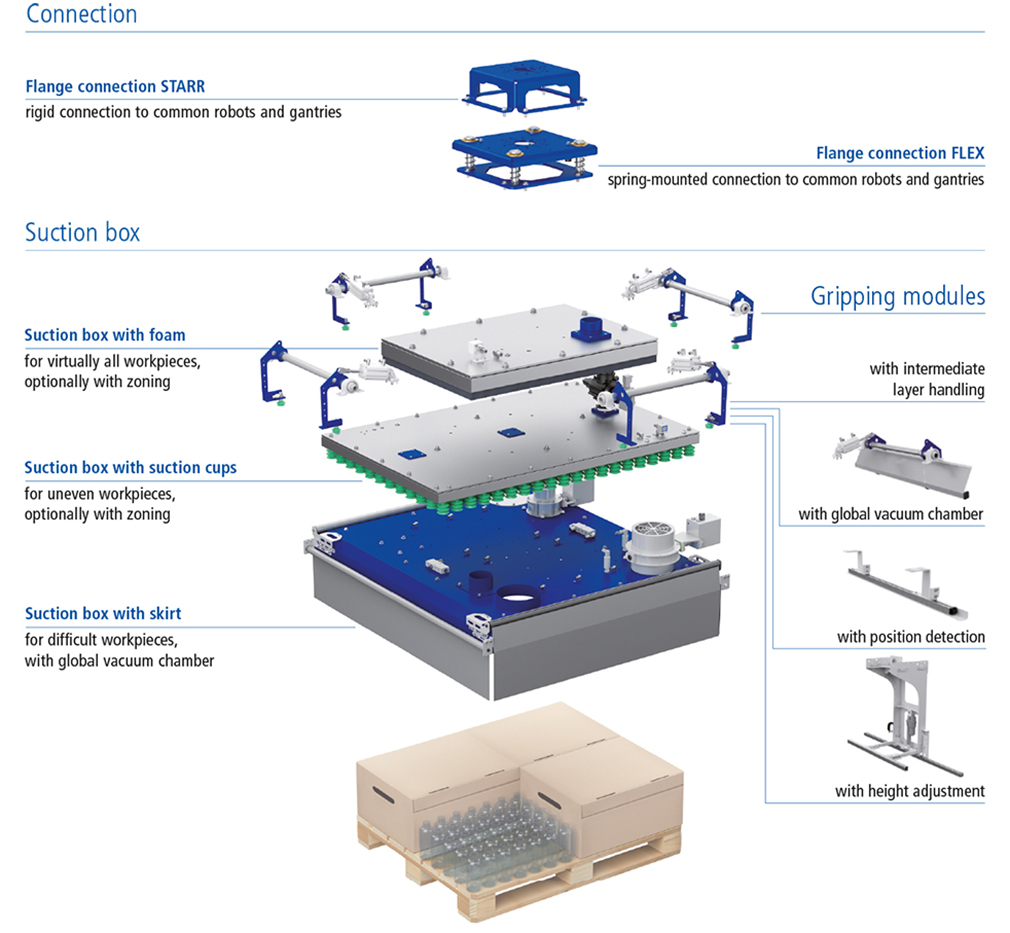

Design
