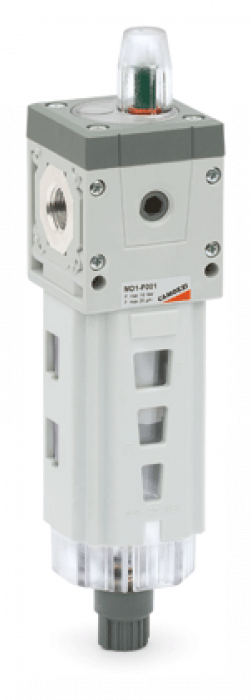

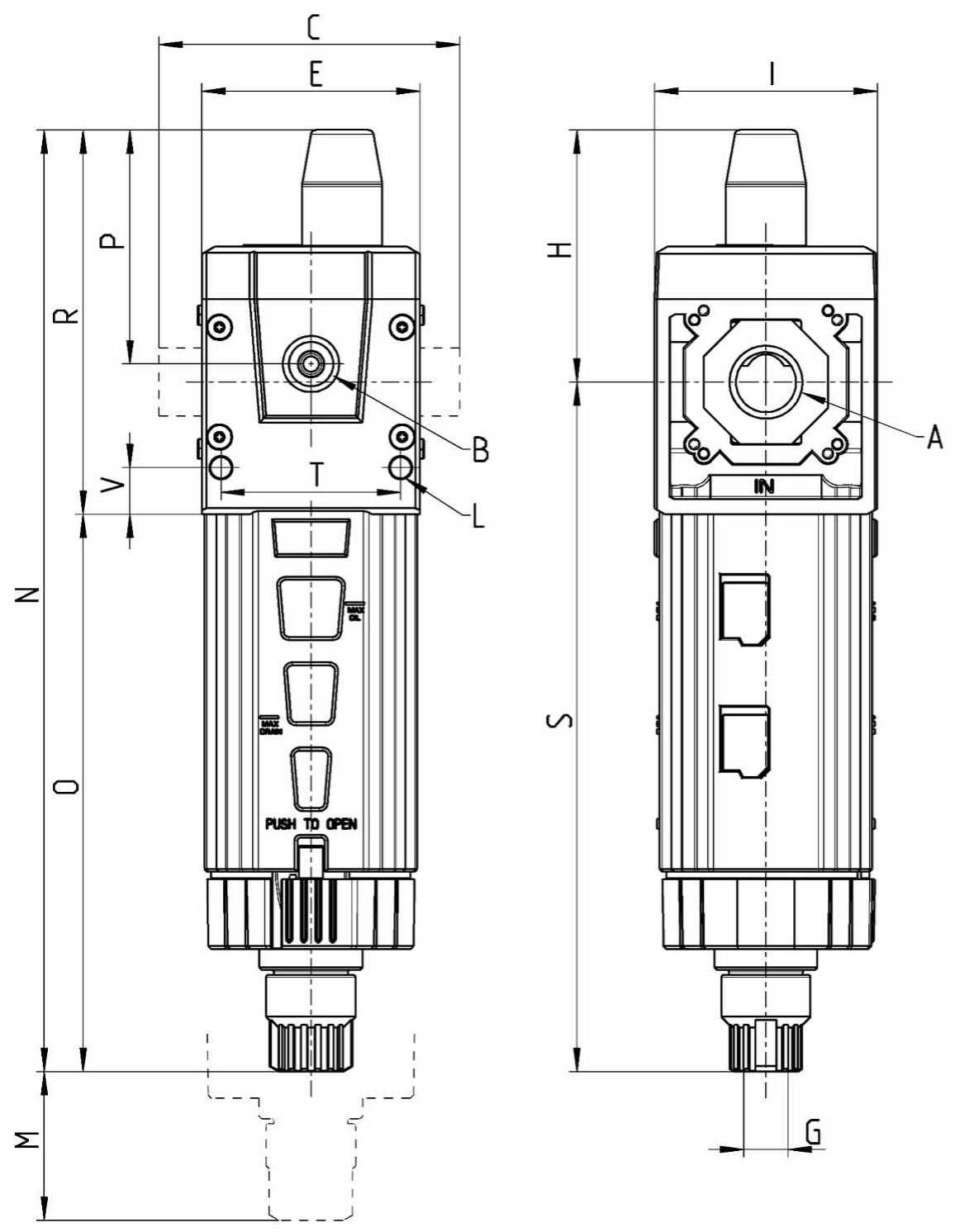

Série MD filters with visual blockage indicator – dimensions
Popis produktu
| Kód: | Series MD filters with visual blockage indicator - dimensions |
|---|---|
| Výrobce: | Camozzi sro. |
| Ceny: | jsou uvedeny dole na stránce v tabulce variant produktu, nebo na poptávku přes formulář níže. |
| Termín dodání: | běžně cca 7 až 10 dnů od objednání, v závislosti na množství a aktuálních zásobách. Konkrétní termíny dodání ověřujeme a potvrzujeme emailem, individuálně dle zakázky. V případě nedostupnosti zboží lze objednávku zrušit. Více informací. |
zavřít
zavřít
Ke stažení
Catalogue
Detail zavřít
| Objednací kód | Základní cena bez DPH | Objednat | Type | Condensate drain | Filtering element (Length (μm)) | Ports / Connections | CAD | |
|---|---|---|---|---|---|---|---|---|
| MD1-F001 | 937,10 Kč | Filters | semiautomatic-manual drain | 25 | without cartridges | Detail | ||
| MD1-F001-1/4 | 1 041,60 Kč | Filters | semiautomatic-manual drain | 25 | G1/4 | Detail | ||
| MD1-F001-1/4-1/4 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G1/4 | Detail | ||
| MD1-F001-1/4-1/8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G1/4 | Detail | ||
| MD1-F001-1/4-10 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G1/4 | Detail | ||
| MD1-F001-1/4-3/8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G1/4 | Detail | ||
| MD1-F001-1/4-6 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G1/4 | Detail | ||
| MD1-F001-1/4-8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G1/4 | Detail | ||
| MD1-F001-1/8 | 1 041,60 Kč | Filters | semiautomatic-manual drain | 25 | G1/8 | Detail | ||
| MD1-F001-1/8-1/4 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G1/8 | Detail | ||
| MD1-F001-1/8-1/8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G1/8 | Detail | ||
| MD1-F001-1/8-10 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G1/8 | Detail | ||
| MD1-F001-1/8-3/8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G1/8 | Detail | ||
| MD1-F001-1/8-6 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G1/8 | Detail | ||
| MD1-F001-1/8-8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G1/8 | Detail | ||
| Objednací kód | Základní cena bez DPH | Objednat | Type | Condensate drain | Filtering element (Length (μm)) | Ports / Connections | CAD | |
| MD1-F001-10 | na dotaz | Filters | semiautomatic-manual drain | 25 | tube Ø 10 mm | Detail | ||
| MD1-F001-10-1/4 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 10 mm | Detail | ||
| MD1-F001-10-1/8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 10 mm | Detail | ||
| MD1-F001-10-10 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 10 mm | Detail | ||
| MD1-F001-10-3/8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 10 mm | Detail | ||
| MD1-F001-10-6 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 10 mm | Detail | ||
| MD1-F001-10-8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 10 mm | Detail | ||
| MD1-F001-3/8 | 1 041,60 Kč | Filters | semiautomatic-manual drain | 25 | G3/8 | Detail | ||
| MD1-F001-3/8-1/4 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G3/8 | Detail | ||
| MD1-F001-3/8-1/8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G3/8 | Detail | ||
| MD1-F001-3/8-10 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G3/8 | Detail | ||
| MD1-F001-3/8-3/8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G3/8 | Detail | ||
| MD1-F001-3/8-6 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G3/8 | Detail | ||
| MD1-F001-3/8-8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | G3/8 | Detail | ||
| MD1-F001-6 | na dotaz | Filters | semiautomatic-manual drain | 25 | tube Ø 6mm | Detail | ||
| Objednací kód | Základní cena bez DPH | Objednat | Type | Condensate drain | Filtering element (Length (μm)) | Ports / Connections | CAD | |
| MD1-F001-6-1/4 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 6mm | Detail | ||
| MD1-F001-6-1/8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 6mm | Detail | ||
| MD1-F001-6-10 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 6mm | Detail | ||
| MD1-F001-6-3/8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 6mm | Detail | ||
| MD1-F001-6-6 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 6mm | Detail | ||
| MD1-F001-6-8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 6mm | Detail | ||
| MD1-F001-8 | na dotaz | Filters | semiautomatic-manual drain | 25 | tube Ø 8 mm | Detail | ||
| MD1-F001-8-1/4 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 8 mm | Detail | ||
| MD1-F001-8-1/8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 8 mm | Detail | ||
| MD1-F001-8-10 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 8 mm | Detail | ||
| MD1-F001-8-3/8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 8 mm | Detail | ||
| MD1-F001-8-6 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 8 mm | Detail | ||
| MD1-F001-8-8 | na dotaz | Filters with visual blockage indicator | semiautomatic-manual drain | 25 | tube Ø 8 mm | Detail | ||
| MD1-F051 | 1 189,78 Kč | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | without cartridges | Detail | ||
| MD1-F051-1/4 | 1 293,94 Kč | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/4 | Detail | ||
| Objednací kód | Základní cena bez DPH | Objednat | Type | Condensate drain | Filtering element (Length (μm)) | Ports / Connections | CAD | |
| MD1-F051-1/4-1/4 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/4 | Detail | ||
| MD1-F051-1/4-1/8 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/4 | Detail | ||
| MD1-F051-1/4-10 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/4 | Detail | ||
| MD1-F051-1/4-3/8 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/4 | Detail | ||
| MD1-F051-1/4-6 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/4 | Detail | ||
| MD1-F051-1/4-8 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/4 | Detail | ||
| MD1-F051-1/8 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/8 | Detail | ||
| MD1-F051-1/8-1/4 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/8 | Detail | ||
| MD1-F051-1/8-1/8 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/8 | Detail | ||
| MD1-F051-1/8-10 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/8 | Detail | ||
| MD1-F051-1/8-3/8 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/8 | Detail | ||
| MD1-F051-1/8-6 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/8 | Detail | ||
| MD1-F051-1/8-8 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | G1/8 | Detail | ||
| MD1-F051-10 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | tube Ø 10 mm | Detail | ||
| MD1-F051-10-1/4 | na dotaz | Filters with visual blockage indicator | automatic drain, protected depressurisation | 25 | tube Ø 10 mm | Detail | ||
| Uvedené ceny jsou základní při odběru od 1 ks. V případě většího množství Vám vypracujeme individuální cenovou nabídku. | ||||||||
