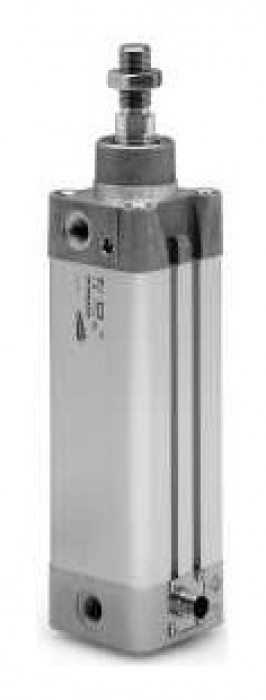

Ø 80

Popis produktu

Kód:	Ø 80
Výrobce:	Camozzi sro.
Ceny:	jsou uvedeny dole na stránce v tabulce variant produktu, nebo na poptávku přes formulář níže.
Termín dodání:	běžně cca 7 až 10 dnů od objednání, v závislosti na množství a aktuálních zásobách. Konkrétní termíny dodání ověřujeme a potvrzujeme emailem, individuálně dle zakázky. V případě nedostupnosti zboží lze objednávku zrušit. Více informací.

zavřít

3D modely

JMÉNO:
E-MAIL:
WWW:
TEXT:

Díl – objednací číslo: Ø 80 | Ø 80
Formát 3D:

Specifikujte prosím do pole níže konkrétní objednací kód, ke kterému žádáte zaslat 3D model nebo si jej stáhněte z tabulky dostupných variant v dolní části stránky produktu a to tlačítkem 3D nebo Stáhnout.

Objednací kód: Firma: Jméno: Příjmení: E-mail: Telefon: Text:

Vážení zákazníci, informujeme vás v souladu s nařízením EU, že poskytnuté informace nejsou námi dále nijak používány ani uschovány a slouží pouze pro vyřízení této žádosti. Více informací ZDE.

zavřít

Ke stažení

Catalogue

Detail zavřít

Zruš filtr
Objednací kód	Základní cena bez DPH	Objednat	Version	Operation	Diameter (Length (mm))	Type	Magnetic	Stroke (Length (mm))	Rod seal		CAD
6PF3P080A0050	23 576,84 Kč		standard	double-acting	80	Profile cylinders	Yes	50	NBR	Detail	3D
6PF3P080A0050G	na dotaz	Poptat cenu	with brass rod scraper	double-acting	80	Profile cylinders	Yes	50	NBR	Detail	3D
6PF3P080A0050L	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	50	without rod seal	Detail	3D
6PF3P080A0050P	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	50	PU	Detail	3D
6PF3P080A0050V	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	50	FKM	Detail	3D
6PF3P080A0100	24 394,16 Kč		standard	double-acting	80	Profile cylinders	Yes	100	NBR	Detail	3D
6PF3P080A0100G	na dotaz	Poptat cenu	with brass rod scraper	double-acting	80	Profile cylinders	Yes	100	NBR	Detail	3D
6PF3P080A0100L	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	100	without rod seal	Detail	3D
6PF3P080A0100P	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	100	PU	Detail	3D
6PF3P080A0100V	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	100	FKM	Detail	3D
6PF3P080A0150	25 210,92 Kč		standard	double-acting	80	Profile cylinders	Yes	150	NBR	Detail	3D
6PF3P080A0150G	na dotaz	Poptat cenu	with brass rod scraper	double-acting	80	Profile cylinders	Yes	150	NBR	Detail	3D
6PF3P080A0150L	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	150	without rod seal	Detail	3D
6PF3P080A0150P	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	150	PU	Detail	3D
6PF3P080A0150V	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	150	FKM	Detail	3D
Objednací kód	Základní cena bez DPH	Objednat	Version	Operation	Diameter (Length (mm))	Type	Magnetic	Stroke (Length (mm))	Rod seal		CAD
6PF3P080A0200	26 028,24 Kč		standard	double-acting	80	Profile cylinders	Yes	200	NBR	Detail	3D
6PF3P080A0200G	na dotaz	Poptat cenu	with brass rod scraper	double-acting	80	Profile cylinders	Yes	200	NBR	Detail	3D
6PF3P080A0200L	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	200	without rod seal	Detail	3D
6PF3P080A0200P	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	200	PU	Detail	3D
6PF3P080A0200V	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	200	FKM	Detail	3D
6PF3P080A0250	26 845,56 Kč		standard	double-acting	80	Profile cylinders	Yes	250	NBR	Detail	3D
6PF3P080A0250G	na dotaz	Poptat cenu	with brass rod scraper	double-acting	80	Profile cylinders	Yes	250	NBR	Detail	3D
6PF3P080A0250L	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	250	without rod seal	Detail	3D
6PF3P080A0250P	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	250	PU	Detail	3D
6PF3P080A0250V	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	250	FKM	Detail	3D
6PF3P080A0300	27 662,88 Kč		standard	double-acting	80	Profile cylinders	Yes	300	NBR	Detail	3D
6PF3P080A0300G	27 866,72 Kč		with brass rod scraper	double-acting	80	Profile cylinders	Yes	300	NBR	Detail	3D
6PF3P080A0300L	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	300	without rod seal	Detail	3D
6PF3P080A0300P	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	300	PU	Detail	3D
6PF3P080A0300V	27 978,72 Kč		standard	double-acting	80	Profile cylinders	Yes	300	FKM	Detail	3D
Objednací kód	Základní cena bez DPH	Objednat	Version	Operation	Diameter (Length (mm))	Type	Magnetic	Stroke (Length (mm))	Rod seal		CAD
6PF3P080A0350	28 479,92 Kč		standard	double-acting	80	Profile cylinders	Yes	350	NBR	Detail	3D
6PF3P080A0350G	na dotaz	Poptat cenu	with brass rod scraper	double-acting	80	Profile cylinders	Yes	350	NBR	Detail	3D
6PF3P080A0350L	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	350	without rod seal	Detail	3D
6PF3P080A0350P	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	350	PU	Detail	3D
6PF3P080A0350V	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	350	FKM	Detail	3D
6PF3P080A0400	29 297,52 Kč		standard	double-acting	80	Profile cylinders	Yes	400	NBR	Detail	3D
6PF3P080A0400G	na dotaz	Poptat cenu	with brass rod scraper	double-acting	80	Profile cylinders	Yes	400	NBR	Detail	3D
6PF3P080A0400L	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	400	without rod seal	Detail	3D
6PF3P080A0400P	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	400	PU	Detail	3D
6PF3P080A0400V	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	400	FKM	Detail	3D
6PF3P080A0450	30 114,56 Kč		standard	double-acting	80	Profile cylinders	Yes	450	NBR	Detail	3D
6PF3P080A0450G	na dotaz	Poptat cenu	with brass rod scraper	double-acting	80	Profile cylinders	Yes	450	NBR	Detail	3D
6PF3P080A0450L	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	450	without rod seal	Detail	3D
6PF3P080A0450P	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	450	PU	Detail	3D
6PF3P080A0450V	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	450	FKM	Detail	3D
Objednací kód	Základní cena bez DPH	Objednat	Version	Operation	Diameter (Length (mm))	Type	Magnetic	Stroke (Length (mm))	Rod seal		CAD
6PF3P080A0500	30 931,04 Kč		standard	double-acting	80	Profile cylinders	Yes	500	NBR	Detail	3D
6PF3P080A0500G	na dotaz	Poptat cenu	with brass rod scraper	double-acting	80	Profile cylinders	Yes	500	NBR	Detail	3D
6PF3P080A0500L	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	500	without rod seal	Detail	3D
6PF3P080A0500P	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	500	PU	Detail	3D
6PF3P080A0500V	na dotaz	Poptat cenu	standard	double-acting	80	Profile cylinders	Yes	500	FKM	Detail	3D
Uvedené ceny jsou základní při odběru od 1 ks. V případě většího množství Vám vypracujeme individuální cenovou nabídku.
