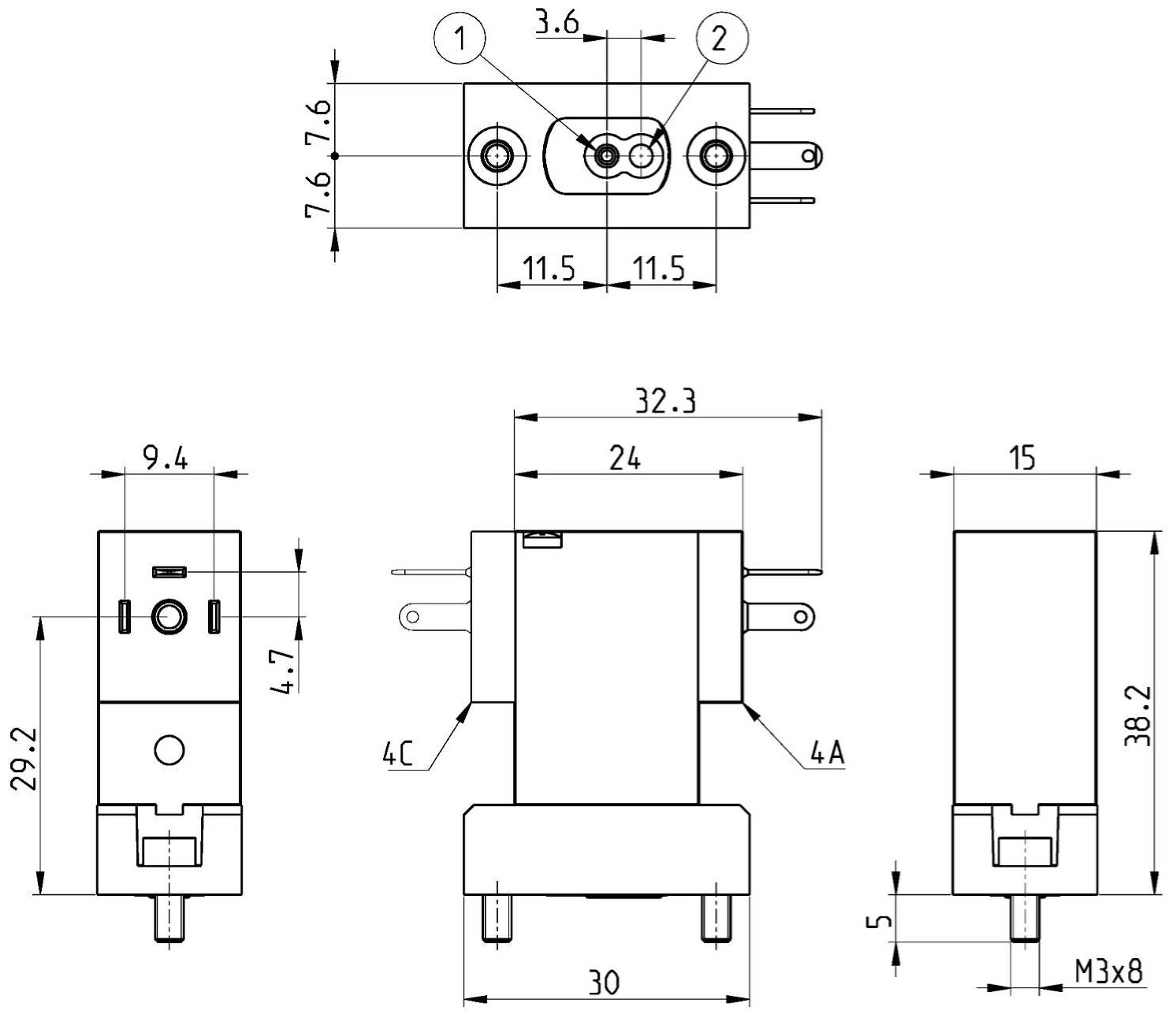

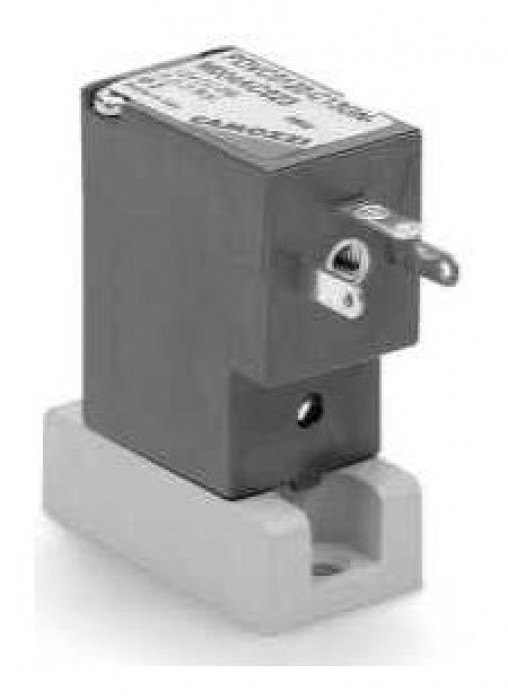

2/2 NC solenoid valve, industrial standard (9.4 mm)
Popis produktu
| Kód: | 2/2 NC solenoid valve, industrial standard (9.4 mm) |
|---|---|
| Výrobce: | Camozzi sro. |
| Ceny: | jsou uvedeny dole na stránce v tabulce variant produktu, nebo na poptávku přes formulář níže. |
| Termín dodání: | běžně cca 7 až 10 dnů od objednání, v závislosti na množství a aktuálních zásobách. Konkrétní termíny dodání ověřujeme a potvrzujeme emailem, individuálně dle zakázky. V případě nedostupnosti zboží lze objednávku zrušit. Více informací. |
zavřít
zavřít
Ke stažení
Catalogue
Detail zavřít
| Objednací kód | Základní cena bez DPH | Objednat | Type | Nominal diameter (Length (mm)) | Electrical connection | Seal materials | CAD | |
|---|---|---|---|---|---|---|---|---|
| PDVC0122-A73GN-M004AC017 | na dotaz | Directly operated solenoid valves | 0,8 | DIN 43650 connector (C Form), pitch 9.4 mm | FKM | Detail | ||
| PDVC0122-A73GN-M004AC020 | na dotaz | Directly operated solenoid valves | 0,8 | DIN 43650 connector (C Form), pitch 9.4 mm | FKM | Detail | ||
| PDVC0122-A73GN-M004AC023 | na dotaz | Directly operated solenoid valves | 0,8 | DIN 43650 connector (C Form), pitch 9.4 mm | FKM | Detail | ||
| PDVC0122-A73GN-M004CC017 | na dotaz | Directly operated solenoid valves | 0,8 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | FKM | Detail | ||
| PDVC0122-A73GN-M004CC020 | na dotaz | Directly operated solenoid valves | 0,8 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | FKM | Detail | ||
| PDVC0122-A73GN-M004CC023 | na dotaz | Directly operated solenoid valves | 0,8 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | FKM | Detail | ||
| PDVC0122-A74GN-M004AC017 | na dotaz | Directly operated solenoid valves | 0,8 | DIN 43650 connector (C Form), pitch 9.4 mm | EPDM | Detail | ||
| PDVC0122-A74GN-M004AC020 | na dotaz | Directly operated solenoid valves | 0,8 | DIN 43650 connector (C Form), pitch 9.4 mm | EPDM | Detail | ||
| PDVC0122-A74GN-M004AC023 | na dotaz | Directly operated solenoid valves | 0,8 | DIN 43650 connector (C Form), pitch 9.4 mm | EPDM | Detail | ||
| PDVC0122-A74GN-M004CC017 | na dotaz | Directly operated solenoid valves | 0,8 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | EPDM | Detail | ||
| PDVC0122-A74GN-M004CC020 | na dotaz | Directly operated solenoid valves | 0,8 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | EPDM | Detail | ||
| PDVC0122-A74GN-M004CC023 | na dotaz | Directly operated solenoid valves | 0,8 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | EPDM | Detail | ||
| PDVC0122-B33GN-M004AC017 | na dotaz | Directly operated solenoid valves | 1,2 | DIN 43650 connector (C Form), pitch 9.4 mm | FKM | Detail | ||
| PDVC0122-B33GN-M004AC020 | na dotaz | Directly operated solenoid valves | 1,2 | DIN 43650 connector (C Form), pitch 9.4 mm | FKM | Detail | ||
| PDVC0122-B33GN-M004AC023 | na dotaz | Directly operated solenoid valves | 1,2 | DIN 43650 connector (C Form), pitch 9.4 mm | FKM | Detail | ||
| Objednací kód | Základní cena bez DPH | Objednat | Type | Nominal diameter (Length (mm)) | Electrical connection | Seal materials | CAD | |
| PDVC0122-B33GN-M004CC017 | na dotaz | Directly operated solenoid valves | 1,2 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | FKM | Detail | ||
| PDVC0122-B33GN-M004CC020 | na dotaz | Directly operated solenoid valves | 1,2 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | FKM | Detail | ||
| PDVC0122-B33GN-M004CC023 | na dotaz | Directly operated solenoid valves | 1,2 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | FKM | Detail | ||
| PDVC0122-B34GN-M004AC017 | na dotaz | Directly operated solenoid valves | 1,2 | DIN 43650 connector (C Form), pitch 9.4 mm | EPDM | Detail | ||
| PDVC0122-B34GN-M004AC020 | na dotaz | Directly operated solenoid valves | 1,2 | DIN 43650 connector (C Form), pitch 9.4 mm | EPDM | Detail | ||
| PDVC0122-B34GN-M004AC023 | na dotaz | Directly operated solenoid valves | 1,2 | DIN 43650 connector (C Form), pitch 9.4 mm | EPDM | Detail | ||
| PDVC0122-B34GN-M004CC017 | na dotaz | Directly operated solenoid valves | 1,2 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | EPDM | Detail | ||
| PDVC0122-B34GN-M004CC020 | na dotaz | Directly operated solenoid valves | 1,2 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | EPDM | Detail | ||
| PDVC0122-B34GN-M004CC023 | na dotaz | Directly operated solenoid valves | 1,2 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | EPDM | Detail | ||
| PDVC0122-B73GN-M004AC017 | na dotaz | Directly operated solenoid valves | 1,6 | DIN 43650 connector (C Form), pitch 9.4 mm | FKM | Detail | ||
| PDVC0122-B73GN-M004AC020 | na dotaz | Directly operated solenoid valves | 1,6 | DIN 43650 connector (C Form), pitch 9.4 mm | FKM | Detail | ||
| PDVC0122-B73GN-M004AC023 | na dotaz | Directly operated solenoid valves | 1,6 | DIN 43650 connector (C Form), pitch 9.4 mm | FKM | Detail | ||
| PDVC0122-B73GN-M004CC017 | na dotaz | Directly operated solenoid valves | 1,6 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | FKM | Detail | ||
| PDVC0122-B73GN-M004CC020 | na dotaz | Directly operated solenoid valves | 1,6 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | FKM | Detail | ||
| PDVC0122-B73GN-M004CC023 | na dotaz | Directly operated solenoid valves | 1,6 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | FKM | Detail | ||
| Objednací kód | Základní cena bez DPH | Objednat | Type | Nominal diameter (Length (mm)) | Electrical connection | Seal materials | CAD | |
| PDVC0122-B74GN-M004AC017 | na dotaz | Directly operated solenoid valves | 1,6 | DIN 43650 connector (C Form), pitch 9.4 mm | EPDM | Detail | ||
| PDVC0122-B74GN-M004AC020 | na dotaz | Directly operated solenoid valves | 1,6 | DIN 43650 connector (C Form), pitch 9.4 mm | EPDM | Detail | ||
| PDVC0122-B74GN-M004AC023 | na dotaz | Directly operated solenoid valves | 1,6 | DIN 43650 connector (C Form), pitch 9.4 mm | EPDM | Detail | ||
| PDVC0122-B74GN-M004CC017 | na dotaz | Directly operated solenoid valves | 1,6 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | EPDM | Detail | ||
| PDVC0122-B74GN-M004CC020 | na dotaz | Directly operated solenoid valves | 1,6 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | EPDM | Detail | ||
| PDVC0122-B74GN-M004CC023 | na dotaz | Directly operated solenoid valves | 1,6 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | EPDM | Detail | ||
| PDVC0122-C13GN-M004AC017 | na dotaz | Directly operated solenoid valves | 2 | DIN 43650 connector (C Form), pitch 9.4 mm | FKM | Detail | ||
| PDVC0122-C13GN-M004AC020 | 2 203,32 Kč | Directly operated solenoid valves | 2 | DIN 43650 connector (C Form), pitch 9.4 mm | FKM | Detail | ||
| PDVC0122-C13GN-M004AC023 | na dotaz | Directly operated solenoid valves | 2 | DIN 43650 connector (C Form), pitch 9.4 mm | FKM | Detail | ||
| PDVC0122-C13GN-M004CC017 | na dotaz | Directly operated solenoid valves | 2 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | FKM | Detail | ||
| PDVC0122-C13GN-M004CC020 | na dotaz | Directly operated solenoid valves | 2 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | FKM | Detail | ||
| PDVC0122-C13GN-M004CC023 | na dotaz | Directly operated solenoid valves | 2 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | FKM | Detail | ||
| PDVC0122-C14GN-M004AC017 | na dotaz | Directly operated solenoid valves | 2 | DIN 43650 connector (C Form), pitch 9.4 mm | EPDM | Detail | ||
| PDVC0122-C14GN-M004AC020 | na dotaz | Directly operated solenoid valves | 2 | DIN 43650 connector (C Form), pitch 9.4 mm | EPDM | Detail | ||
| PDVC0122-C14GN-M004AC023 | na dotaz | Directly operated solenoid valves | 2 | DIN 43650 connector (C Form), pitch 9.4 mm | EPDM | Detail | ||
| Objednací kód | Základní cena bez DPH | Objednat | Type | Nominal diameter (Length (mm)) | Electrical connection | Seal materials | CAD | |
| PDVC0122-C14GN-M004CC017 | na dotaz | Directly operated solenoid valves | 2 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | EPDM | Detail | ||
| PDVC0122-C14GN-M004CC020 | na dotaz | Directly operated solenoid valves | 2 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | EPDM | Detail | ||
| PDVC0122-C14GN-M004CC023 | na dotaz | Directly operated solenoid valves | 2 | DIN 43650 connector (C Form), pitch 9.4 mm with coil rotated 180° | EPDM | Detail | ||
| Uvedené ceny jsou základní při odběru od 1 ks. V případě většího množství Vám vypracujeme individuální cenovou nabídku. | ||||||||
