Pneumatický upínač vertikální

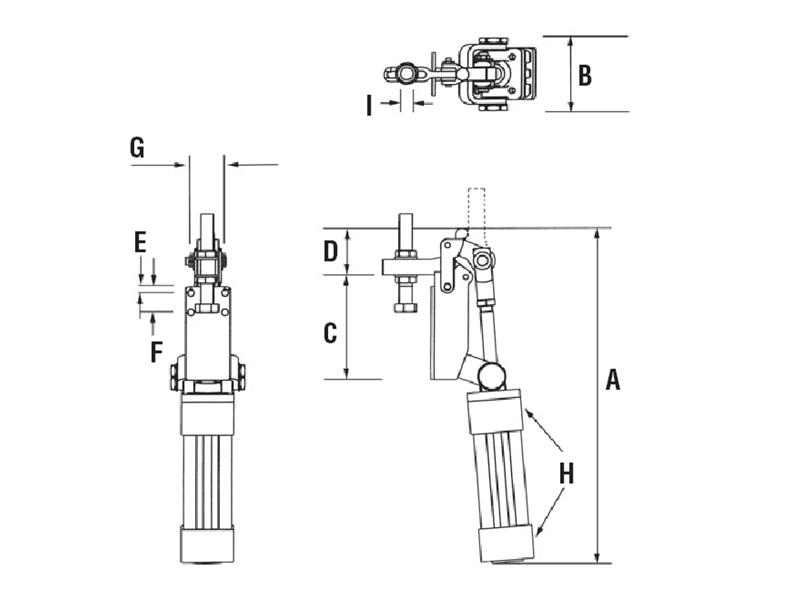

| Part No. |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
I (mm) |
Holding Force |
Weight |
| VA700CX |
437 |
87 |
123 |
75 |
25 |
85 |
50 |
M12×100 |
700daN |
4,50Kg |
| VA1200CX |
486 |
87 |
146 |
85 |
100 |
60 |
60 |
M12×100 |
1200daN |
5,75Kg |
| VA2400CX |
586 |
87 |
143 |
110 |
100 |
75 |
75 |
M16×150 |
2400daN |
8,65Kg |
VA700CX
VA1200CX
VA2400CX
❱
