Pneumatický upínač otočný
Pneumatic
Swing Clamps

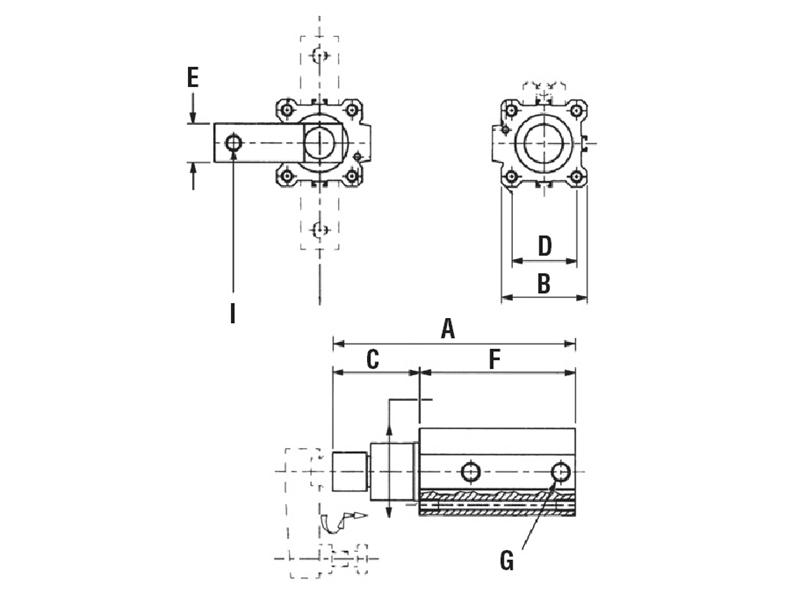

| Part No. |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
I (mm) |
Holding Force |
| PNS25–10A |
105,5 |
40 |
32,5 |
28 |
16 |
73 |
2×M5 |
M6×1,0 |
20daN |
| PNS25–10C |
105.5 |
40 |
32.5 |
28 |
16 |
73 |
2×M5 |
M6×1.0 |
20daN |
| PNS32–10A |
127 |
45 |
45.5 |
34 |
22 |
81.5 |
2×G1/8 |
M8×1.25 |
60daN |
| PNS32–10C |
127 |
45 |
45.5 |
34 |
22 |
81.5 |
2×G1/8 |
M8×1.25 |
60daN |
| PNS40–20A |
148 |
52 |
63 |
40 |
22 |
85 |
2×G1/8 |
M8×1.25 |
105daN |
| PNS40–20C |
148 |
52 |
63 |
40 |
22 |
85 |
2×G1/8 |
M8×1.25 |
105daN |
| PNS50–20A |
169.5 |
64 |
73 |
50 |
22 |
96.5 |
2×G1/4 |
M10X1.5 |
160daN |
| PNS50–20C |
169.5 |
64 |
73 |
50 |
22 |
96.5 |
2×G1/4 |
M10X1.5 |
160daN |
| PNS63–20A |
172.5 |
77 |
72.5 |
60 |
22 |
100 |
2×G1/4 |
M10X1.5 |
280daN |
| PNS63–20C |
172.5 |
77 |
72.5 |
60 |
22 |
100 |
2×G1/4 |
M10X1.5 |
280daN |
PNS25
PNS32
PNS40
PNS50
PNS63
❱
