Svislá patka, příprava pro vlastní prodloužení

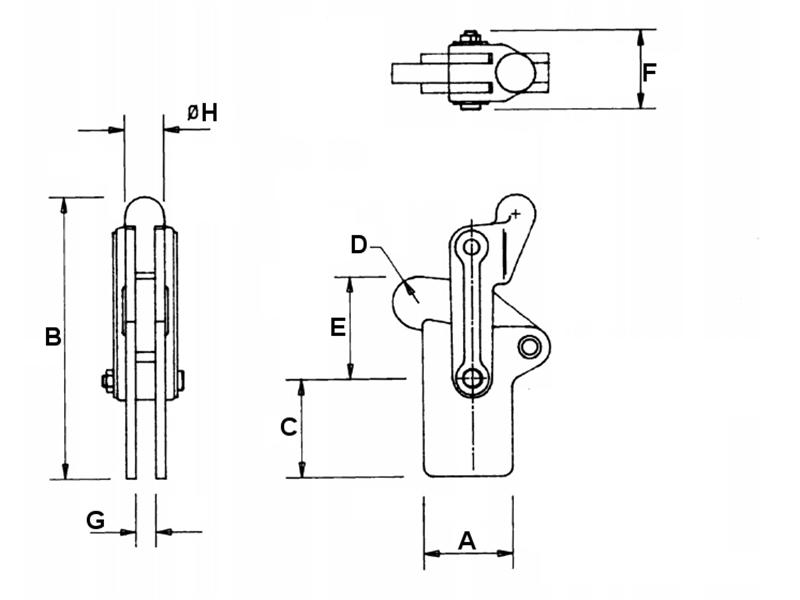

| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Holding Force | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| VA300T | 27 | 86 | 30 | R10 | 31 | 26 | 6 | 12 | 300daN | 0.15Kg |
| VA700T | 45 | 144 | 50 | R14 | 52 | 43 | 10 | 20 | 700daN | 0.80Kg |
| VA1200T | 50 | 177 | 63 | R19 | 73 | 48 | 12 | 22 | 1200daN | 1.45Kg |
| VA2400T | 63 | 220 | 76 | R22 | 91 | 62 | 16 | 30 | 2400daN | 2.90Kg |
