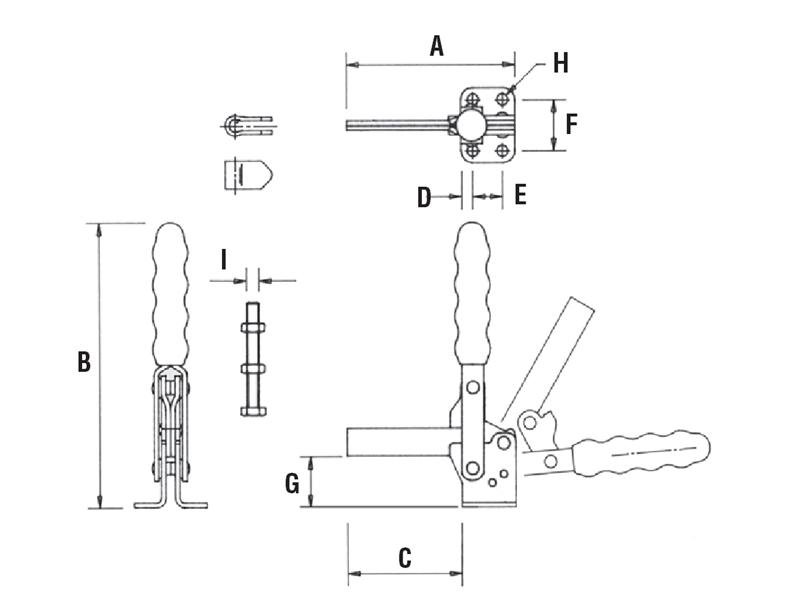

Vodorovná patka, plné přídržné rameno
Vertical
Clamps
| Part No. |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
Holding Force |
Weight |
| V250/2A |
112 |
175 |
77 |
8 |
19 |
32 |
32 |
7,1 |
M8×60 |
250daN |
0,38 Kg |
| V250/2AL |
122 |
175 |
77 |
8 |
19 |
32 |
32 |
7,1 |
M8×60 |
250daN |
0,38 Kg |
| V300/2A |
143 |
186 |
100 |
9 |
25 |
34,5 |
34 |
8 |
M8×60 |
300daN |
0,48 Kg |
| V350/2A |
149 |
220 |
98 |
9 |
32 |
45 |
43 |
8,3 |
M10X80 |
350daN |
0,80 Kg |
| V450/2A |
180 |
228 |
127 |
10 |
32 |
45 |
51 |
8,7 |
M12×100 |
450daN |
1,25 Kg |
| V550/2A |
236 |
312 |
159 |
12,5 |
51 |
70 |
82 |
12,3 |
M16×150 |
550daN |
2,20 Kg |
V250/2A
V250/2AL
V300/2A
V350/2A
V450/2A
V550/2A
❱
