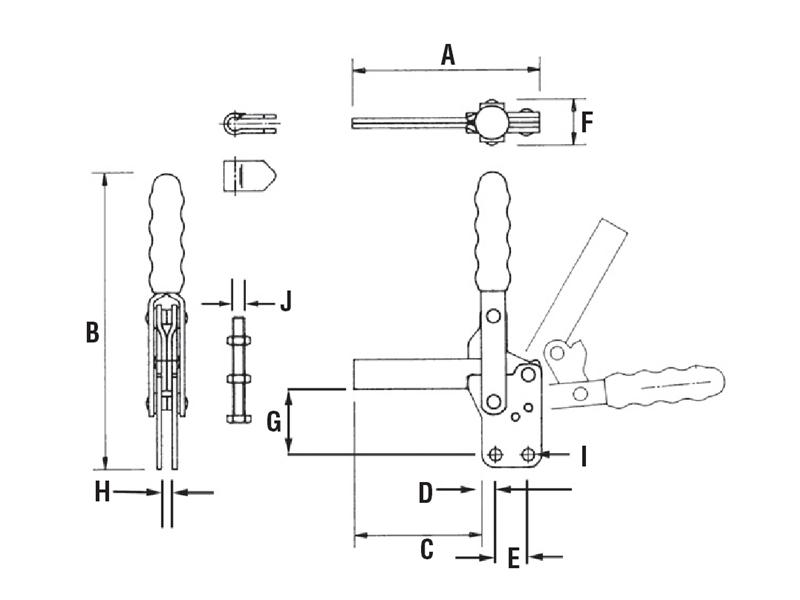

Svislá patka, plné přídržné rameno
Vertical
Clamps
| Part No. |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
I (mm) |
J (mm) |
Holding Force |
Weight |
| V250/1A |
112 |
190 |
77 |
8 |
19 |
23 |
39 |
6 |
7,1 |
M8×60 |
250daN |
0,38 Kg |
| V250/1AL |
122 |
190 |
87 |
8 |
19 |
23 |
39 |
6 |
7,1 |
M8×60 |
250daN |
0,38 Kg |
| V300/1A |
143 |
202 |
100 |
9 |
25 |
25 |
42 |
6,5 |
8 |
M8×60 |
300daN |
0,48 Kg |
| V350/1A |
149 |
240 |
98 |
9 |
32 |
30 |
54 |
8 |
8,3 |
M10×60 |
350daN |
0,80 Kg |
| V450/1A |
180 |
246 |
127 |
10 |
32 |
37 |
59 |
10 |
8,7 |
M12×100 |
450daN |
1,25 Kg |
| V550/1A |
235 |
345 |
159 |
12,5 |
51 |
38 |
102 |
10 |
12,3 |
M16×150 |
550daN |
2,20 Kg |
V250/1A
V250/1AL
V300/1A
V350/1A
V450/1A
V550/1A
❱
