Vertikální třmenové upínače
Horizontal &
Vertical Latch Clamps

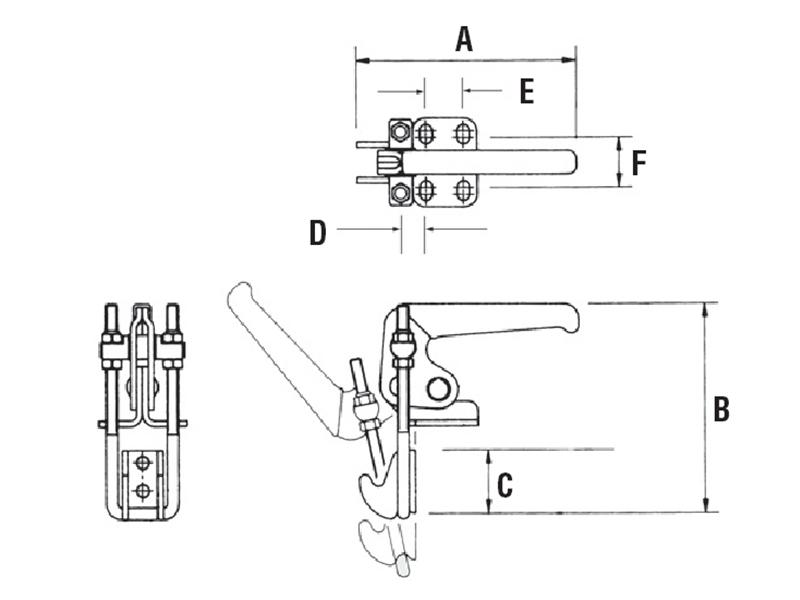

| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Holding Force | Weight |
|---|---|---|---|---|---|---|---|---|
| LU200V | 76 | 90 | 23 | 5.2 | 13 | 19 | 200daN | 0.05Kg |
| LU400V | 115 | 123 | 32 | 6.5 | 19 | 25 | 400daN | 0.25Kg |
| LU700V | 152 | 164 | 40 | 8.5 | 32 | 36 | 700daN | 0.70Kg |
