Horizontální třmenové upínače
Horizontal &
Vertical Latch Clamps

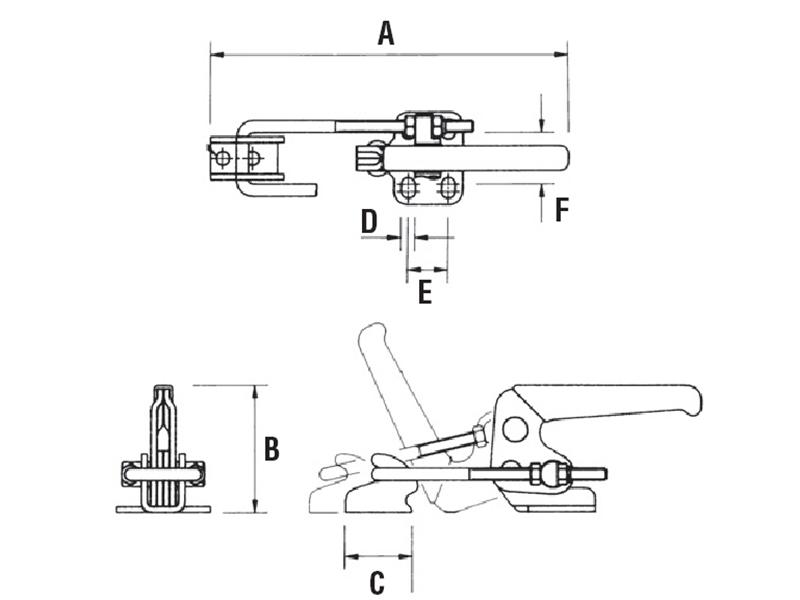

| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Holding Force | Weight |
|---|---|---|---|---|---|---|---|---|
| LU200H | 135 | 42 | 23 | 5.2 | 13 | 19 | 200daN | 0.05Kg |
| LU400H | 185 | 63 | 32 | 6.5 | 19 | 25 | 400daN | 0.25Kg |
| LU700H | 250 | 84 | 40 | 8.5 | 32 | 36 | 700daN | 0.70Kg |
| LU2000H | 320 | 115 | 65 | 10.3 | N/A | 50 | 2000daN | 1.40Kg |
| LU4000H | 395 | 132 | 78 | 12.4 | N/A | 56 | 4000daN | 2.60Kg |
| LU323 | 110 | 30 | 20 | 4.3 | 15.9 | 19.1 | 170daN | 0.16Kg |
| LU331 | 170 | 44.4 | 25.4 | 6.3 | 19 | 31.8 | 320daN | 0.23Kg |
| LU341 | 243 | 75 | 38.1 | 8.5 | 41.3 | 38.1 | 900daN | 0.68Kg |
| LU375 | 280 | 104 | 57.2 | 10.3 | 57.2 | 57.2 | 1800daN | 1.80Kg |
