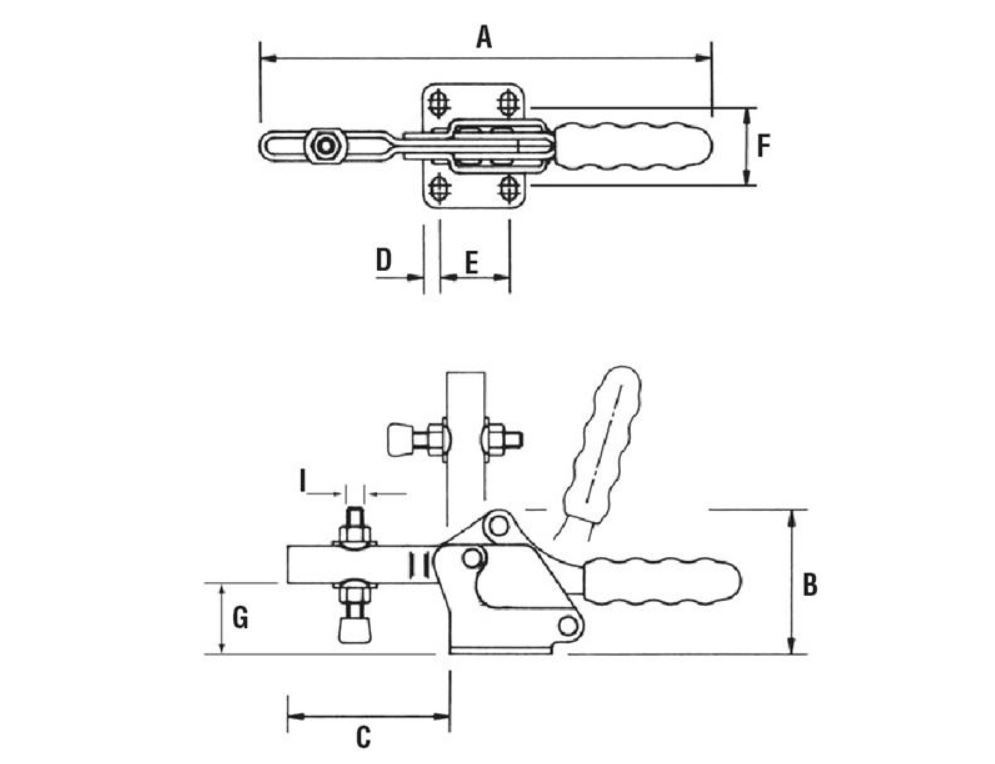

Vodorovná patka, nastavitelný přítlačný šroub
Horizontal
Clamps
| Part No. |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
| H50/2B |
70 |
22 |
26 |
6,5 |
16 |
16 |
11,5 |
| H50/2BSS |
70 |
22 |
26 |
6,5 |
16 |
16 |
11,5 |
| H50/2BL |
70 |
12 |
24 |
25 |
26 |
5,2 |
4,2 |
| H50/2BR |
70 |
12 |
24 |
25 |
26 |
5,2 |
4,2 |
| H75/2B |
116 |
36 |
37 |
5,7 |
13,5 |
16,8 |
19 |
| H75/2BSS |
116 |
36 |
37 |
5,7 |
13,5 |
16,8 |
19 |
| H100/2B |
110 |
32 |
38 |
5,5 |
15 |
18 |
22 |
| H150/2B |
170 |
53 |
61 |
6 |
26 |
28 |
25 |
| H150/2BSS |
170 |
53 |
61 |
6 |
26 |
28 |
25 |
| H250/2B |
224 |
67 |
79 |
8 |
26 |
31 |
34 |
| H350/2B |
274 |
91 |
108 |
9 |
41,2 |
43 |
59 |
| H450/2B |
305 |
110 |
128 |
13 |
41,2 |
41,3 |
59 |
| H700 |
270 |
84 |
78 |
12 |
57,2 |
31,8 |
45 |
H50/2B
H50/2BSS
H50/2BL
H50/2BR
H75/2B
H75/2BSS
H100/2B
H150/2B
H150/2BSS
H250/2B
H350/2B
H450/2B
H700
❱
