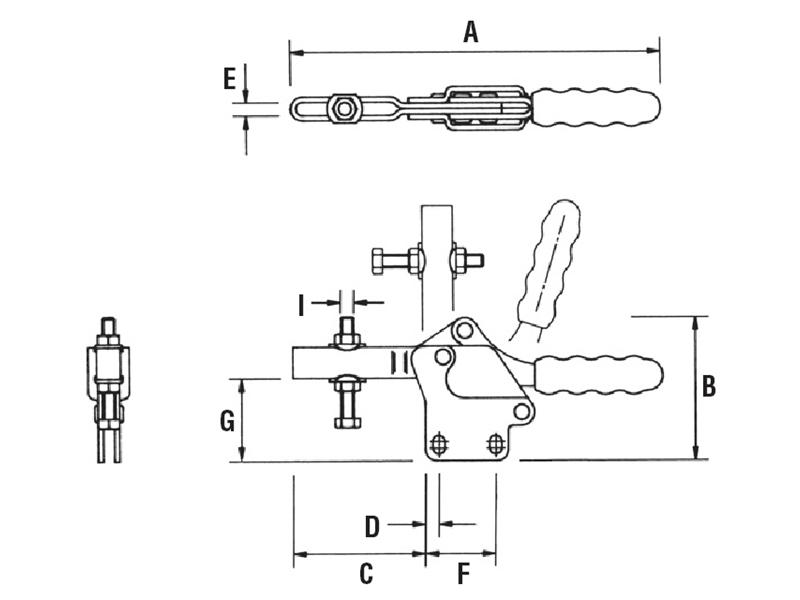

Svislá patka, nastavitelný přítlačný šroub
| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
|---|---|---|---|---|---|---|---|
| H50/1B | 70 | 25 | 26 | 6,5 | 5,2 | 16 | 14 |
| H75/1B | 116 | 45 | 37 | 5,7 | 5,8 | 25 | 22 |
| H75/1BSS | 116 | 45 | 37 | 5,7 | 5,8 | 25 | 22 |
| H150/1B | 170 | 65 | 61 | 6 | 6,2 | 26 | 38 |
| H150/1BSS | 170 | 65 | 61 | 6 | 6,2 | 26 | 38 |
| H250/1B | 224 | 82 | 92 | 8 | 6 | 42 | 39 |
| H350/1B | 274 | 108 | 108 | 9 | 11,4 | 59 | 54 |
| H450/1B | 305 | 130 | 128 | 13 | 13,2 | 66 | 66 |
| H100/1B | 110 | – | 26 | 37 | 38 | 5 | 5 |
| H200/1B | 140 | – | 40 | 49 | 45 | 6 | 7 |
| H300/1B | 195 | – | 57 | 62 | 68 | 8 | 6,7 |
