Vyosený tlačný upínač – MAGNA FORCE

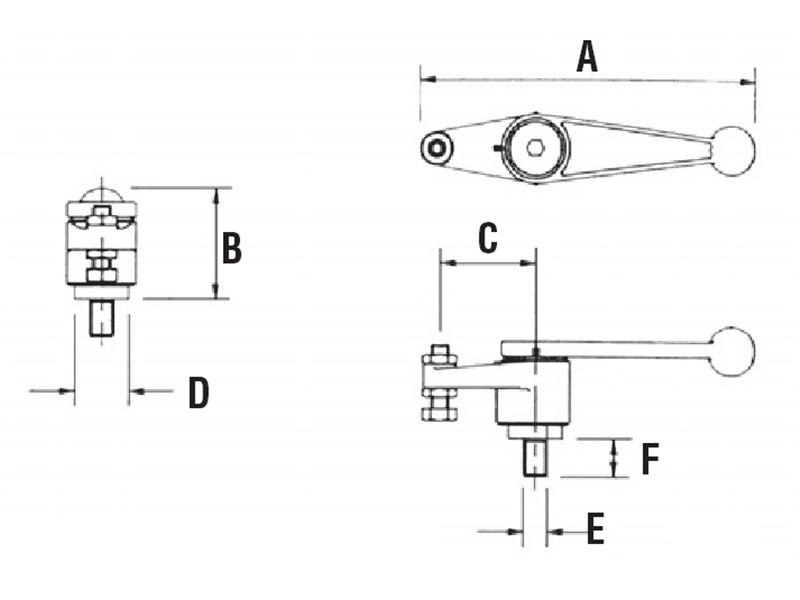

| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Holding Force | Weight |
|---|---|---|---|---|---|---|---|---|---|
| CS300 | 111 | 38 | 32 | 18 | M8×1.25 | 10 | – | 300daN | 0.20Kg |
| CS300A | 111 | 38 | 32 | 18 | M8×1.25 | 10 | – | 300daN | 0.20Kg |
| CS800 | 150 | 54 | 42 | 28 | – | 7.5 | 6.3 | 800daN | 0.40Kg |
| CS800A | 150 | 54 | 42 | 28 | – | 7.5 | 6.3 | 800daN | 0.40Kg |
| CS1200 | 200 | 77 | 55 | 37 | – | 10 | 8.3 | 1200daN | 0.90Kg |
| CS1200A | 200 | 77 | 55 | 37 | – | 10 | 8.3 | 1200daN | 0.90Kg |
