Tlačný upínač – MAGNA FORCE

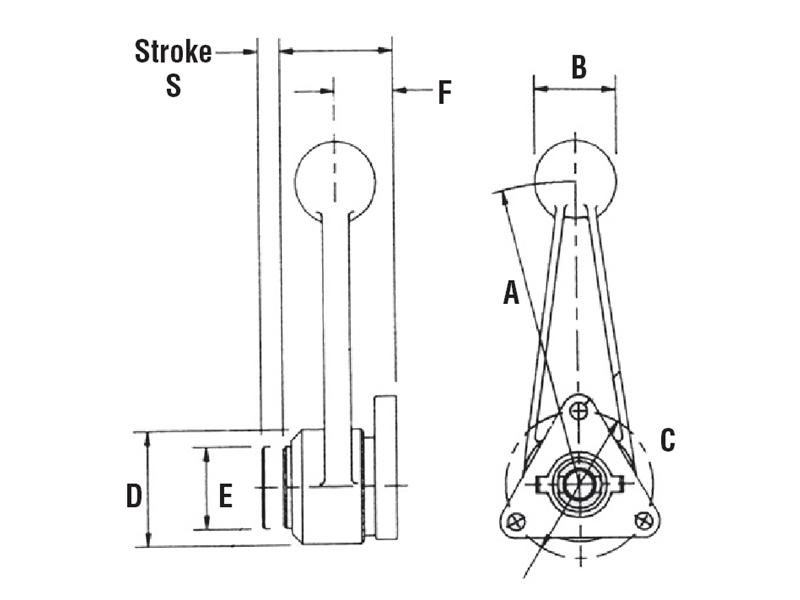

| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Holding Force | Weight |
|---|---|---|---|---|---|---|---|
| CR4000 | R110 | 30 | 42 | 30 | 32 | 750daN | 0.55Kg |
| CR4000A | R110 | 30 | 42 | 30 | 32 | 750daN | 0.55Kg |
| CR5000 | R140 | 40 | 56 | 42 | 28 | 5000daN | 1.3Kg |
| CR5000A | R140 | 40 | 56 | 42 | 28 | 5000daN | 1.3Kg |
| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Holding Force | Weight |
|---|---|---|---|---|---|---|---|
| CR4000 | R110 | 30 | 42 | 30 | 32 | 750daN | 0.55Kg |
| CR4000A | R110 | 30 | 42 | 30 | 32 | 750daN | 0.55Kg |
| CR5000 | R140 | 40 | 56 | 42 | 28 | 5000daN | 1.3Kg |
| CR5000A | R140 | 40 | 56 | 42 | 28 | 5000daN | 1.3Kg |
