Excentrické upínače – MAGNA FORCE

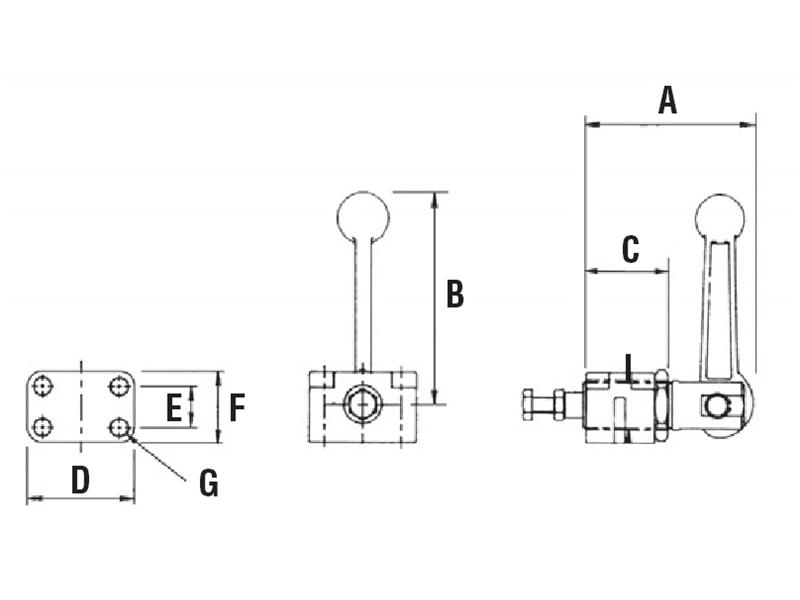

| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | I (mm) | Holding Force | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| CP1500 | 64 | 77 | 32 | 39 | 15 | 26 | 6.3 | M6×19 | 1500daN | 0.27Kg |
| CP2000 | 84 | 103 | 41 | 50 | 20 | 34 | 8.3 | M8×25 | 2000daN | 0.60Kg |
| CP3000 | 86 | 140 | 54 | 68 | 25 | 43 | 10.3 | M12×35 | 3000daN | 1.50Kg |
